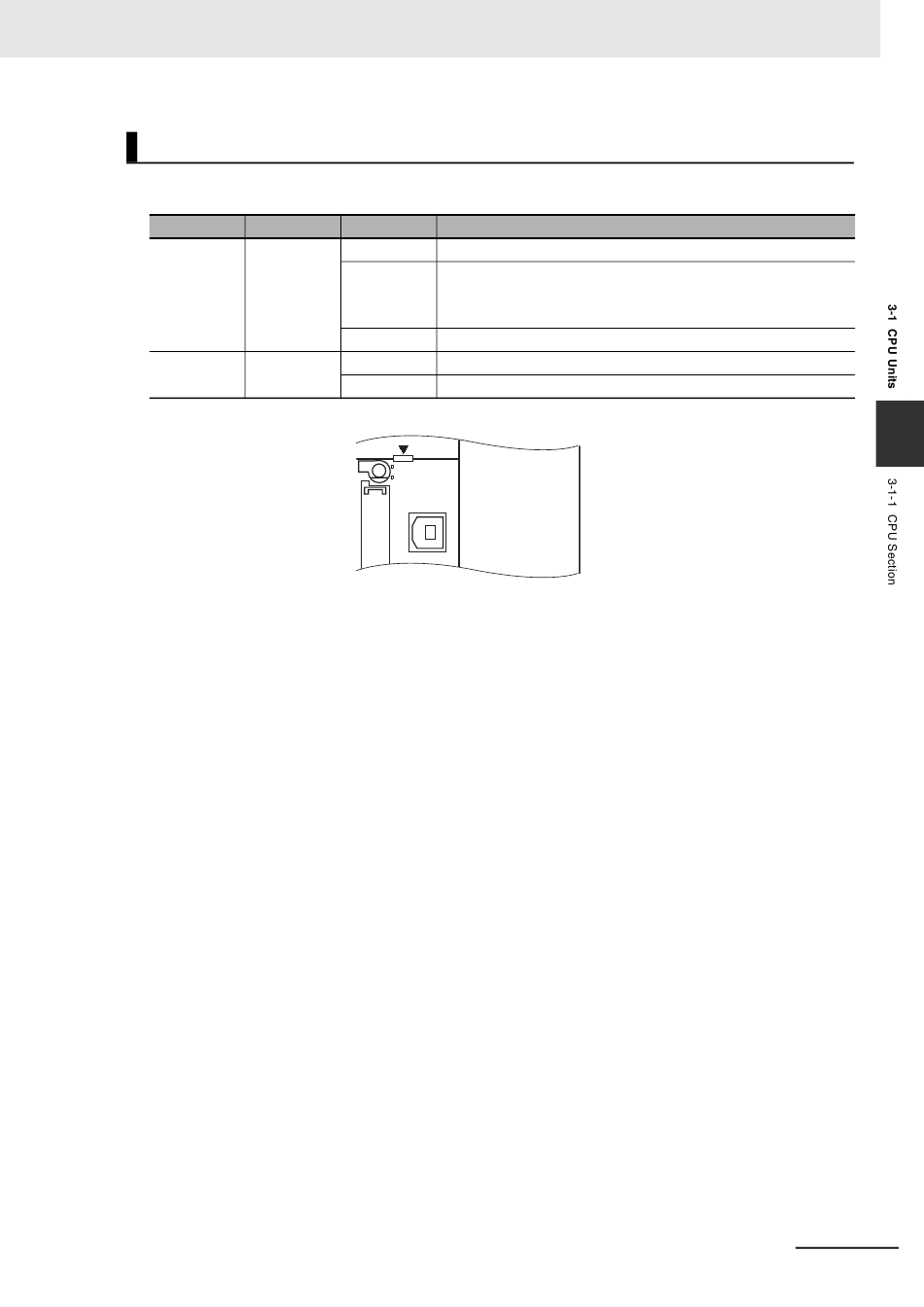

Memory Card Indicators

The status of a Memory Card mounted in the CJ2 CPU Unit can be checked with the indicators in the
middle of the front panel of the Unit. The following table describes these indicators.
Indicator
MCPWR Green
BUSY Yellow
CJ2 CPU Unit Hardware User's Manual
Color Status
Lit Power is being supplied to the Memory Card.
Flashing Flashes once: Simple backup read, write, or verify normal
Flashes five times: Simple backup read malfunction
Flashes continuously: Simple backup write or verify malfunction
Not lit Power is not being supplied to the Memory Card.
Flashing Memory Card is being accessed.
Not lit Memory Card is not being accessed.
OPEN
MCPWR
BUSY
PERIPHERAL
3 Nomenclature and Functions
Meaning
3
3-5
