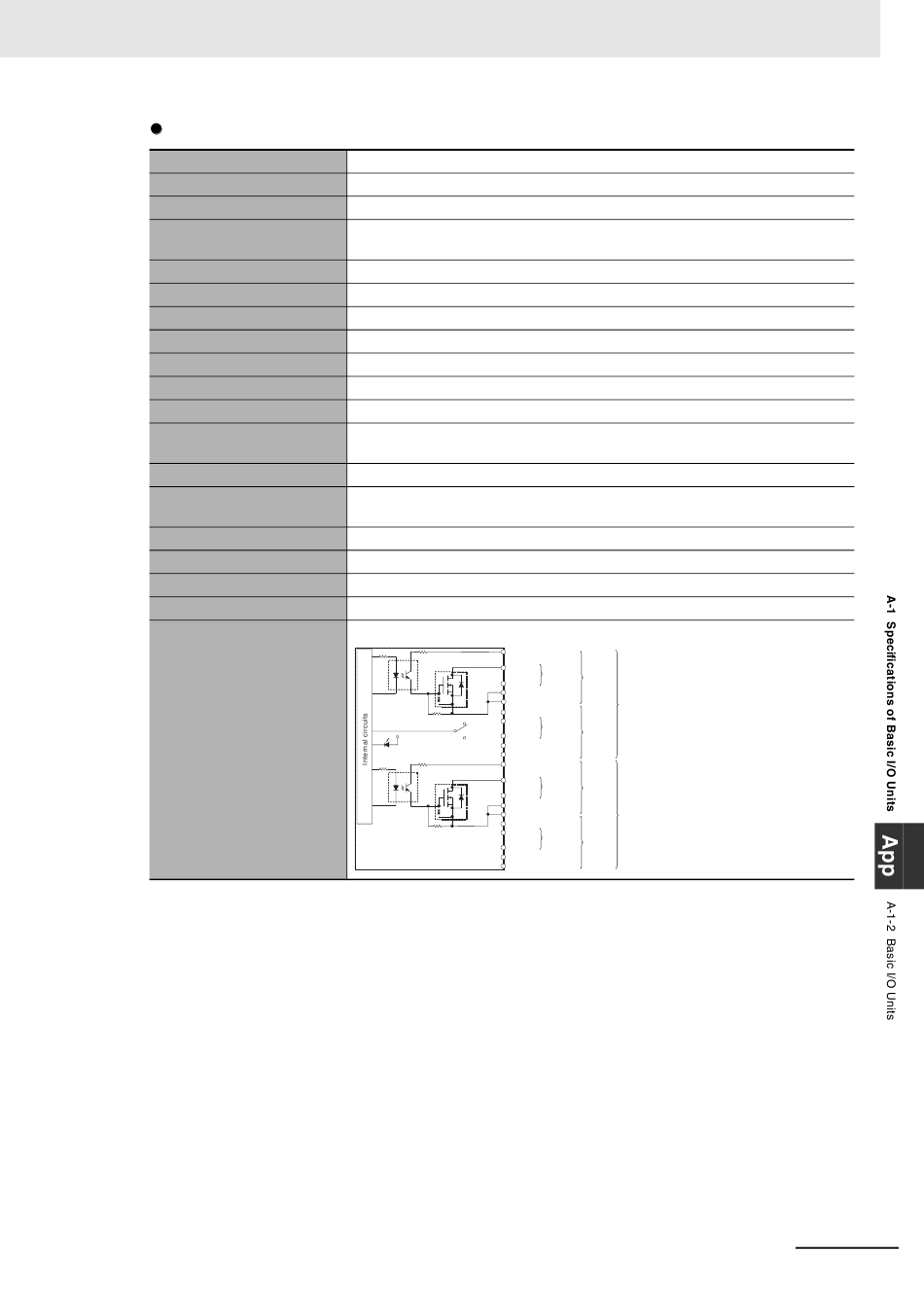

CJ1W-OD261 Transistor Output Unit (64 Points)

Name
Model
Rated Voltage
Operating Load Voltage
Range
Maximum Load Current
Maximum Inrush Current
Leakage Current
Residual Voltage
ON Response Time
OFF Response Time
Insulation Resistance
Dielectric Strength
Number of Circuits
Internal Current Consump-
tion
Fuse
External Power Supply
Weight
Accessories
Circuit Configuration
CJ2 CPU Unit Hardware User's Manual
64-point Transistor Output Unit with Fujitsu Connectors (Sinking Outputs)
CJ1W-OD261
12 to 24 VDC
10.2 to 26.4 VDC
0.3 A/point, 1.6 A/common, 6.4 A/Unit
3.0 A/point, 10 ms max.
0.1 mA max.
1.5 V max.
0.5 ms max.
1.0 ms max.
20 MΩ between the external terminals and the GR terminal (100 VDC)
1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
64 (16 points/common, 4 circuits)
5 VDC, 170 mA max.
None
10.2 to 26.4 VDC, 50 mA min.
110 g max.
None
Signal
name
+V
OUT0
to
OUT15
COM0
COM0
+V
OUT0
SW
to
OUT15
COM1
Output indicator COM1
+V
OUT0
to
OUT15
COM2
COM2
+V
OUT0
to
OUT15
COM3
COM3
Allocated
CIO word
Wd m Connect
or row A
CN1
Connect
Wd m+1
or row B
Connect
Wd m+2
or row A
CN2
Wd m+3 Connect
or row B
