Goodrive880 Series Active Rectifier Hardware Manual
Symbol Component
Fiber optic
9
interface
10 RJ45 terminal
11 User terminal
12 STO terminal
13 RJ45 terminal
14 Fixed hole
15 RJ45 terminal
Fiber optic
16
interface

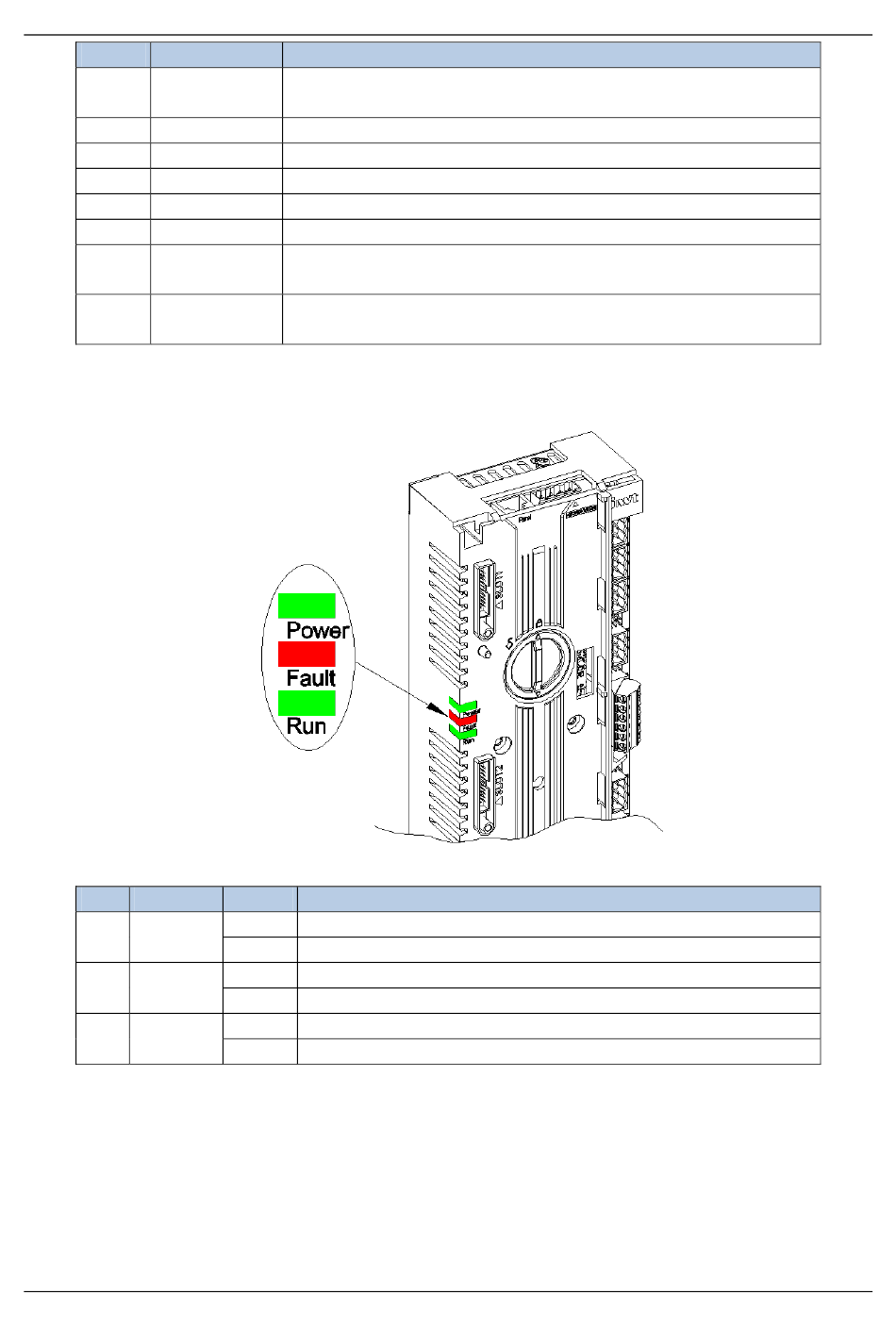

5.2 LED indicator

No. Name
1 POWER
2 Fault
3 RUN
202401 (V1.0)
Function description
Master/slave fiber optic interface (optional)
Upper computer interface, connecting to a PC for status monitoring
Standard input and output terminals for users
Safe Torque Off input
HMI, connecting to the SOP-880 keypad
ACU fixing holes (three holes)
Communication interface with power unit (active rectifier A1–A4, A6, A7
units)
Fiber optic communication interface with power unit (active rectifier A8
unit)
Table 5-2 Indicator description
State
ON The ACU is properly powered.
OFF The ACU is not powered or power failure occurs.
ON The system is faulty.
OFF The system is normal.
ON The power module is running.
OFF The power module is stopped.
Active rectifier control unit (ACU)
Description
