Goodrive880 Series Active Rectifier Hardware Manual

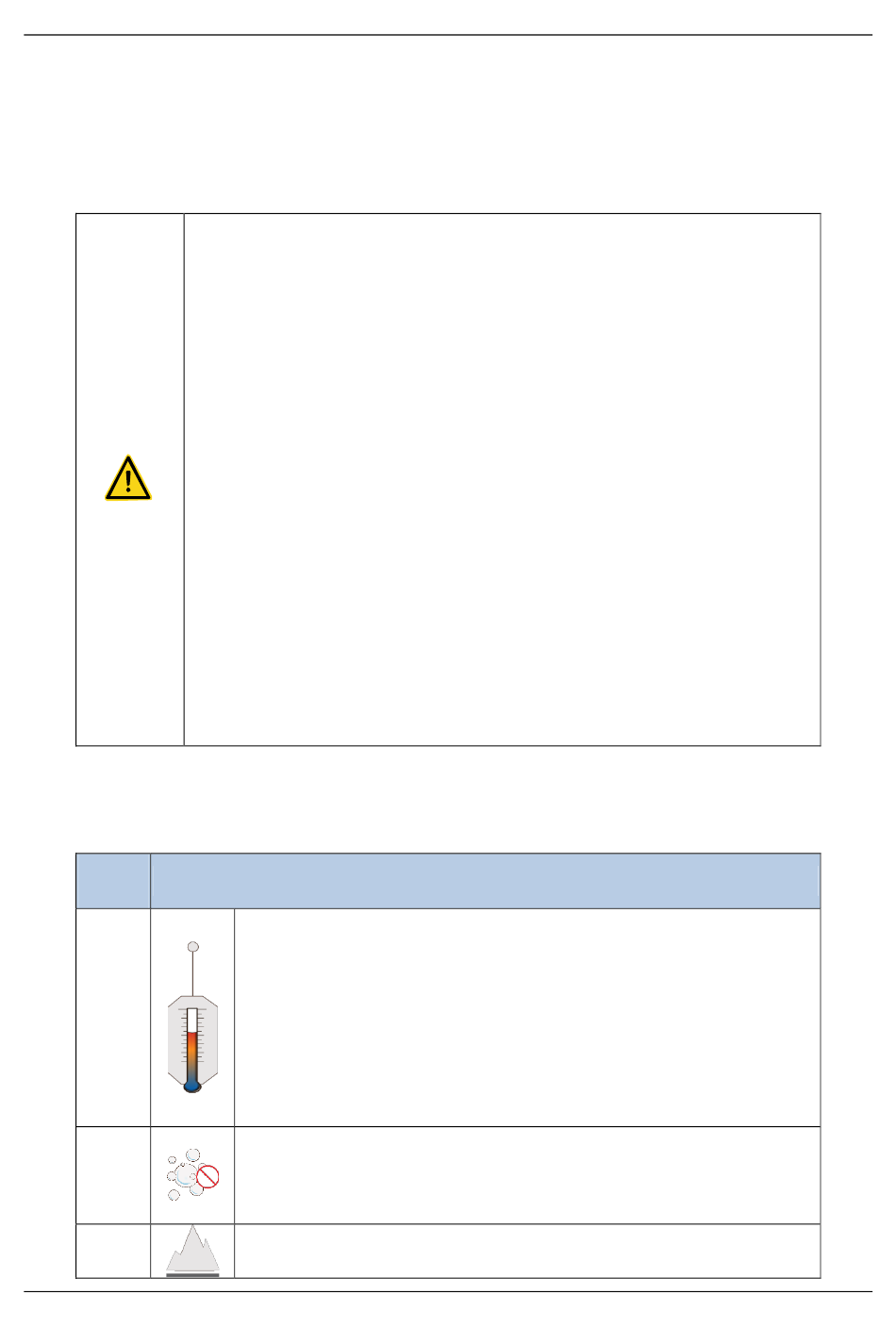

3.1 Safety notes








3.2 Installation environment and site

Environment requirements

Environ
ment
Tempera
ture
Relative
humidity
(RH)
Altitude
202401 (V1.0)

3 Mechanical installation

Equipment can tip over if transported incorrectly or with disallowed means of
transport. Serious injury, property damage, or even death may result.
Only trained and qualified professionals are allowed to carry out the operations
mentioned in this chapter. Please carry out operations according to instructions
presented in section 1.4.1 Delivery and installation. Ignoring these safety
precautions may lead to physical injury or death, or device damage.
Ensure the active rectifier power has been disconnected before installation. If
the active rectifier has been powered on, disconnect the active rectifier unit
power and wait for at least the time specified on the rectifier unit, and ensure the
POWER indicator is off. You are recommended to use a multimeter to check and
ensure the rectifier unit DC bus voltage is below 36V.
The equipment installation must be designed and done according to applicable
local laws and regulations. We do not assume any liability whatsoever for any
equipment installation
recommendations given by us are not followed, the active rectifier may
experience problems that the warranty does not cover.
Only trained and qualified professionals are allowed to carry out related
operations.
Do not perform wiring, inspection or component replacement when power
supply is applied. Ensure all the input power supplies have been disconnected
before wiring or inspection, and wait for at least the time designated on the
Goodrive880 series product or until the DC bus voltage is less than 36V.
-10–+50℃

Do not use the VFD when the ambient temperature exceeds 50℃. When the

ambient temperature exceeds 40°C, derate 1% for every increase of 1°C.
The temperature does not change rapidly.

When the VFD is installed in a closed space, such as control cabinet, use a

cooling fan or air conditioner for temperature adjustment if necessary.
When the temperature is too low, if you want to use the VFD that has been

idled for a long time, install an external heating device before the use to
eliminate the freeze inside the VFD. Otherwise, the VFD may be damaged.
The relative humidity (RH) of the air is less than 90%, and there is no

condensation.
The max. RH cannot exceed 60% in the environment where there are

corrosive gases.
Lower than 1000 meters

When the altitude exceeds 1000m, derate 1% for every increase of 100m.

which breaches local
Requirement
Mechanical installation
laws or regulations. If
