Goodrive880 Series Active Rectifier Hardware Manual
Remove (+), (-) DC input copper bar
202401 (V1.0)

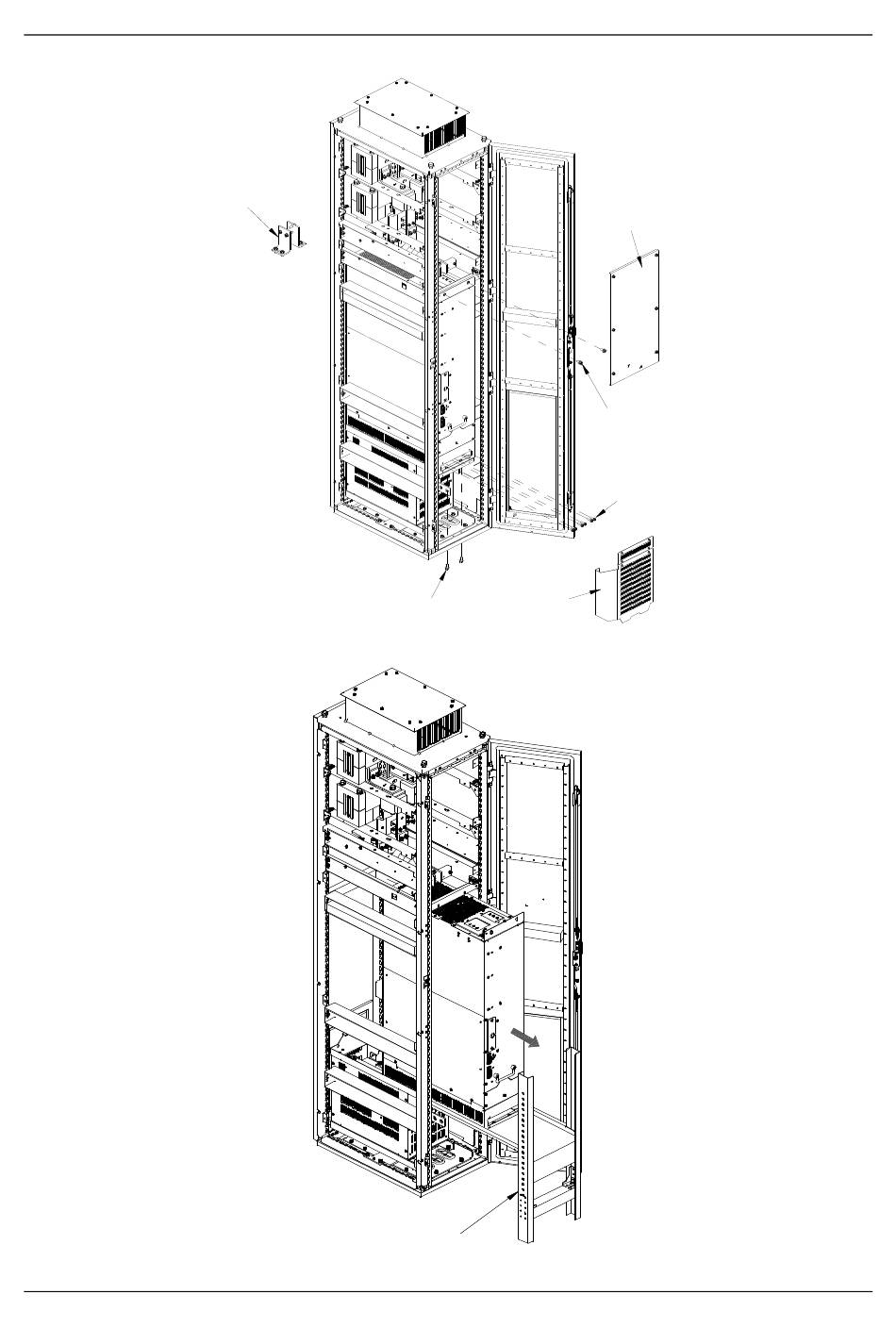

Figure 7-6 Replacing the A8n active rectifier unit
Remove two screws at the bottom of the unit
Figure 7-7 Installation and maintenance bracket
Installation and maintenance bracket
Remove the protective plate
Remove two fixing screws at the top of the unit
Remove six M6*25 screws connecting
the copper bar between the reactor
base and the unit.
Remove the protective plate
Maintenance and inspection
69
