ECM pmCAN Module Instruction Manual page 44

Setup CANMonitor using ATI VISION
ATI VISION CANMonitor provides a method of reading general purpose information from any
available CAN channel. The .dbc file generated by the ECM Configuration Tool is used to describe the
format of the information available to VISION. To setup a CANMonitor in ATI VISION:

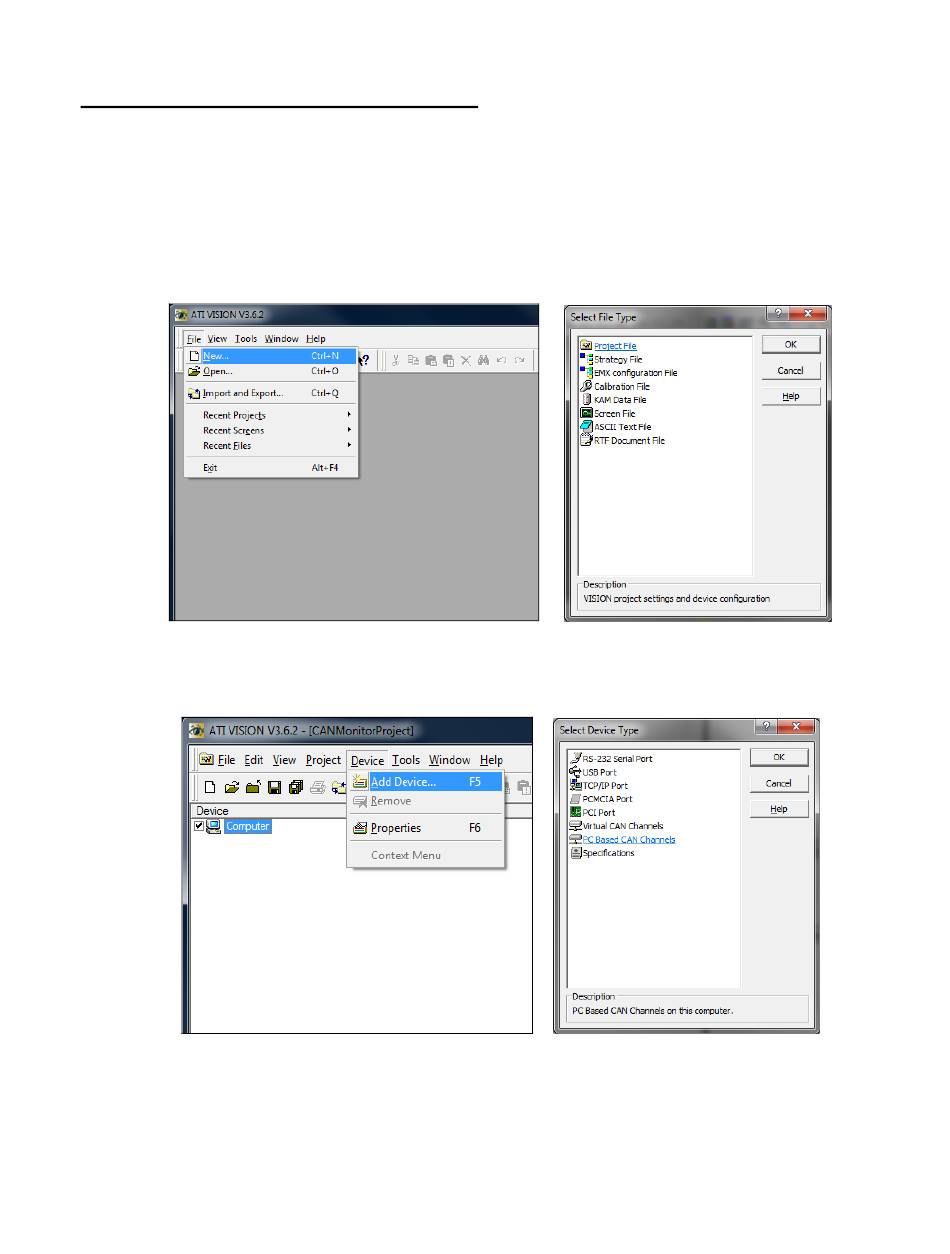

1. Run ATI VISION and open an existing Project File or create a new one by clicking File 
New  Project File. In this example the Project has been named CANMonitorProject.
2. Add a Device by clicking Device  Add Device, select PC Based CAN Channels from the
list.
38
