Appendix B: Module Stand-Alone Mode and EIB Mode
CAN data from CAN modules (ex. pmCAN, NH CAN, NOxCAN, LambdaCAN) can either
3
be taken directly from the modules themselves or from the CAN port of display heads
connected to the modules. When data is taken directly from one or more modules, each
module must in Stand-Alone mode. When data is taken from one or more display heads of a
NOx 5210, Lambda 5220, EGR 5230, NH 5250, or miniSOOT 5260 analyzer, each module
3
must be in EIB mode.
Therefore, the module must be properly configured in Stand-Alone mode or EIB mode
depending on how it will be used. When CAN modules are sold alone, they are delivered in
Stand-Alone mode. When CAN modules are sold as part of a NOx 5210, Lambda 5220,
EGR 5230, NH 5250, or miniSOOT 5260 analyzer, they are delivered in EIB mode.
3
To convert from one mode to the other requires the installation (to set to Stand-Alone) or
removal (to set to EIB) of a jumper inside the module and software reprogramming of the
module using the Configuration Tool.
To convert a module from EIB to Stand-Alone Mode


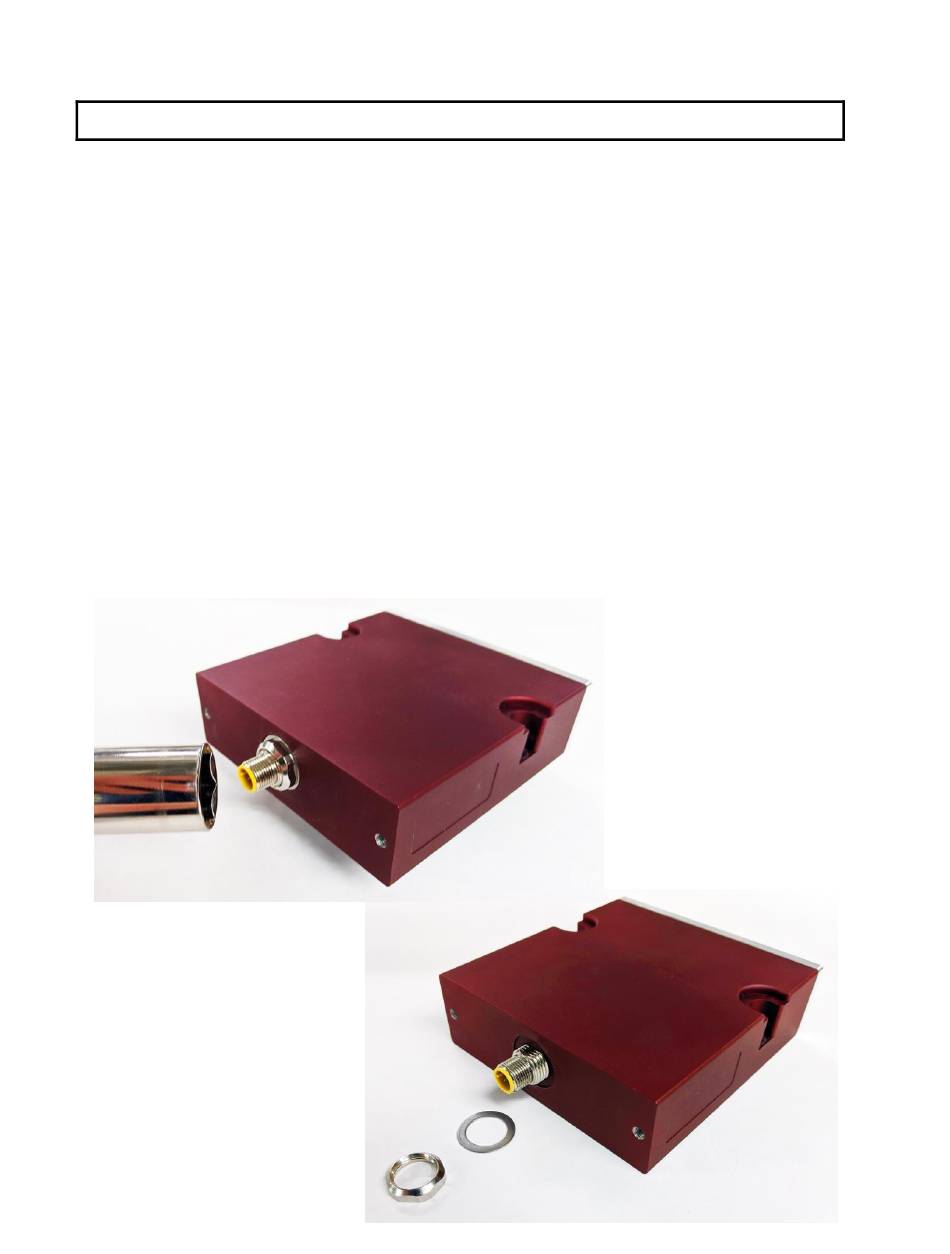

1. Using a 19mm socket, remove the nut and washer from the eurofast connector.
