ECM pmCAN Module Instruction Manual page 40

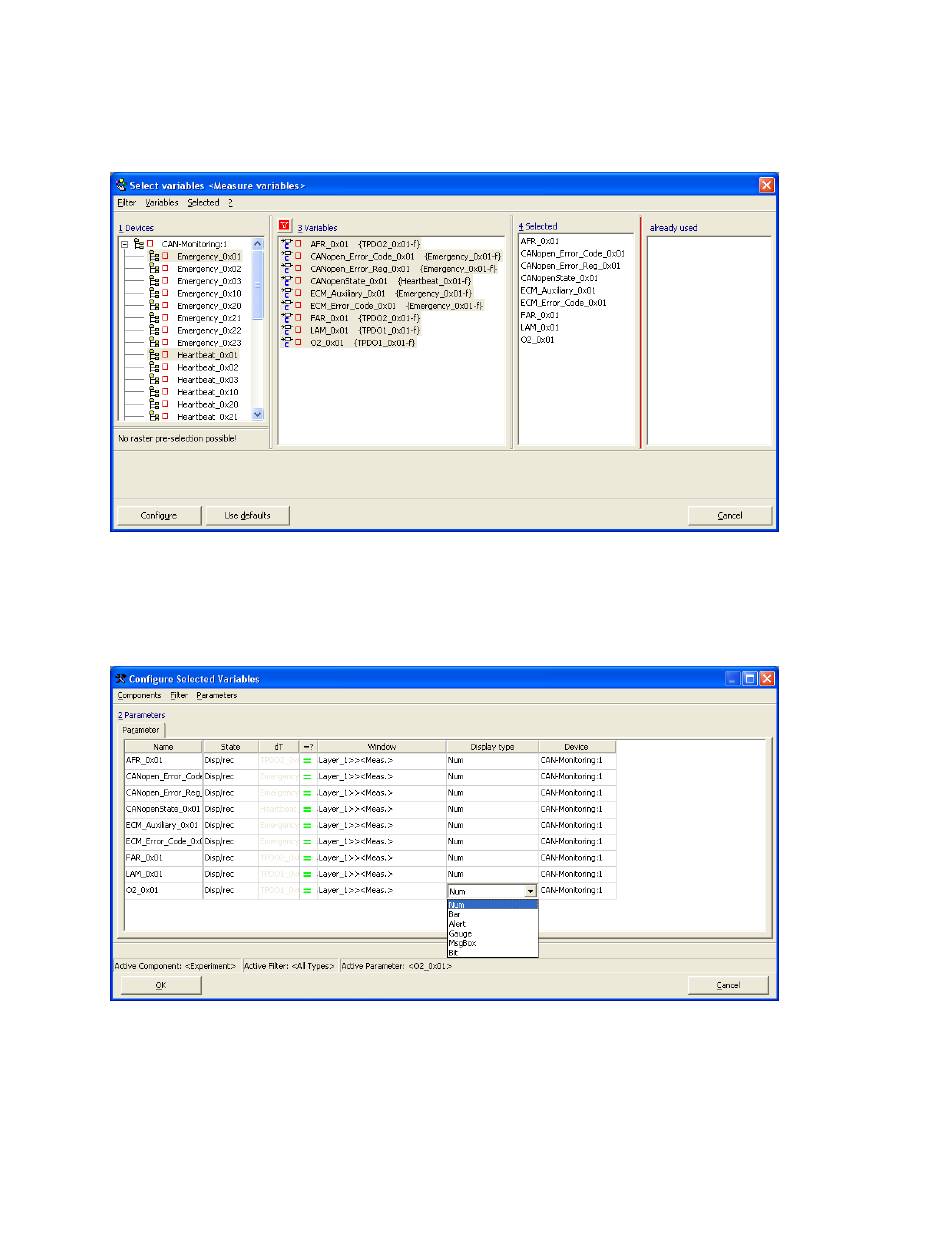

10. Select and Configure Variables. Select the variables that you wish to monitor in the
Experiment Environment. These variables names are based on the data found in the
dbc file. Click Configure.
11. Another window will pop up to configure each selected variable. You can configure,
for each variable, whether to record or simply display the data, how the data will be
displayed (graphs, charts, gauges, numeric, etc.).
have left all configurations at default for this example.
12. A new sub-window will be added to the Experiment Environment. You do not need
to select all the variables you want to monitor all at once. You can click on the Select
Variables icon again at a later time to add more variables. Each set of variables you
add will be placed in a new sub-window unless it is configured to join an existing
sub-window. In this example, we have created a sub-window for each of the eight
modules in the dbc file.
34
When complete, click OK. We
