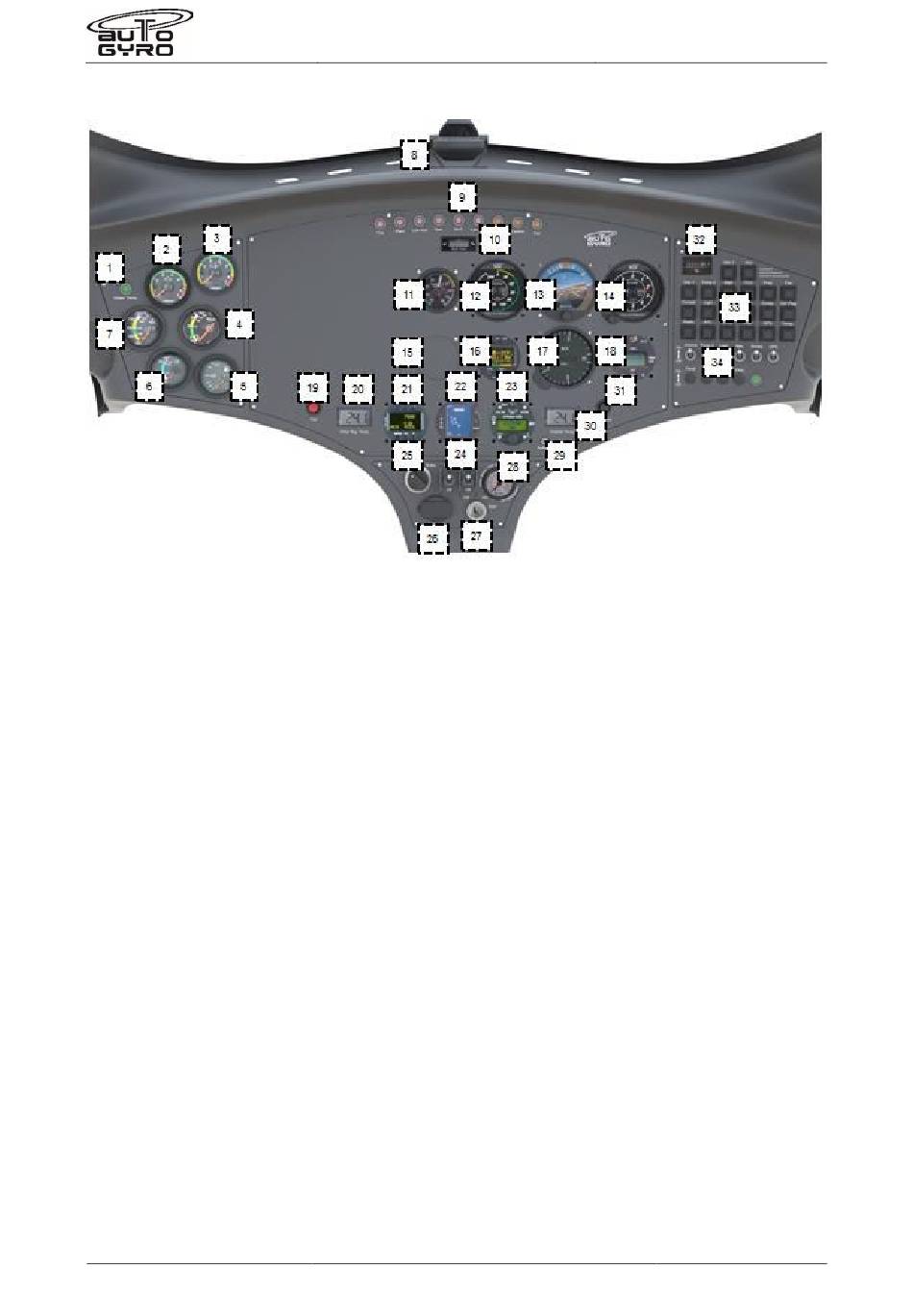

Panel Layout – Standard / Moving Map Portrait
1 – Water temperature indication
2 – Engine RPM
3 – Rotor RPM
4 – Oil pressure
5 – Fuel level indicator
6 – Cylinder head temperature
7 – Oil temperature
8 – Magnetic compass
9 – Warning lights
10 – Lateral trim indicator
11 – Manifold pressure gauge (if installed)
12 – Air speed indicator
13 – Attitude Indicator (if installed)
14 – Altimeter
15 – Cut-out 57mm / 2 ¼" for optional inst.
16 – Basic Flight Instrument (if installed)
17 – Vertical Speed Indicator (if installed)
18 – VPP control and end position
detection IVO propeller (if installed)
19 – Cooling fan manual activation
AMM-CV-915iS/916iS-EN-
C-2023-12
Aircraft
Maintenance Manual
20 – RBT indicator
21 – ATC transponder (if installed)
22 – Collision Avoidance System (if inst.)
23 – Radio (if installed)
24 – MAG switches
25 – Pneumatic mode selector
26 – 12V power receptacle (if installed)
27 – Master/starter switch
28 – Trim/brake pressure gauge
29 – Audio in (if installed)
30 – OAT indicator
31 – Pre-rotator overdrive/override
32 – Hour meter
33 – Circuit Breaker Panel
34 – Switches
