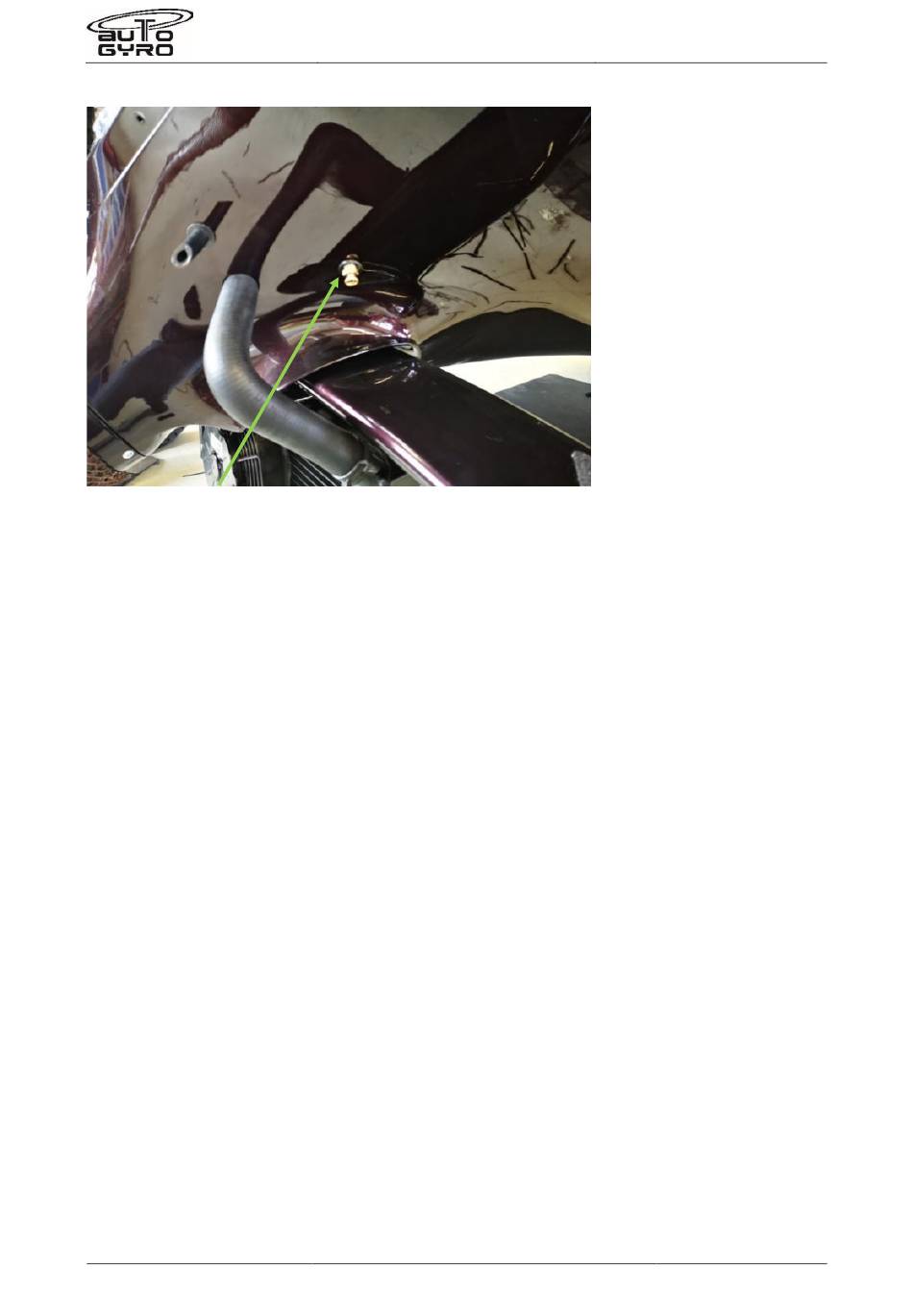

Location of gascolator drain point
28-40-00

Indicating

An electronic fuel level gauge is provided in the cockpit. An independent low fuel sensor can be installed
as an option in the right tank. The LOW FUEL warning light is triggered as soon as 7.5 litres or less of
usable fuel remain in the tanks. On the ground, fuel level can be checked visually using a dip stick which
has to be inserted diagonally from the fuel filler port: Note that in both cases, fuel level is measured from
the left hand tank only. Due to the large cross port the filling level of the second tank will be identical.
Additionally, and optionally, a low/high fuel pressure warning LED (FUEL P.) may be fitted to the panel.
This lamp indicates solid when the fuel pressure downstream of the fuel pumps is less than 0.15bar.
The pressure sensor is located in the fuel supply hose between the fuel filter and the fuel pressure
regulators on 915 iS / 916 iS engines.
