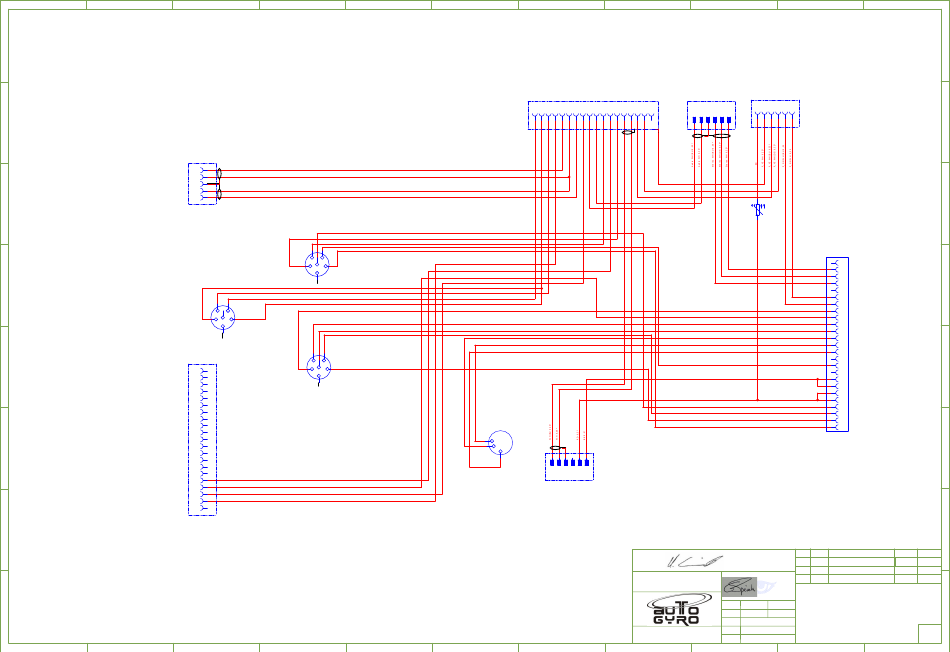

AUTO GYRO Cavalon Maintenance Manual page 172

1 2
A
B
Plug-PushPull
Com 2
/34.2:C
green
C
D
E
F
G
H
1 2
3 4
GMA2_YE - WH/BU 0.35²
1
GMA2_YE- WH 0.35²
2
3
GMA2_GN - WH 0.35²
4
GMA2_GN - WH/BU 0.35²
5
Binder Plug
Pilot (blue)
YE_P - WH/OG 0.35²
GN_P - WH 0.35²
GN_P - WH/BU 0.35²
YE_P - WH/BU 0.35²
YE_P - WH 0.35²
5 1
6
Binder Plug
4 2
GMA 245 Connect
Com 1 (yellow)
X73
3
Shield
GMA_GN - WH 0.35²
GMA_GN - WH/BU 0.35²
GMA_YE - WH/BU 0.35²
5 1
GN_C - WH 0.35²
6
4 2
GMA_YE- WH 0.35²
GN_C - WH/BU 0.35²
X78 YE_C - WH/OG 0.35²
3 YE_C - WH/BU 0.35²
Shield
5 1
Binder Plug
6
CoPilot
4 2
YE_C - WH 0.35²
3
1
/1.11:C
2
/1a.11:C X74
3 3
/8.1:D
/10.1:D
4 Shield
/17a.1:H
5
/34.2:G
6
7
8
9
10
11
12
13
14
15
16
17
BN 0,35²
18
BN/YE 0,35²
19
BN_COM2 0,35²
20
BN_COM1 0,35²
21
3 4
5 6 7
Shields connect
with the plug case
64
/34.8:B
/29.7:B
J2401
9 10 11 12 13
Line In
WH/OG 2
2
WH 3
3 1
1
1 2 3
WH/BU
Tip: left WH/BU
Ring: right WH/OG
Sleeve: GND WH
5 6 7
8 9
136
/24a.8:C
/24b.7:C
/34.8:B
14 15 30 31 32 33 34 35 36 37 40 41 42
brown
1 2 3 4 5 6
68
4 5 6
/24a.7:C
/24b.6:C
/29.6:E
/34.6:F
Co-Sign 1:
M.Sc. Harald Stindl
2022.11.04 11:03:10 +01'00'
Co-Sign 2:
This drawing may not be used in any from without ourexplicit
permission. Nor may it be shown publically, by third party or
for competitve purposes. Changes to the design, composition
or processing require prior authorisation from AutoGyro.
Date
Drawing 22.02.2019
Pro.Nr.
RotorSport UK Ltd
Format:
Unrivalled Sport Gyroplanes Sheet:
8 9
10 11
Passenger
/34.9:B
7 pin
1 2 3 4 5 6
B22
/34.9:C
0,25A
Shields connect
with the plug case
65
28
/34.10:F
/29.8:E
27
J2402
26
36
35
34
33
32
31
25
24
23
16
11
10
9
8
4
3
2
1
Fitted for 2nd Com, Passenger
A001 26.10.2022 HARRY
Haedset and Stereo
Changed Plug color of passenger
A002 26.10.2022 HARRY
plug
A003 00791 Changed lemo plug description 04.11.2022 HARRY
Rev CMS Modification Date Name
Digitally signed by
Gerald Speich
Name (engl.) / Name (ger.) / Part Number
Date: 11-Nov-22
GMA 245 installation kit
Name
GMA 245 Einbausatz
H.STINDL
Revision
46113
A2
A003
28 of 54
