AUTO GYRO Cavalon Maintenance Manual page 230

PARTS LIST
Fig. Pos. Description
1 1 Spinner HTC4B, painted
1 2 M8x110
1 3 U8/24
1 4 M6x40
1 5 Propeller
1 5 Propeller
1 6 Propeller
1 8 Spinner Plate
1 9
1 10 U4, Poly
1 11 Torque bush Spacer
1 12 Spacer Propeller
ILLUSTRATIONS

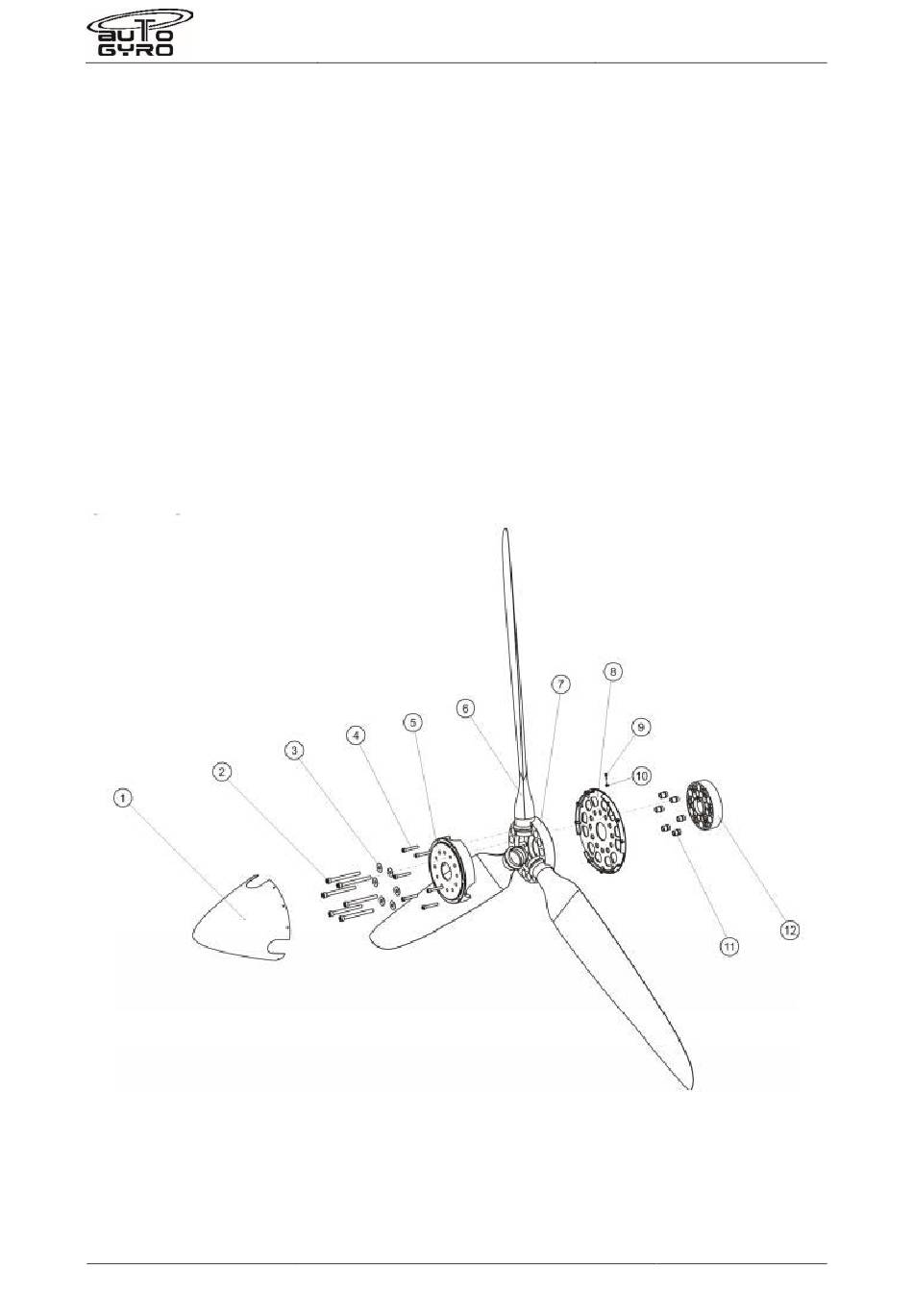

Fig. 1 - Propeller HTC (Note: a 3 bladed propeller is shown, the current HTC propeller for 915iS engines is 4 bladed)
AMM-CV-915iS/916iS-EN-
E-2023-12
Aircraft
Maintenance Manual
PC PIT
L2 53-00-00-V-46905
NPI
NPI
NPI
L3 61-00-00-V-45479 ROTAX 915
L3 61-00-00-V-45479 ROTAX 915
61-00-00-V-45479 ROTAX 915
61-00-00-V-46906
71-00-00-V-31051
NPI
NPI
NPI
Part E - 61-10-00 4-1
AutoGyro
Cavalon 915 iS / 916 iS
Remark
ROTAX 915
Page 2 of 2
