15 Apply AG-LUB-03 to pre-rotator drive coupling sleeve and position upper mast. Make sure that coupling
sleeve joins easily.
16 Apply AG-GRS-01 on outer surface of bushing sleeves and install bushing sleeves. Use a rubber hammer, if
required.
17 Install attachment hardware and torque-tighten with 20 Nm. Mark bolt heads with securing paint.
18 Re-install push-pull cable bulkhead and rod end for roll control. Mark attachment hardware with securing
paint.
19 Re-install push-pull cable bulkhead and rod end for pitch control. Mark attachment hardware with securing
paint.
20 Re-connect support lines and cables. Secure support lines and cables with cable ties.
21 Have duplicate inspection performed on correct attachment of flight controls, i.e. push-pull cables and
attachments.
WARNING: The ball joint must be installed with at least 8 threads on the rod end of the
push-pull control cable.
22 Check rotor head control angles
PARTS LIST
Fig. Pos. Description
ILLUSTRATIONS
AMM-CV-915iS/916iS-EN-
E-2023-12
Aircraft
Maintenance Manual
62-32-00 6-1 and re-adjust, if necessary.
PC PIT

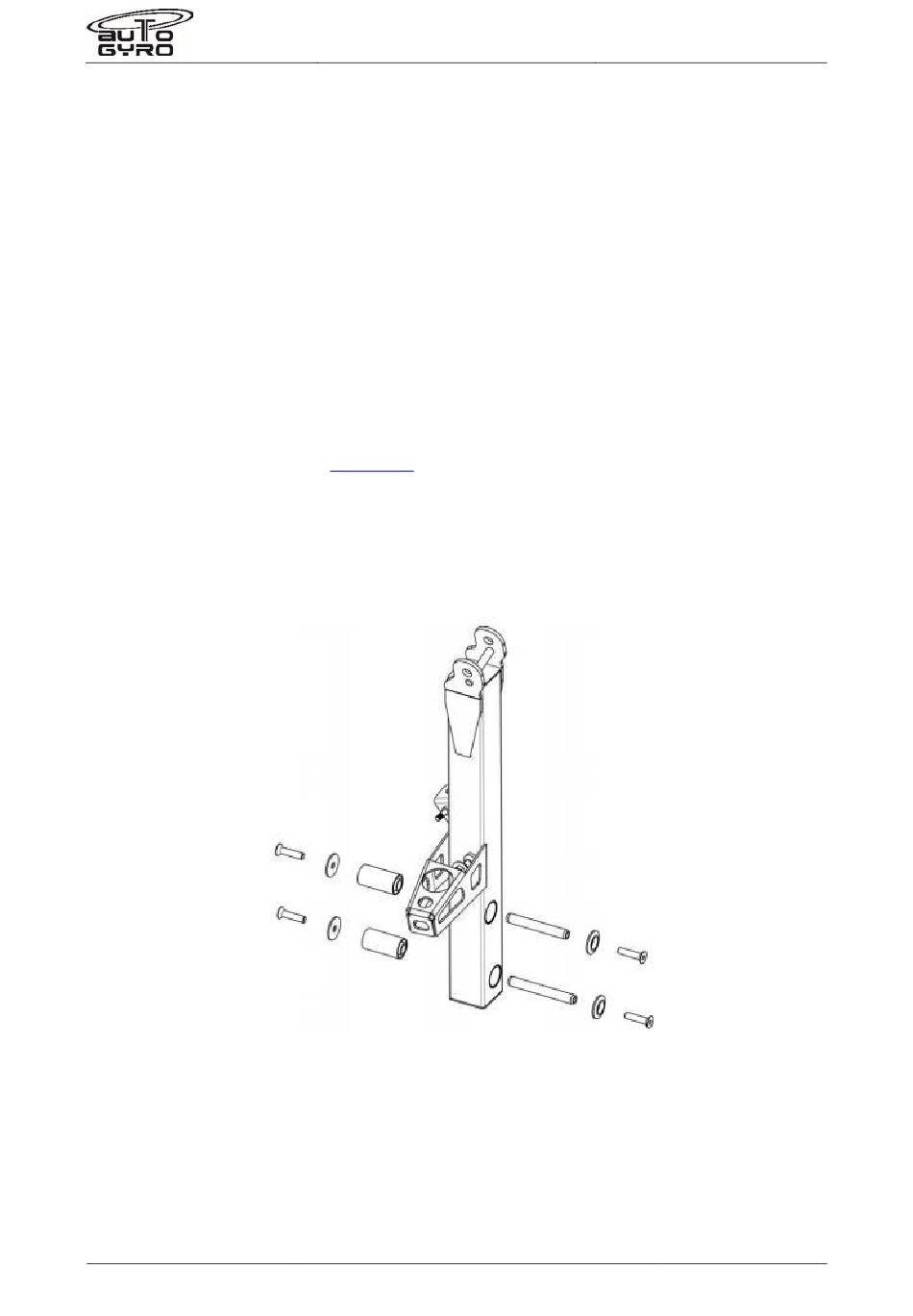

Fig. 1 - Bottom mast with mast mounting bushings
Part E - 62-51-00 8-1
AutoGyro
Cavalon 915 iS / 916 iS
Remark
Page 2 of 2
