PARTS LIST
Fig. Pos. Description
1
1
Shoulder bolt M8 37/12
1
1-5 M8x60 Rotor blade bolt 8.8 DIN 610
1
2
Shoulder bolt M8 40/12
1
3
Shoulder bolt M8 43/12
1
4
Shoulder bolt M8 46/12
1
5
M8x60 Rotor blade bolt 8.8 DIN 610
1
6
U9/20
1
7
Rotor Hub III
1
8
U8
1
9
M8 Si
1
10 Clamping profile blade
ILLUSTRATIONS
AMM-CV-915iS/916iS-EN-
E-2023-12
Aircraft
Maintenance Manual
PC PIT
L0 62-00-00-S-33324
L0 62-00-00-V-20661
L0 62-00-00-S-33324
L0 62-00-00-S-33324
L0 62-00-00-S-33324
L0 62-00-00-V-20661
L0 62-00-00-S-33324
L1 01-00-00-V-
L0 62-00-00-S-33324
L0 62-00-00-S-33324
L1 01-00-00-V-31793

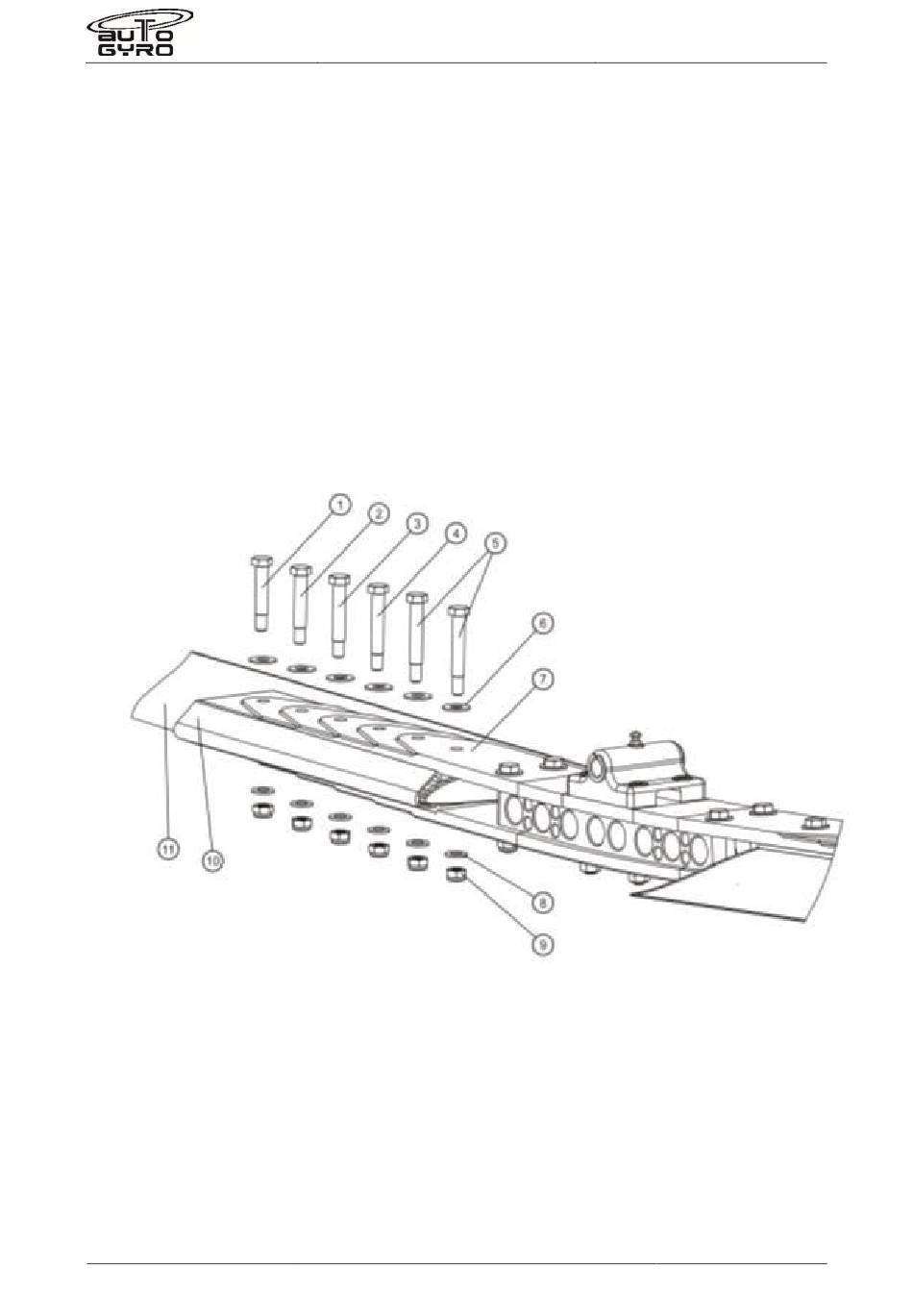

Fig. 1 - Disassembly rotor - teetering parts
Part E - 62-11-00 4-2
AutoGyro
Cavalon 915 iS / 916 iS
Remark
Page 2 of 2
