PARTS LIST
Fig. Pos. Description
1
1
Teeter bolt
1
2
Chimm washer 3,5
1
3
U13
1
4
M12 Castle nut
1
5
Split pin 3.2x40
1
6
Rotor head II compl.
ILLUSTRATIONS
AMM-CV-915iS/916iS-EN-
E-2023-12
Aircraft
Maintenance Manual
PC PIT
L0 27-30-00-S-30256
L0 62-00-00-S-31706
L0 27-30-00-S-30256
L0 27-30-00-S-30256
L0 27-30-00-S-30256
L2 27-30-00-V-

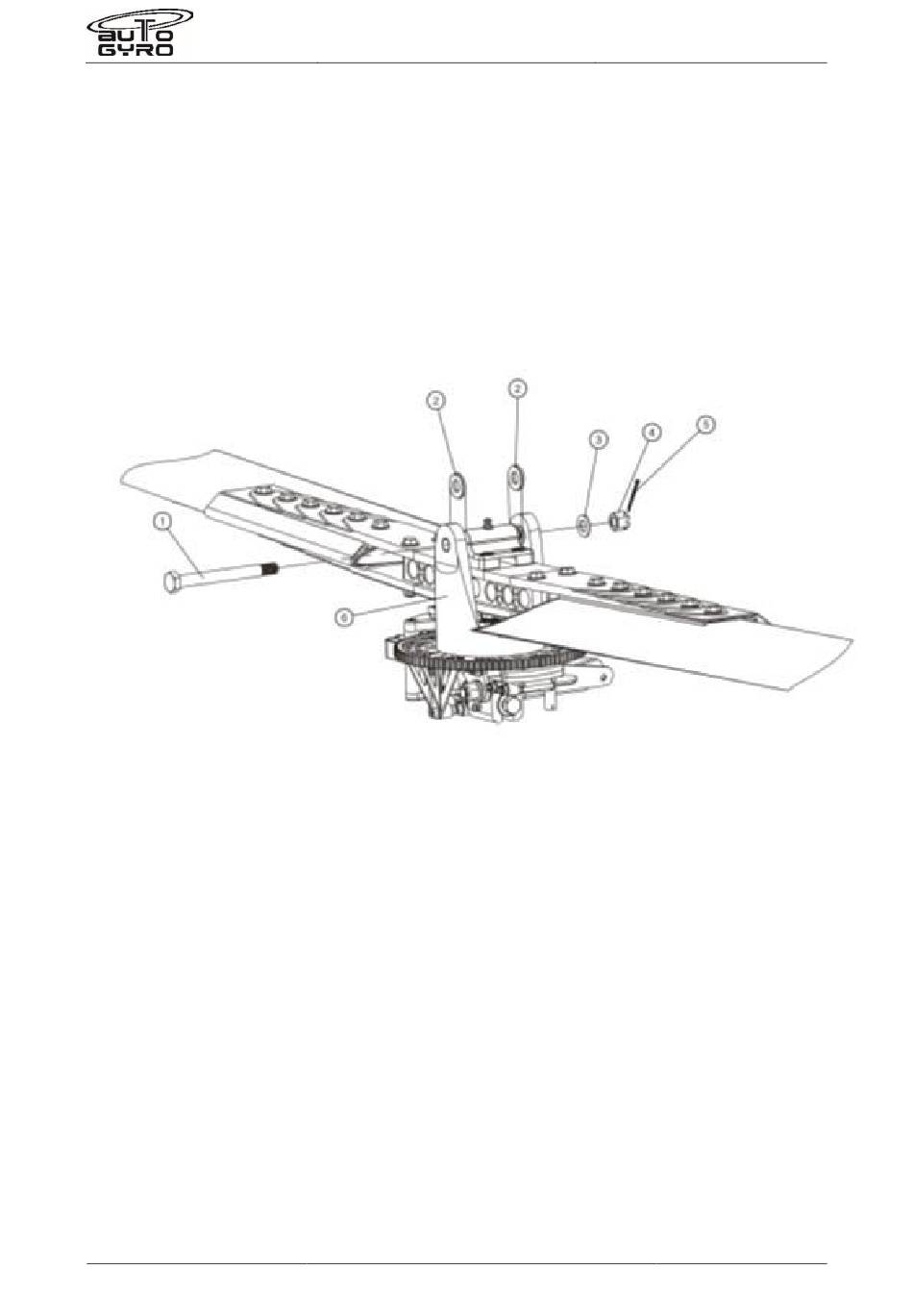

Fig. 1 - Removal rotor - teetering parts
Part E – 61-20-00 1-1
AutoGyro
Cavalon 915 iS / 916 iS
Remark
Page 2 of 2
