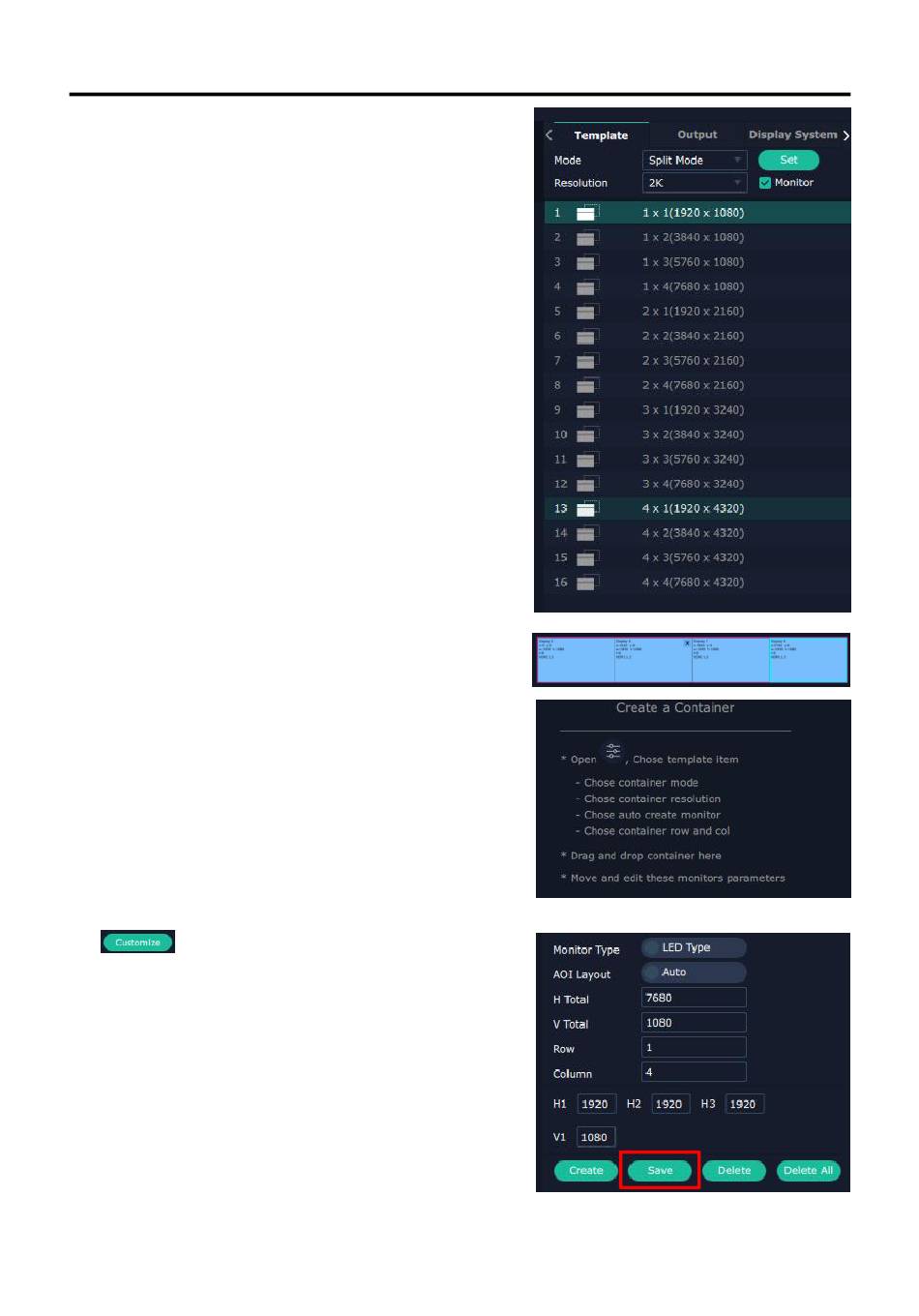

Template
There are 16 types of basic "Display Area" which is used
to contain output interface, and could be regarded as
layout of output.
Drag a template to create a container in other word a
display area.
Resolution
Users can choose output resolution as shown in the figure.
Mode
Each mode is marked in different color and provided
with fitted templates. Users can do operations like splice
under different modes.
FLEXpro16：Split Mode and Matric Mode (by default)
optional.
Matrix Mode: No need of recreating a container after
changing resolution.
Split Mode: No container is reserved after change of
resolution. Need of recreating a container.
Customize Container
Click at the bottom of template list.
Monitor Layout: Auto or Manual.
Steps of creating a container are as follows:
1. Fill in H Total/V Total and Row/Column,it will
calculate H item and V item automatically.
For example, create a container with 1 row and 4
columns and each display has a width of 1920 and a
height of 1080, the total width will be 7680 and the
total height will be 1080.
2. Click <Create>, the container will show the width
and height of each Display.
3. Click<Save> to save the container.
