3.1.4.1 Matrix Mode

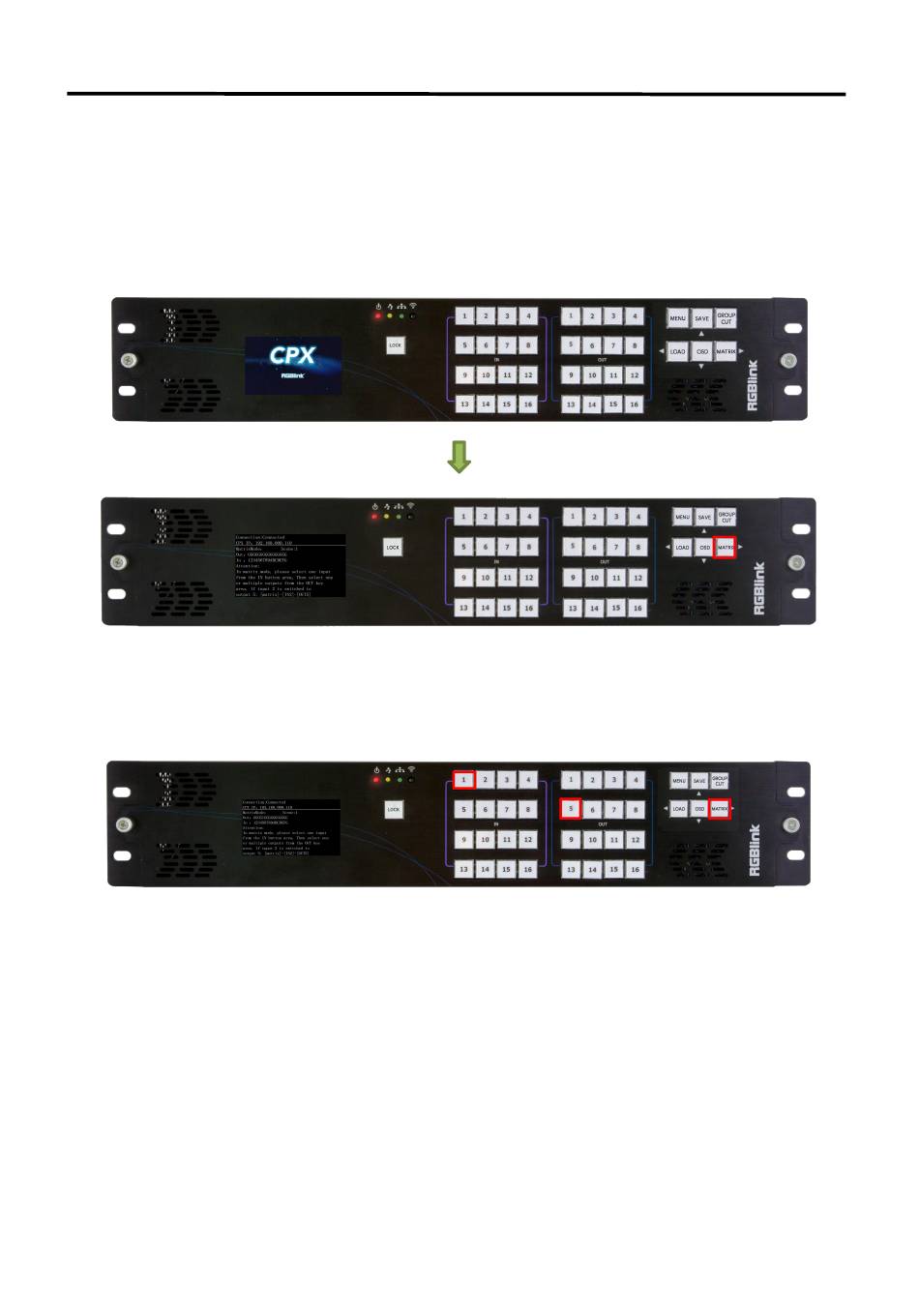

CPX shows LOGO and then automatically enters Matrix Mode. The LCD screen displays the current
status.
Under Matrix Mode, [MATRIX] key is on, as shown in the figure below.
In Matrix Mode, you can select input signal from [IN 1-16] and output signal from [OUT 1-16].
Example 1: Switch input 1 to output 5 (Input signal 1 not been used in any output ports before.)
Step 1: Select [ IN 1] and the light will be ON to indicate that the input signal 1 has been selected.
Step 2: Select [OUT 5], [OUT 5] light will be ON and the output port 5 will display input signal 1.
The input and output relationship will change accordingly on LCD screen.
Example 2: Switch input 1 to output 7 and output 8 (Input signal 1 been used in output port 5
already.)
