3.Non-initial state ( matrix has been switched): One input has been selected,
and the corresponding output button light is ON. Users can press other
output buttons for matrix switch.
4Used as direction key "Right" under menu operation.
1. Indicate Input Ports 1-16 under Matrix Mode and Group Cut Mode.
2. Indicate Page 1-16 under Scene Mode.
3. Press IN 1-16 to load OSD 1 to selected output port under OSD Mode.
1. Indicate Output Ports 1-16 under Matrix Mode and Group Cut Mode.
2. Indicate Scene 1-16 under Scene Mode.
3. Press OUT 1-16 to load OSD 2 to selected output port under OSD Mode.
4. Used as Numeric Keys under menu control; 1-9 indicate number 1-9, 10
indicates number 0.

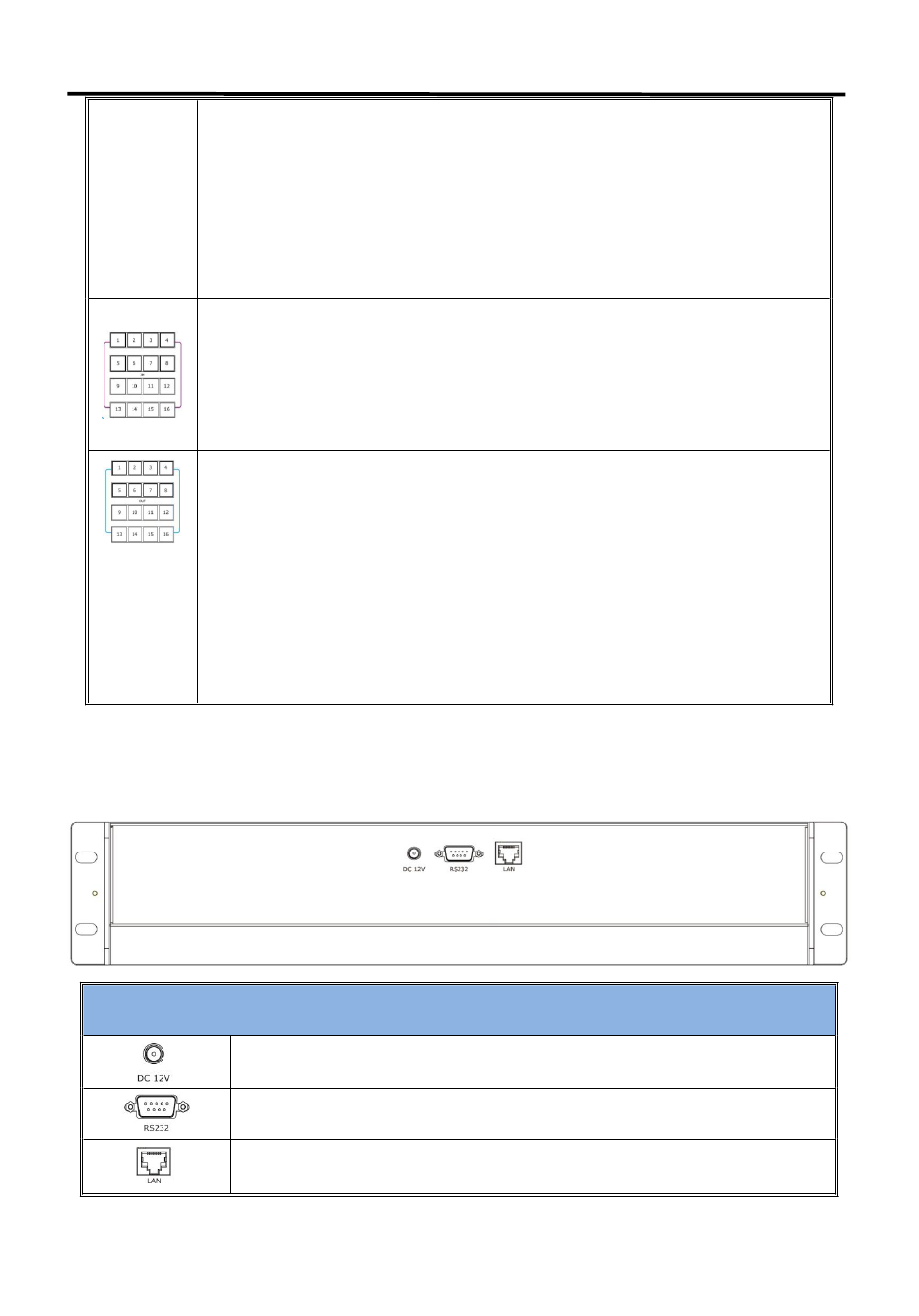

3.1.2 CPX Rear Panel

Description
DV 12V power socket.
RS 232 port.
Connect two FLEXpro16 devices to the same switch, and CPX can control
