Intellitronix BG2000 Installation Manual page 2

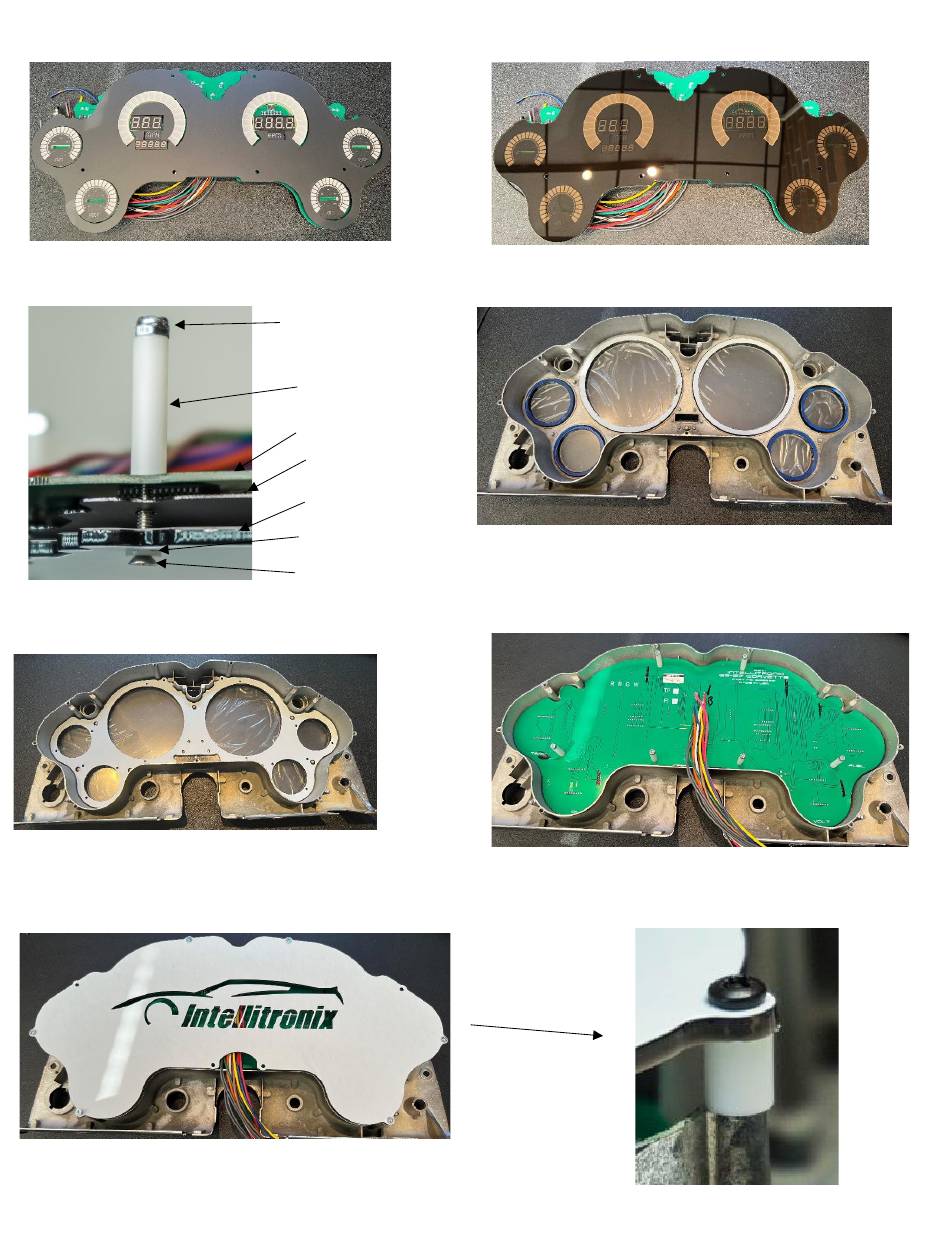

Step 1
Place overlay on top of the gauges
Step 3
Attach acrylic to circuit board
Step 5
Place full spacer on top of the rings
Step 7
Secure the back plate to the housing using provided
spacers and factory screws
2 BG2000
#4 Nylock nut
1" Spacer
Circuit board
Overlay
Acrylic
#4 Nylon washer
1 ½" Screw
1162024
Step 2
Place Acrylic over circuit board and overlay
Step 4
Place the 6 clear lenses and 6 spacer rings into the
bezel
Step 6
Insert circuit board assembly into housing
