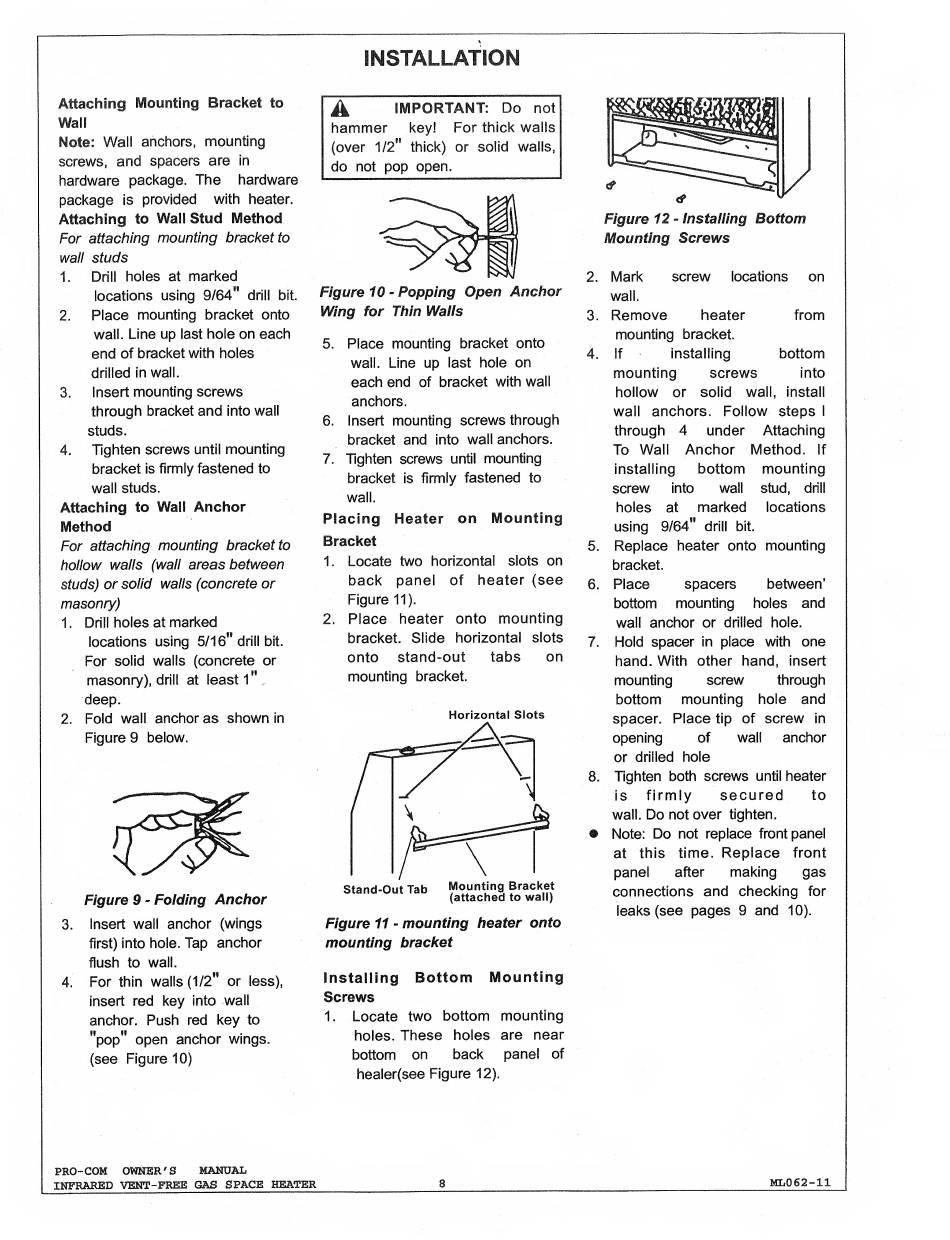

INSTALLATION
Attaching Mounting Bracket to
Wail
Note: Wall anchors, mounting
screws, and spacers are in
hardware package. The hardware
package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to
wall studs
1 Drill holes at marked
locations using 9/64" drill bit.
2. Place mounting bracket onto
wall. Line up last hole on each
end of bracket with holes
drilled in wall.
3. Insert mounting screws
through bracket and into wall
studs.
4. Tighten screws until mounting
bracket is firmly fastened to
wall studs.
Attaching to Wall Anchor
Method
For attaching mounting bracket to
hollow walls (wall areas between
studs) or solid wails (concrete or
masonry)
1. Drill holes at marked
locations using 5/16" drill bit.
For solid walls (concrete or
masonry), drill at least l"
deep.
2. Fold wall anchor as shown in
Figure 9 below.
Figure 9
-
Folding Anchor
3. Insert wall anchor (wings
first) into hole. Tap anchor
flush to wall.
4. For thin walls (1/2" or less),
insert red key into wall
anchor. Push red key to
"pop" open anchor wings,
(see Figure 10)
Figure 10
-
Popping Open Anchor
Wing for Thin Walls
5. Place mounting bracket onto
wall. Line up last hole on
each end of bracket with wall
anchors.
6. Insert mounting screws through
bracket and into wall anchors.
7. Tighten screws until mounting
bracket is firmly fastened to
wall.
Placing Heater on Mounting
Bracket
1. Locate two horizontal slots on
back panel of heater (see
Figure 11).
2. Place heater onto mounting
bracket. Slide horizontal slots
onto stand-out tabs on
mounting bracket.
Horizontal Slots
Figure 11 - mounting heater onto
mounting bracket
installing Bottom Mounting
Screws
1. Locate two bottom mounting
holes. These holes are near
bottom on back panel of
healer(see Figure 12).
Figure 12
-
Installing Bottom
Mounting Screws
2. Mark screw locations on
wall.
3. Remove heater from
mounting bracket.
4. If installing bottom
mounting screws into
hollow or solid wall, install
wall anchors. Follow steps I
through 4 under Attaching
To Wall Anchor Method. If
installing bottom mounting
screw into wall stud, drill
holes at marked locations
using 9/64" drill bit.
5. Replace heater onto mounting
bracket.
6. Place spacers between'
bottom mounting holes and
wall anchor or drilled hole.
7. Hold spacer in place with one
hand. With other hand, insert
mounting screw through
bottom mounting hole and
spacer. Place tip of screw in
opening of wall anchor
or drilled hole
8. Tighten both screws until heater
is firmly secured to
wall. Do not over tighten.
® Note: Do not replace front panel
at this time. Replace front
panel after making gas
connections and checking for
leaks (see pages 9 and 10).
