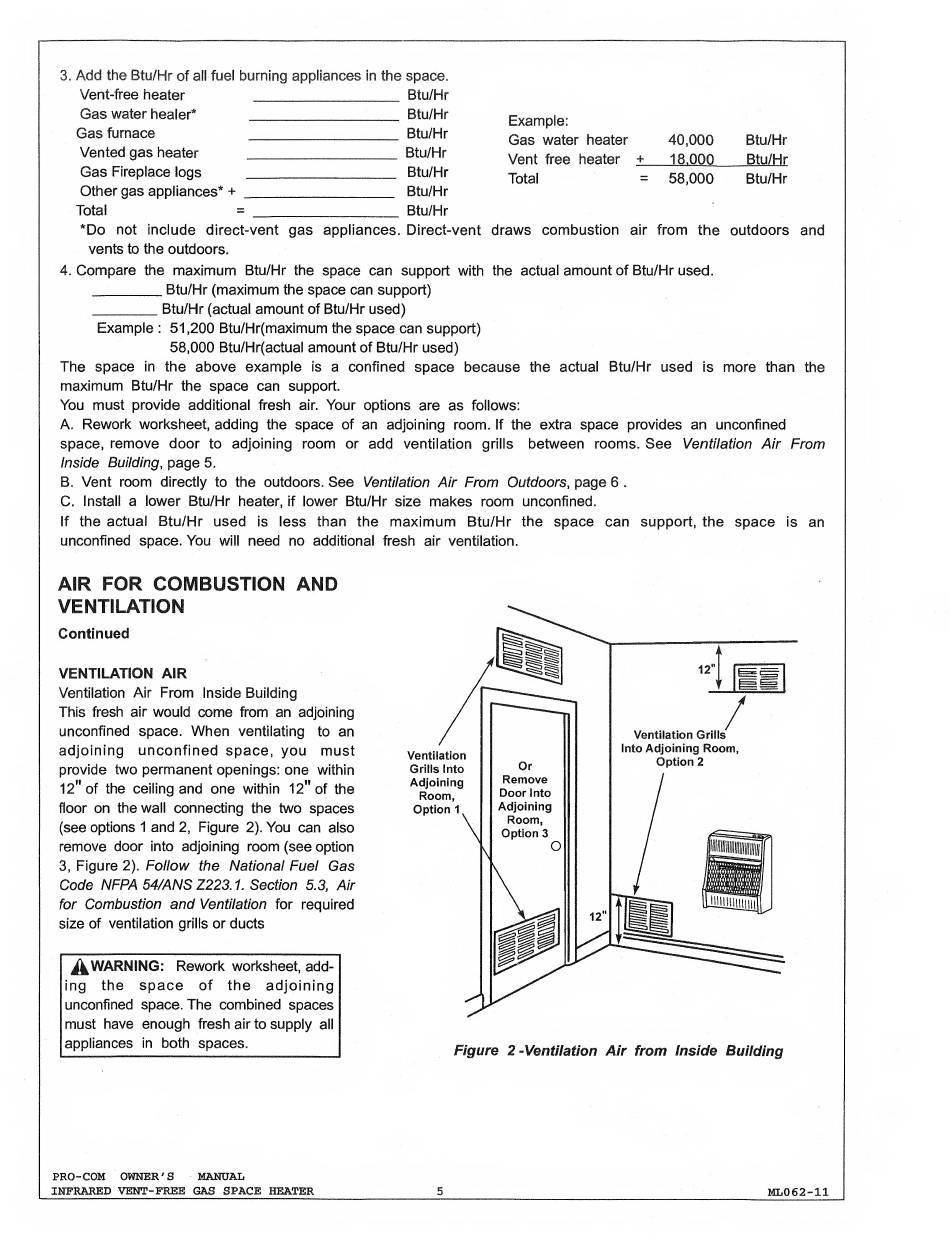

3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater Btu/Hr
Gas water healer* Btu/Hr
Gas furnace
Btu/Hr
Vented aas heater Btu/Hr
Gas Fireolace loos Btu/Hr
Other aas aoDliances* + Btu/Hr
Total Btu/Hr
*Do not include direct-vent gas appliances. Direct-vent
vents to the outdoors.
Example:
Gas water heater 40,000 Btu/Hr
Vent free heater + 18.000 Btu/Hr
Total = 58,000 Btu/Hr
draws combustion air from the outdoors and
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
_Btu/Hr (maximum the space can support)
_Btu/Hr (actual amount of Btu/Hr used)
Example : 51,200 Btu/Hr(maximum the space can support)
58,000 Btu/Hr(actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support.
You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined
space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From
Inside Building, page 5.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6 .
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an
unconfined space. You will need no additional fresh air ventilation.
AIR FOR COMBUSTION AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must
provide two permanent openings: one within
12" of the ceiling and one within 12" of the
floor on the wall connecting the two spaces
(see options 1 and 2, Figure 2). You can also
remove door into adjoining room (see option
3, Figure 2). Follow the National Fuel Gas
Code NFPA54/ANSZ223.1. Section 5.3, Air
for Combustion and Ventilation for required
size of ventilation grills or ducts
WARNING: Rework worksheet, add¬
ing the space of the adjoining
unconfined space. The combined spaces
must have enough fresh air to supply all
appliances in both spaces.
Ventilation
Grills Into
Adjoining
Room,
Option 1
Figure 2-Ventilation Air from inside Building
PRO"COM OWNER'S MANUAL
INFRARED VENT-FREE GAS SPACE HEATER 5 ML062-11
