WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-573-0674, 8:00 am - 4:30 pm CST,
Monday through Friday or email customerservice@usaprocom.com

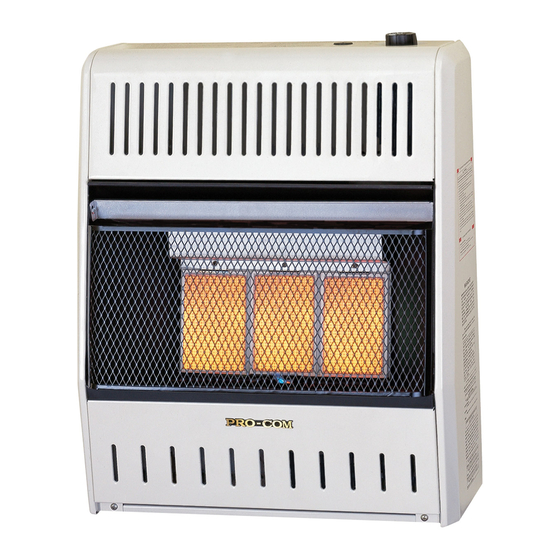

VENT-FREE NATURAL GAS
SPACE HEATER
OWNER'S OPERATION AND
INSTALLATION MANUAL
INFRARED MODELS
MN180HPA, MN180TPA
MN300HPA, MN300TPA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Procom MN180HPA
Summary of Contents for Procom MN180HPA
- Page 1 VENT-FREE NATURAL GAS SPACE HEATER OWNER’S OPERATION AND INSTALLATION MANUAL INFRARED MODELS MN180HPA, MN180TPA MN300HPA, MN300TPA WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ............3 Operation ..........17 Specifications ..........4 Inspecting Heater ........20 Preparing For Installation ......5 Care And Maintenance ......21 Qualified Installing Agency ......5 Troubleshooting ........22 Product Features ........5 Replacement Parts ........25 Local Codes.......... -
Page 3: Safety
SAFETY IMPORTANT: Read this owner’s WARNING: Any change to manual carefully and completely this heater or its controls can before trying to assemble, op- be dangerous. erate, or service this heater. Improper use of this heater can WARNING: Do not use any cause serious injury or death accessories not approved for from burns, fire, explosion,... -
Page 4: Specifications
10. Operating heater above elevations of 4,500 feet could cause pilot outage. SPECIFICATIONS MODEL MN180HPA MN180TPA Ignition Piezo Piezo Gas Type Natural Gas... -
Page 5: Preparing For Installation
PREPARING FOR INSTALLATION Before beginning assembly or operation of the Ignitor Button Control Knob product, make sure all parts are present. Com- pare parts with package contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Con- tact customer service for replacement parts. -
Page 6: Local Codes
LOCAL CODES Install and use heater with care. Follow all State of Massachusetts: The installation local codes. In the absence of local codes, must be made by a licensed plumber or use the latest edition of The National Fuel gas fitter in the Commonwealth of Mas- Gas Code, ANSI Z223.1/NFPA 54*. -
Page 7: Air For Combustion And Ventilation
AIR FOR COMBUSTION AND VENTILATION heat loss in homes. Home owners weather WARNING: This heater shall strip and caulk around windows and doors not be installed in a confined space to keep the cold air out and the warm air in. During heating months, home owners want or unusually tight construction their homes as airtight as possible. - Page 8 AIR FOR COMBUSTION AND VENTILATION DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this work sheet to determine if you have Example: a confined or unconfined space. Gas water heater __________ Btu/Hr 30,000 Vent-free heater + _________ Btu/Hr...
-
Page 9: Ventilation Air
AIR FOR COMBUSTION AND VENTILATION WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANSI Z223.1/NFPA 54, the International Fuel Gas Code, or applicable local codes. -
Page 10: Installation
INSTALLATION NOTICE: This heater is intended CAUTION: This heater cre- for use as supplemental heat. ates warm air currents. These Use this heater along with your currents move heat to wall sur- primary heating system. Do not faces next to heater. Installing install this heater as your pri- heater next to vinyl or cloth wall mary heat source. -
Page 11: Locating Heater
INSTALLATION LOCATING HEATER FASTENING HEATER TO WALL This heater is designed to be mounted on a Mounting Bracket wall. You can locate heater on the floor, away The mounting bracket is located on back panel from a waill. An optional floor mounting stand of heater (see Figure 6). - Page 12 (concrete or masonry): Floor 1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or Models: MN180HPA and MN180TPA masonry), drill at least 1" deep. 2. Fold wall anchor as shown in Figure 9. " "...
- Page 13 INSTALLATION Installing Bottom Mounting Bracket 3. Insert wall anchor (wings first) into hole. 1. Install bottom bracket to heater bottom Tap anchor flush to wall. 4. For thin walls (1/2" or less), insert red with two screws. It may be more conve- key into wall anchor.
- Page 14 INSTALLATION CONNECTING TO GAS SUPPLY Before installing heater, make sure you have WARNING: A qualified ser- the items listed below: vice technician must connect • external regulator for propane/LP unit only heater to gas supply. Follow all (supplied by installer) local codes.
- Page 15 INSTALLATION Pressure Regulator 3/8" NPT Pipe Nipple Ground Joint Union Tee Joint Reducer Equipment Bushing to Test Gauge Shutoff Valve 1/8" NPT Connection* From Gas Meter 1/8" NPT (7" W.C. to Plug Tap 10.5" W.C. Pressure) Tee Joint Sediment Pipe Nipple 3"...
-
Page 16: Checking Gas Connections
INSTALLATION CHECKING GAS CONNECTIONS Test Pressures Equal To or Less Than WARNING: Test all gas piping 1/2 PSIG (3.5 kPa) and connections for leaks after 1. Close equipment shutoff valve (see Fig- ure 14). installing or servicing. Correct 2. Pressurize supply piping system by either all leaks at once. -
Page 17: Operation
OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING not use any phone in your building. WARNING: If you do not fol- • Immediately call your gas supplier low these instructions exactly, a from a neighbor’s phone. Follow the fire or explosion may result caus- gas supplier’s instructions. - Page 18 OPERATION Note: If pilot goes out, repeat steps 3 CAUTION: Do not try to ad- through 7. This heater has a safety inter- just heating levels by using the lock system. Wait one (1) minute before equipment shutoff valve. lighting pilot again. 8.
-
Page 19: Thermostat Control Operation
OPERATION Control Knob Figure 19 - Burner Patterns THERMOSTAT CONTROL OPERATION The thermostatic control used on these models differ from standard thermostats. Standard thermostats simply turn the burner on and off. The thermostat used on this heater senses the room temperature. At times the room may exceed the set temperature. If so, the burner will shut off. -
Page 20: Inspecting Heater
INSPECTING HEATER IMPORTANT: Owner’s should check pilot flame pattern and burner flame pattern often. Incorrect flame patterns indicate the need for cleaning (see Care and Maintenance, page 21) or service. WARNING: Only a qualified service person should service and repair heater. This includes maintenance requiring replacement or alteration of components. -
Page 21: Care And Maintenance
CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service techni- cian. -
Page 22: Troubleshooting
TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions. - Page 23 TROUBLESHOOTING Problem Possible Cause Corrective Action ODS/pilot lights but flame 1. Control knob is not fully 1. Press in control knob fully. goes out when control pressed in. knob is released. 2. Control knob is not pressed 2. After ODS/pilot lights, keep in long enough.
- Page 24 TROUBLESHOOTING Problem Possible Cause Corrective Action Gas odor during com- 1. Foreign matter between 1. Take apart gas tubing and bustion. control valve and burner. remove foreign matter. 2. Gas leak. (See Warning 2. Locate and correct all leaks Statement at top of page 23). (see Checking Gas Connec- tions, page 16).
-
Page 25: Replacement Parts
• Purchase date ACCESSORIES Purchase these heater accessories from your local dealer. If they can not supply these acces- sories, contact ProCom Heating, Inc. at 1-866-573-6074 for information. EQUIPMENT SHUTOFF VALVE For all models. Equipment shutoff valve with 1/8” NPT tap. -
Page 26: Parts
PARTS MODEL MN180HPA Burner Assembly Bu rn er Ass embly ODS Assembly www.usaprocom.com 200043-01A... - Page 27 PARTS MODEL MN180HPA This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 25 of this manual. ITEM PART # DESCRIPTION MB10054 Cabinet Assembly MB09002 Lower Front Panel MB11003...
- Page 28 PARTS MODEL MN300HPA ODS /P ilo t Asse mbly www.usaprocom.com 200043-01A...
- Page 29 PARTS MODEL MN300HPA This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 25 of this manual. ITEM PART # DESCRIPTION MB10051 Cabinet Assembly MB09051 Lower Front Panel MB11051 Reflector MB19001 Burner Assembly...
- Page 30 PARTS MODEL MN180TPA ODS /P ilo t Asse mbly Bu rn er Ass embly www.usaprocom.com 200043-01A...
- Page 31 PARTS MODEL MN180TPA This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 25 of this manual. ITEM PART # DESCRIPTION MB10055 Cabinet Assembly MB09002 Lower Front Panel MB11003 Reflector MB19003 Burner Assembly...
- Page 32 PARTS MODEL MN300TPA ODS /P ilo t Asse mbly www.usaprocom.com 200043-01A...
- Page 33 PARTS MODEL MN300TPA This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 25 of this manual. ITEM PART # DESCRIPTION MB10052 Cabinet Assembly MB09051 Lower Front Panel MB11051 Reflector MB19001 Burner Assembly...
- Page 34 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ www.usaprocom.com 200043-01A...
- Page 35 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ www.usaprocom.com 200043-01A...
-
Page 36: Warranty
We make no other warranty, expressed or implied. LIMITED WARRANTY ProCom Heating, Inc. warrants this product to be free from defects in materials and components for ONE (1) year from the date of first purchase, provided that the product has been properly installed by a qualified installer in accordance with all local codes and instructions furnished with the unit, operated and main- tained in accordance with all applicable instructions.
