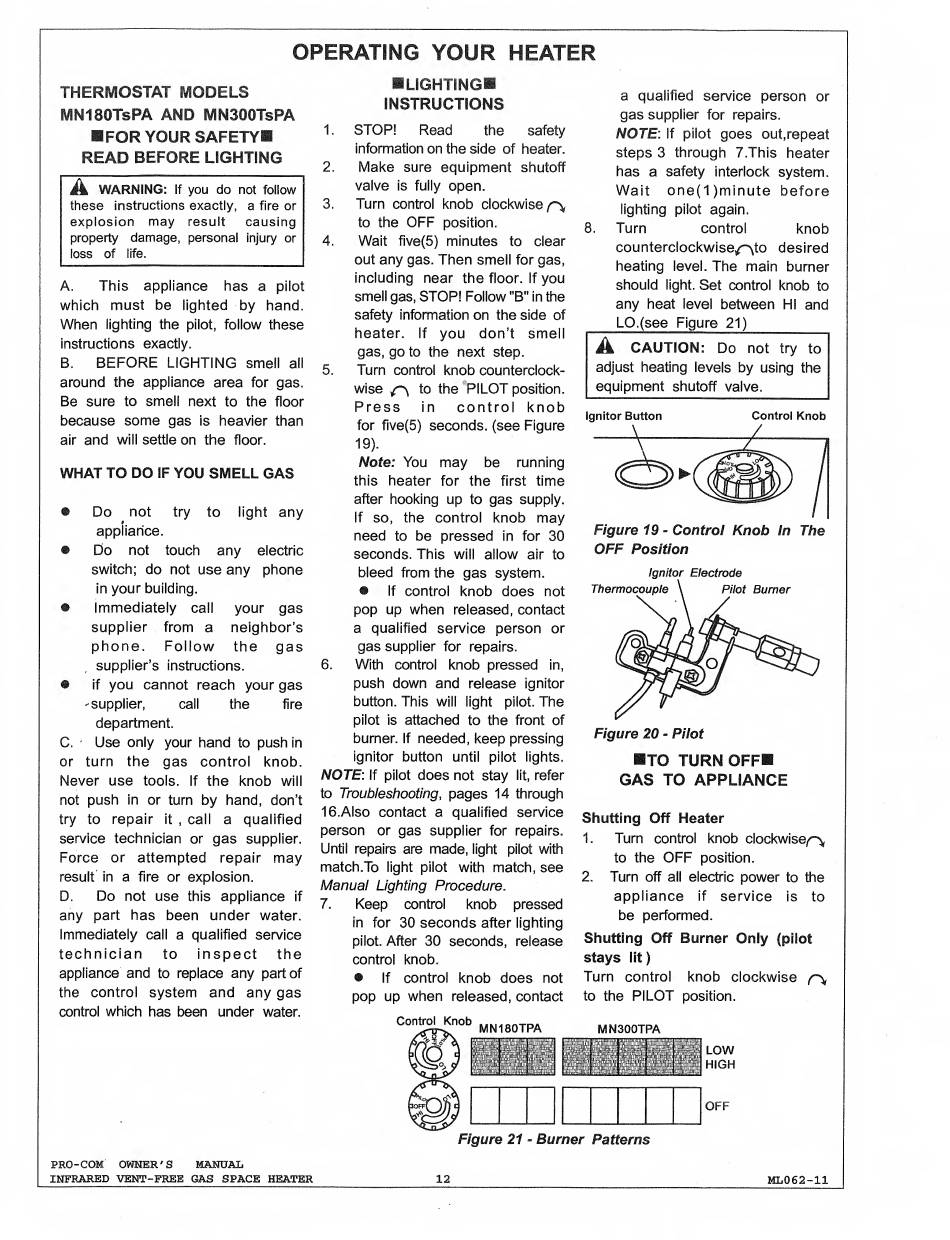

OPERATING YOUR HEATER
THERMOSTAT MODELS
MN180TsPA AND MN300TsPA
HFOR YOUR SAFETY®
READ BEFORE LIGHTING
A WARNING: If you do not follow
these instructions exactly, a fire or
explosion may result causing
property damage, personal injury or
loss of life.
A. This appliance has a pilot
which must be lighted by hand.
When lighting the pilot, follow these
instructions exactly.
B. BEFORE LIGHTING smell all
around the appliance area for gas.
Be sure to smell next to the floor
because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
® Do not try to light any
appliance.
# Do not touch any electric
switch; do not use any phone
in your building.
# Immediately cal! your gas
supplier from a neighbor's
phone. Follow the gas
supplier's instructions.
# if you cannot reach your gas
-supplier, call the fire
department.
C. Use only your hand to push in
or turn the gas control knob.
Never use tools. If the knob will
not push in or turn by hand, don't
try to repair it , call a qualified
service technician or gas supplier.
Force or attempted repair may
result in a fire or explosion.
D. Do not use this appliance if
any part has been under water.
Immediately call a qualified service
technician to inspect the
appliance and to replace any part of
the control system and any gas
control which has been under water.
PRO -COM OWNER'S MANUAL
INFRARED VENT-FREE GAS SPACE HEATER
■ LIGHTING®
INSTRUCTIONS
1. STOP! Read the safety
information on the side of heater.
2. Make sure equipment shutoff
valve is fully open.
3. Turn control knob clockwise/^
to the OFF position.
4. Wait five(5) minutes to clear
out any gas. Then smell for gas,
including near the floor. If you
smell gas, STOP! Follow "B" in the
safety information on the side of
heater, if you don't smell
gas, go to the next step.
5. Turn control knob counterclock¬
wise ^ to the PILOT position.
Press in control knob
for five(5) seconds, (see Figure
19).
Note: You may be running
this heater for the first time
after hooking up to gas supply.
If so, the control knob may
need to be pressed in for 30
seconds. This will allow air to
bleed from the gas system.
® If control knob does not
pop up when released, contact
a qualified service person or
gas supplier for repairs.
6. With control knob pressed in,
push down and release ignitor
button. This will light pilot. The
pilot is attached to the front of
burner. If needed, keep pressing
ignitor button until pilot lights.
NOTE: If pilot does not stay lit, refer
to Troubleshooting, pages 14 through
16.AISO contact a qualified service
person or gas supplier for repairs.
Until repairs are made, light pilot with
match.To light pilot with match, see
Manual Lighting Procedure.
7. Keep control knob pressed
in for 30 seconds after lighting
pilot. After 30 seconds, release
control knob.
® If control knob does not
pop up when released, contact
a qualified service person or
gas supplier for repairs.
NOTE: If pilot goes out,repeat
steps 3 through /.This heater
has a safety interlock system.
Wait one(1)minute before
lighting pilot again.
8. Turn control knob
counterclockwise/*^to desired
heating level. The main burner
should light. Set control knob to
any heat level between HI and
LO.(see Figure 21)_
A CAUTION: Do not try to
adjust heating levels by using the
equipment shutoff valve.
Figure 19 - Contro! Knob in The
OFF Position
Ignitor Electrode
■TO TURN OFF®
GAS TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise/^
to the OFF position.
2. Turn off all electric power to the
appliance if service is to
be performed.
Shutting Off Burner Only (pilot
stays lit)
Turn control knob clockwise ^
to the PILOT position.
Figure 21 ~ Burner Patterns
LOW
HIGH
OFF
12
ML062-11
