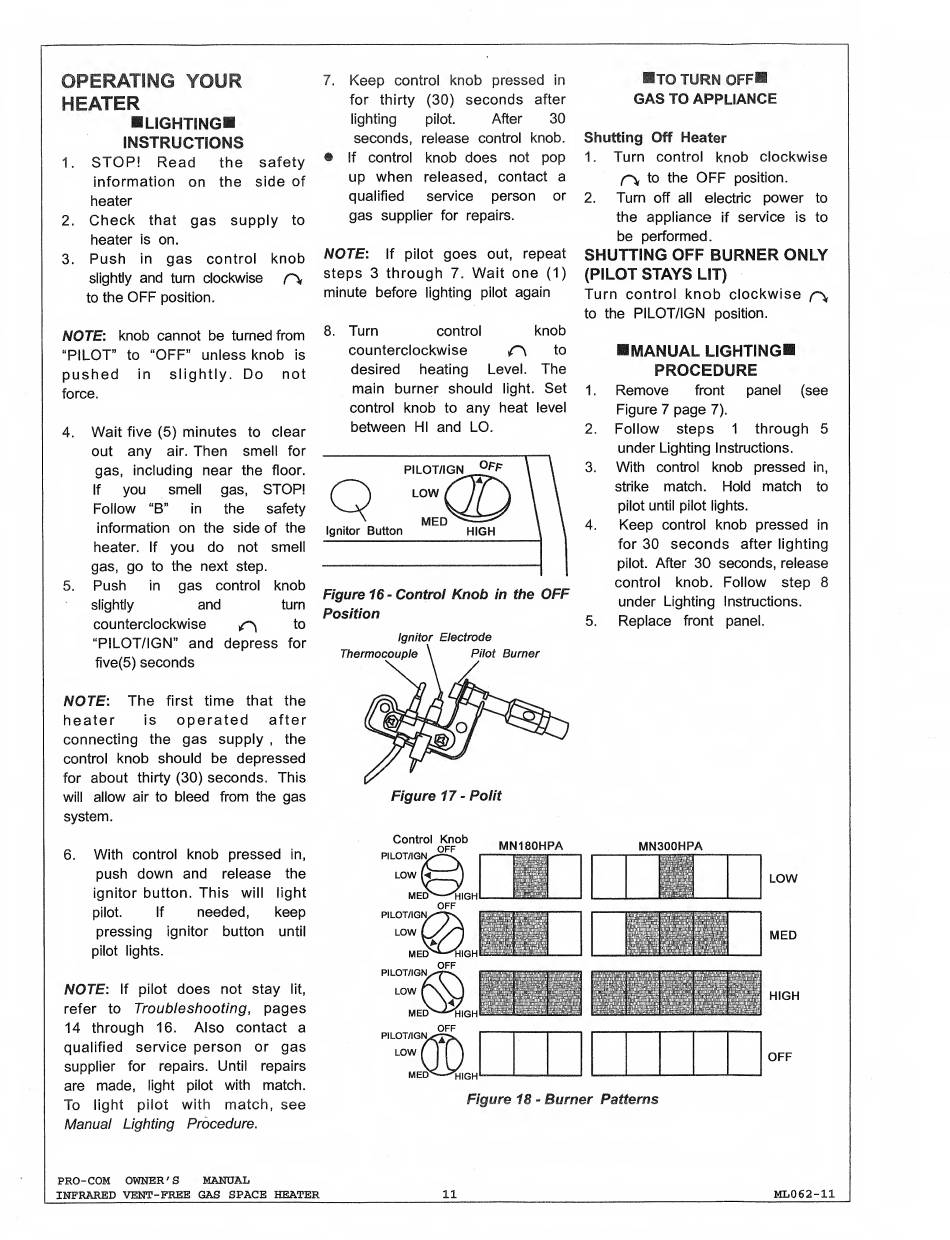

OPERATING YOUR
HEATER
ILIGHTING®
INSTRUCTIONS
1 3
jQpj Read the safety
information on the side of
heater
2. Check that gas supply to
heater is on,
3. Push in gas control knob
slightly and turn clockwise
to the OFF position.
NOTE: knob cannot be turned from
"PILOT" to "OFF" unless knob is
pushed in slightly. Do not
force.
4. Wait five (5) minutes to clear
out any air. Then smell for
gas, including near the floor.
If you smell gas, STOP!
Follow "B" in the safety
information on the side of the
heater. If you do not smell
gas, go to the next step.
5. Push in gas control knob
slightly and turn
counterclockwise to
"PILOT/IGN" and depress for
five(5) seconds
NOTE: The first time that the
heater is operated after
connecting the gas supply , the
control knob should be depressed
for about thirty (30) seconds. This
will allow air to bleed from the gas
system.
6. With control knob pressed in,
push down and release the
ignitor button. This will light
pilot. If needed, keep
pressing ignitor button until
pilot lights.
NOTE: If pilot does not stay lit,
refer to Troubleshooting, pages
14 through 16. Also contact a
qualified service person or gas
supplier for repairs. Until repairs
are made, light pilot with match.
To light pilot with match, see
Manual Lighting Procedure.
PRO" COM OPENER'S MANUAL
INFRARED VENT-FREE GAS SPACE HEATER
7. Keep control knob pressed in
for thirty (30) seconds after
lighting pilot. After 30
seconds, release control knob.
® If control knob does not pop
up when released, contact a
qualified service person or
gas supplier for repairs.
NOTE: If pilot goes out, repeat
steps 3 through 7. Wait one (1)
minute before lighting pilot again
8. Turn control knob
counterclockwise to
desired heating Level. The
main burner should light. Set
control knob to any heat level
between HI and LO.
Figure 16- Control Knob in the OFF
Position
Ignitor Electrode
■to TURN OFF^
GAS TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise
Pv to the OFF position.
2. Turn off all electric power to
the appliance if service is to
be performed.
SHUTTING OFF BURNER ONLY
(PILOT STAYS LIT)
Turn control knob clockwise
to the PILOT/IGN position.
HIVIANUAL LIGHTINGH
PROCEDURE
1. Remove front panel (see
Figure 7 page 7).
2. Follow steps 1 through 5
under Lighting Instructions.
3. With control knob pressed in,
strike match. Hold match to
pilot until pilot lights.
4. Keep control knob pressed in
for 30 seconds after lighting
pilot. After 30 seconds, release
control knob. Follow step 8
under Lighting Instructions.
5. Replace front panel.
Figure 17- Poiit
Control Knob
OFF
PILOT/IGN> -
LOW
OFF
PILOT/IGN/"*"^
MN180HPA
MN300HPA
MED^
^HIGH
OFF
PILOT/IGN^s:^2^
LOW
f
LOW
MED
HIGH
OFF
Figure 18 - Burner Patterns
