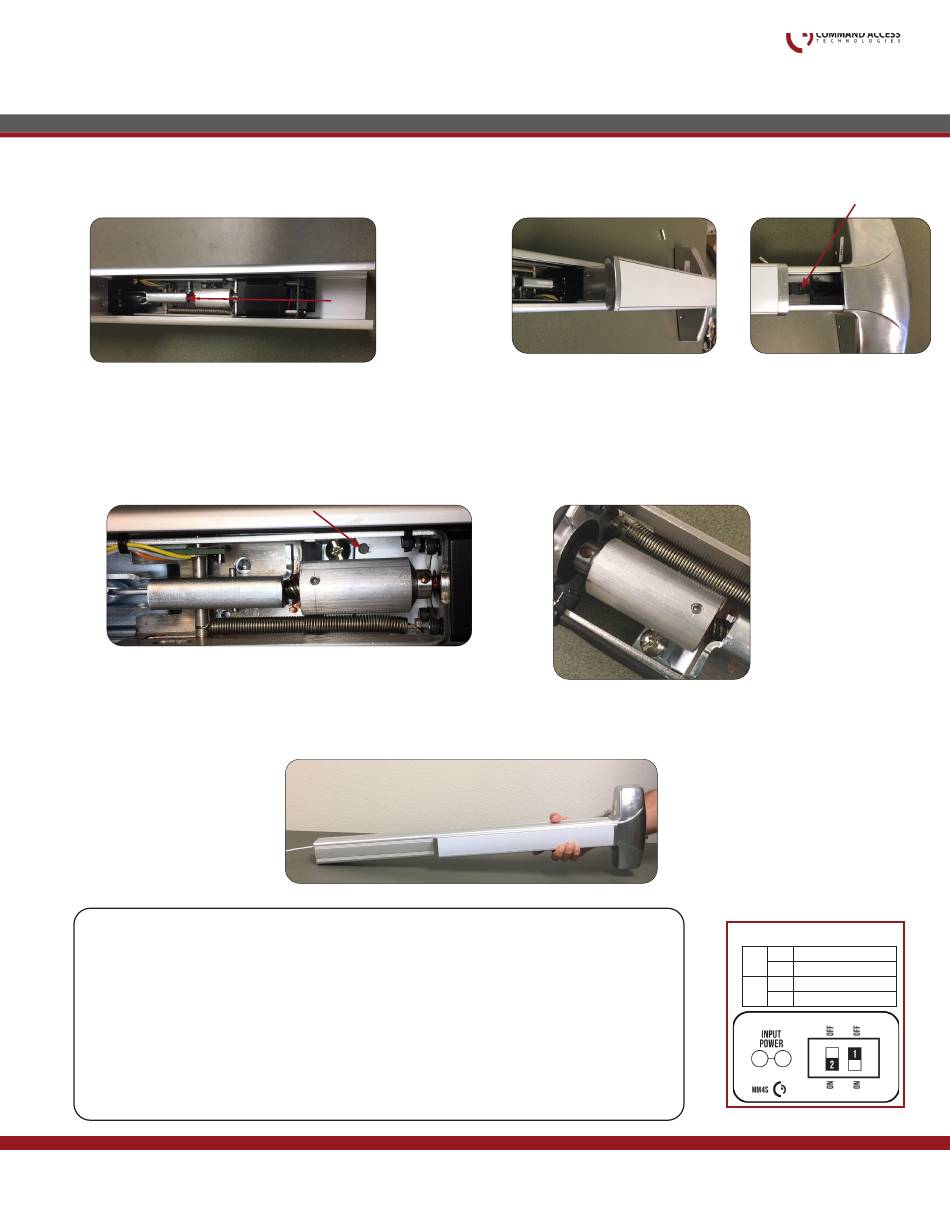

Command access MLRK1 Insert Instructions page 6

Flip back over and slide push pad with motor back into
11.
exit device.
13. Once push pad is back inside device and the screw lines up with existing hole, (A) tighten back
screw to hold motor in place.(B)
A.
EXISTING HOLE
14.
Slide filler plate back into place. Connect to power supply to test and set PTS position using the instructions
below, remembering to turn the Programming Switch to the off position when
Select your preferred torque mode (ships in standard torque) Press the device push pad to the
Step 1-
desired setting. (Recommend to fully depress and release 5%, giving the device room for
changing door conditions.)
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 2-
Continue to keep pad depressed, the device will beep 6 times. After the beeps have
Step 3-
stopped, release the pad and now the adjustment is complete. If not to your liking repeat the
three steps.
Once you found the correct location, flip the dip switches to off to lock programming.
Step 4-
C o m m a n d A c c e s s T e c h n o l o g i e s | 2 2 9 0 1 L a P a l m a A v e , Y o r b a L i n d a , C A 9 2 8 8 7 | P h o n e : ( 8 8 8 ) 6 2 2 - 2 3 7 7
Command Access is not a licensee, or affiliated, associated or connected with Allegion, Assa Abloy, Stanley, Schlage, Falcon, Von Duprin, Dorma, Sargent, Corbin Russwin, Yale, Emtek, Adams Rite, Best, Precision, Arrow,
Design Hardware, Cal Royal, Jackson, AHT, Marshall Best, Marks, Accurate, Baldwin, FSB, PDQ, Lawrence, Trans Atlantic, Hager, LSDA, General Lock, or Omnia or any of their subsidiaries or affiliates.
Installation Instructions
Setting PTS
Push all the way to the front of device (A) and push
12.
latcharm under top of pad. (B)
A.
B.
completed.
LATCHarm
B.
MM4S SWITCHES
OFF
1
STANDARD TORQUE
ON
HIGH TORQUE
ON
2 PTS PROGRAMMING ON
OFF
PTS PROGRAMMING OFF
