Command access MLRK1 Insert Instructions page 3

Ceiling Tile
Cable to monitor optional switches with 2 wires/switch (i.e. REX, REE, LBM, etc)
C o m m a n d A c c e s s T e c h n o l o g i e s | 2 2 9 0 1 L a P a l m a A v e , Y o r b a L i n d a , C A 9 2 8 8 7 | P h o n e : ( 8 8 8 ) 6 2 2 - 2 3 7 7
Command Access is not a licensee, or affiliated, associated or connected with Allegion, Assa Abloy, Stanley, Schlage, Falcon, Von Duprin, Dorma, Sargent, Corbin Russwin, Yale, Emtek, Adams Rite, Best, Precision, Arrow,
Design Hardware, Cal Royal, Jackson, AHT, Marshall Best, Marks, Accurate, Baldwin, FSB, PDQ, Lawrence, Trans Atlantic, Hager, LSDA, General Lock, or Omnia or any of their subsidiaries or affiliates.

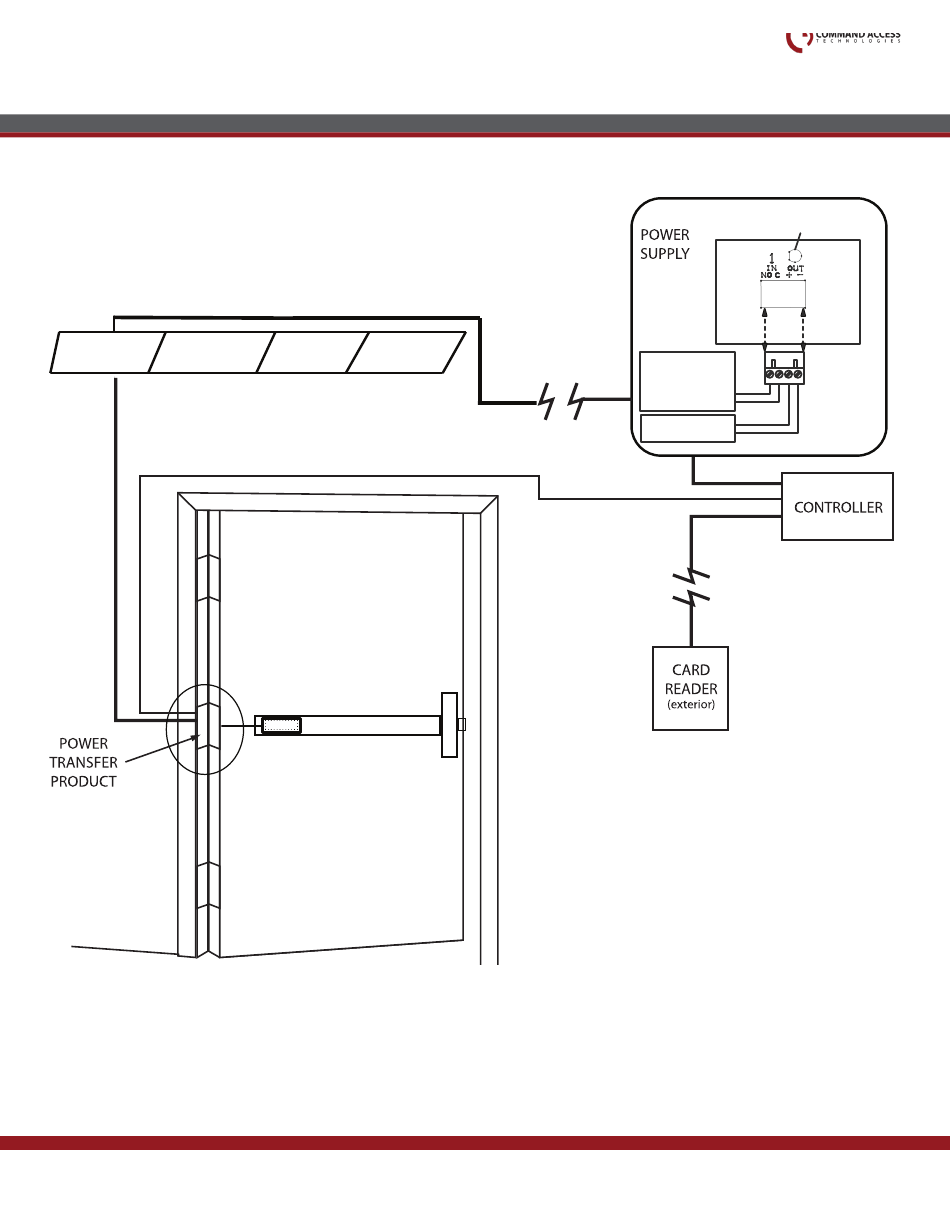

Electrified Exit Device
Installation Example
Module
CAT
NORMALLY OPEN
DRY CONTACT FROM
ACCESS CONTROL
SYSTEM
NO VOLTAGE
LOCKING
HARDWARE
SWITCHES: .5 A 24VAC/DC
REX: Green - Common (C)
Blue - Normally Open (NO)
Gray - Normally Closed (NC)
LBM: Green/Black - Common (C)
Blue/Black - Normally Open (NO)
Gray/Black - Normally Closed (NC)
REE: Green - Common (C)
Blue - Normally Open (NO)
Gray - Normally Closed (NC)
GREEN
CHANNEL 1
LED
+
-
