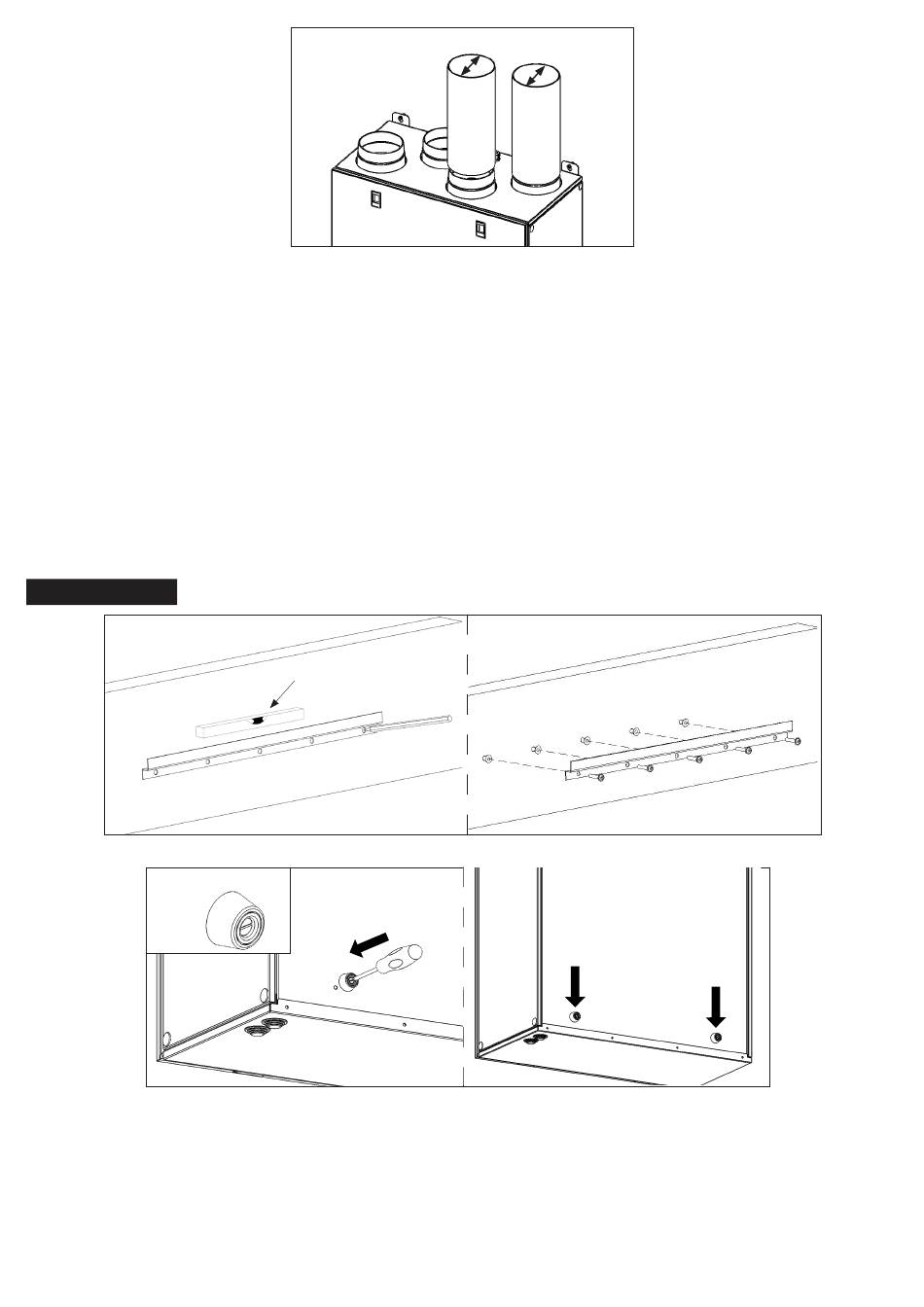

5.a Prepare the surface where the unit is to be mounted. Make sure that the surface is flat, levelled and that it supports the
weight of the unit. Perform the installation in accordance with local rules and regulations.
5.b Drill the holes in the wall.
5.c Use appropriate wall plugs and screws (not supplied).
5.d Fix the 2 spacers on the back of the unit.
5.e Hang the unit to the wall by means of the fixing brackets.
5.f Screw safely.
5.g Make sure that the unit is at spirit level.
5.h Connect the unit to the duct system. Make sure that all necessary accessories are used to create a functional ventilation
solution.
Connect the unit electrically according to § 5.4. Check that it starts up correctly.
If needed, it is always possible to connect the condensation drain joints placed in the bottom side of the unit
(paragraph 3.3) to a U-bend on the condensation drainage pipe.
In this case remove the relevant stopper.
QR590E
Fig. 5.j
Spacers
2x
Fig. 5.k
Ø125mm
Fig. 5.h
Spirit level
Ø125mm
