Rear Connectors Panel - Mecmesin OmniTest 0.5 User Manual

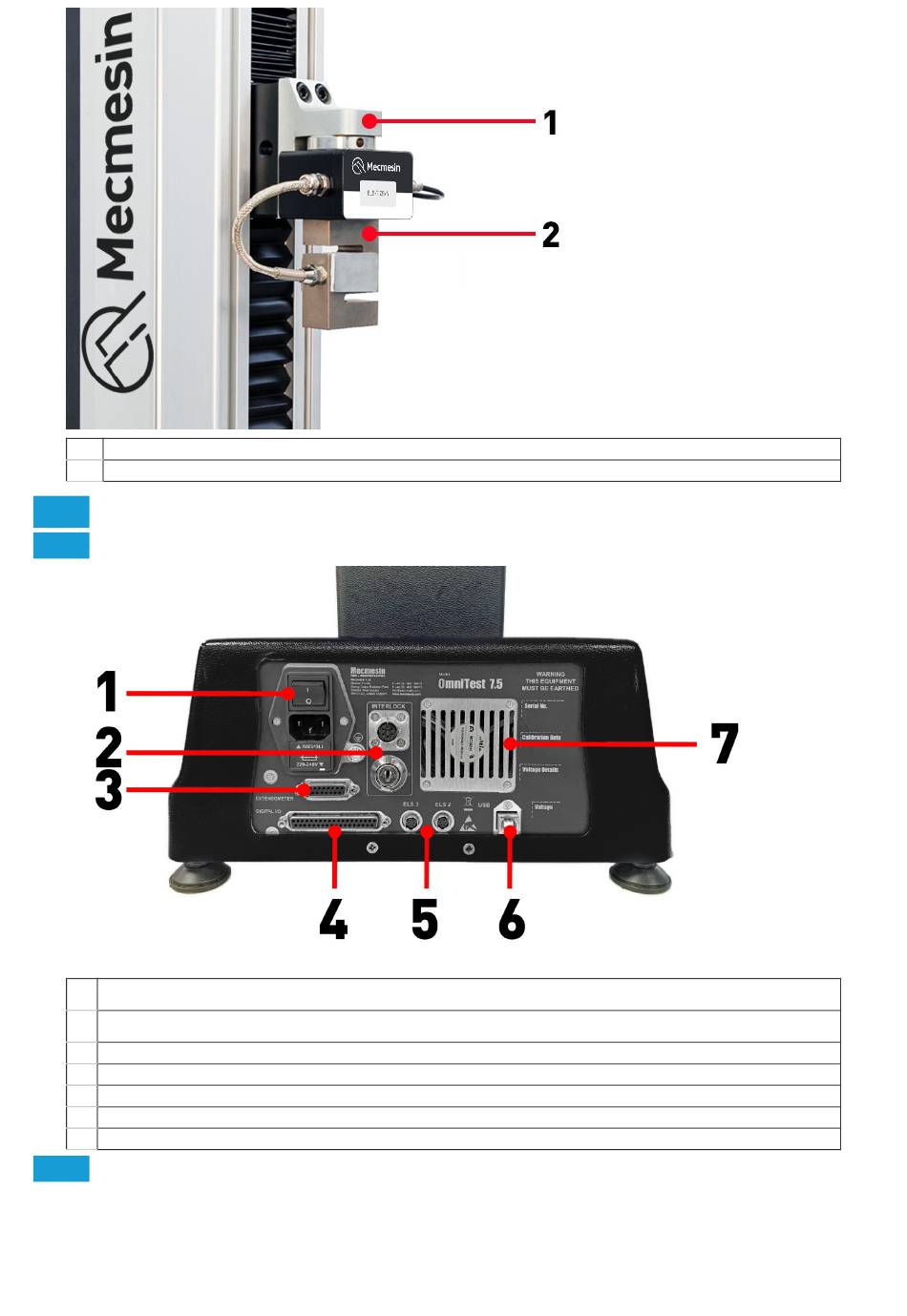

1 1 7.5kN Crosshead adaptor
2 2 ELS-T Series load cell
3.3

Rear Connectors Panel

3.3.1
OmniTest 5 and 7.5
1 1 Inlet Mains filter and On/Off switch
2 2 Guard Interlock connector and Override Key
3 3 Extensometer input port
4 4 Digital I/O port (not currently implemented)
5 5 Additional ELS input ports
6 6 USB-B communication port (for use with VectorPro™ software)
7 7 System extraction fan (Do not obstruct!
3.3.2
OmniTest 0.5, 1 and 2.5
Do not obstruct!)
9
