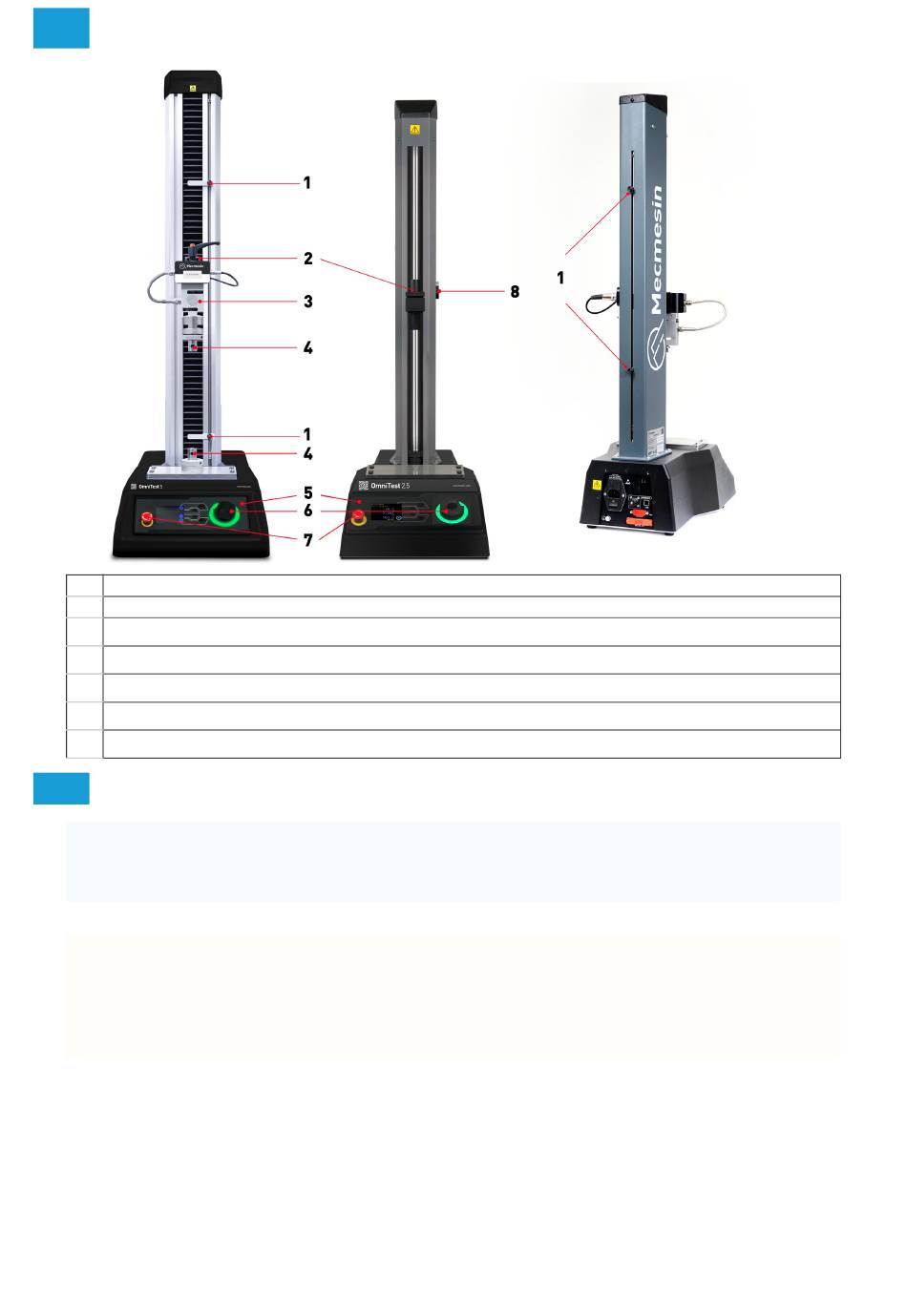

System Diagrams

1 1 Upper and lower limit switch settings
2 2 Moving crosshead mounting
3 3 ELS (Enhanced Load Sensor) ELS- S series shown fitted with dovetail mounting system
4 4 Upper and lower QC type 'C' grip mounting
5 5 Front control panel and display
6 6 Multi-function scroll wheel
7 7 Emergency-stop switch
3.1
OmniTest 0.5, 1.0, 2.5 and 5 System Details
The OmniTest 0.5,1.0, 2.5 and 5 test systems use a conventional Mecmesin dovetail mount fitting on
the moving crosshead.
The OmniTest 0.5 has a maximum force capacity up to 500N (112.4 lbf).
The OmniTest 1.0 has a maximum force capacity up to 1000N (225 lbf).
The OmniTest 2.5 has a maximum force capacity up to 2500N (562 lbf).
The OmniTest 5 test stand has a maximum force capacity up to 5000N (1124 lbf).
