12.5.9.1
Screen description
Select [Advanced] (PF menu) from the [FLOW] key main screen when not in "DIRECT"
mode to open the advanced screen shown in Fig. 12.5.14.

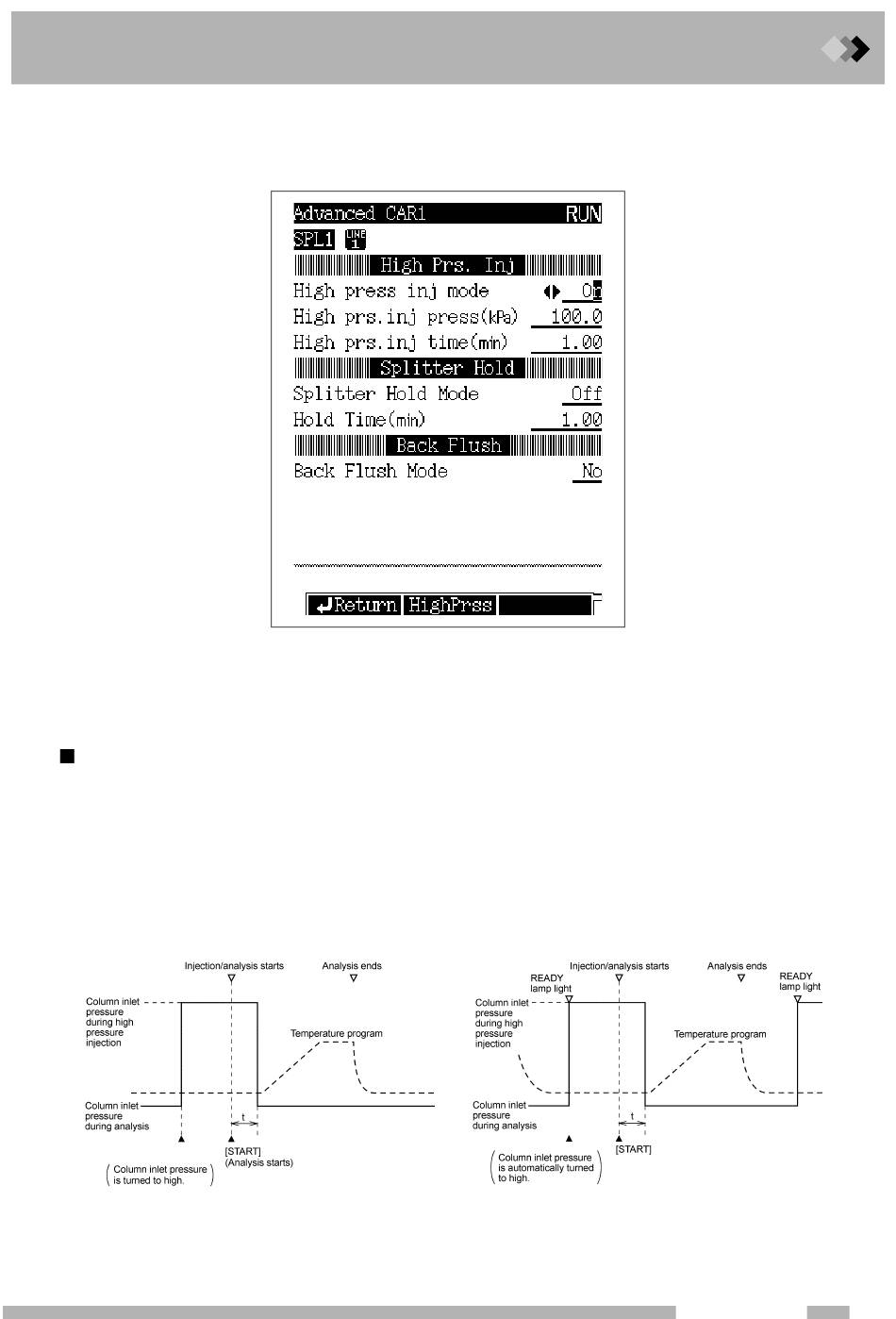

Fig. 12.5.14 Setup screen for high pressure injection and splitter fix mode
12.5.9.2
Parameter list
High Pressure Injection
HIGH PRESS INJECTION MODE
Select One of the following three modes.
Off : Disables high pressure injection.
On : Sets the column inlet pressure for high pressure injection immediately.
Auto : Immediately sets the column inlet pressure for high pressure injection. When analysis
is finished and the GC returns to the ready state, the column inlet pressure
automatically increases.
HIGH PRESS INJECTION MODE = On
12.5 Split/Splitless Injection System
HIGH PRESS INJECTION MODE = Auto
