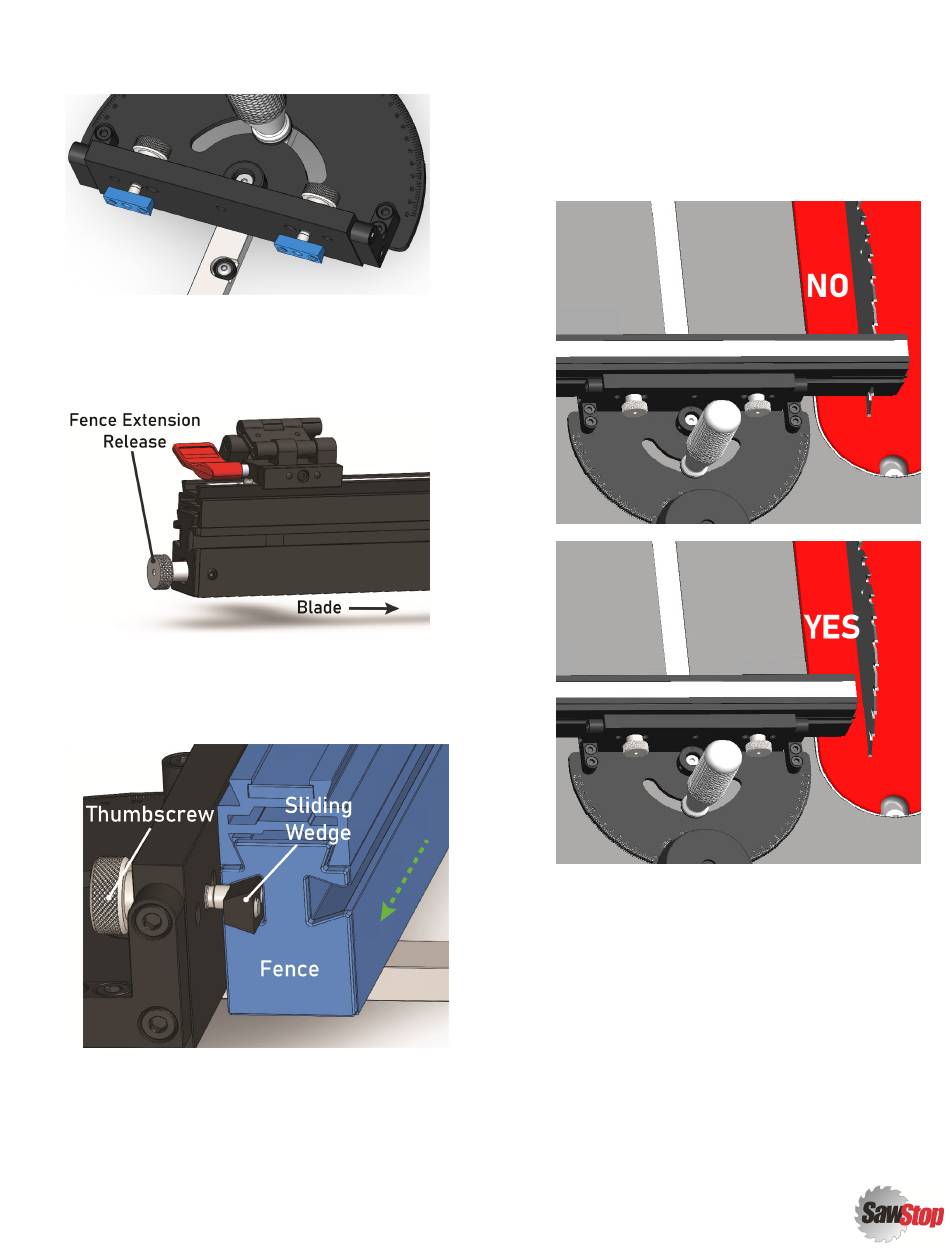

3. Repeat steps 1 and 2 using a second
and as shown.
Sliding Wedge
4. Orient the
Fence Assembly
facing up and the end with the silver, knurled
Fence Extension Release
(furthest from the blade).
5. Align the dovetail shaped slot in the back of the
with the pair of
Fence Assembly
you installed in step 2. Slide the
through the slot.
Thumbscrew
such that the ruler is
is positioned at left
Sliding Wedges
Sliding Wedges
6. With the machine powered off, place the miter
gauge into the miter slot of your machine. Move
the miter gauge down the length of the miter
slot and confirm that no part of the
is in the path of the blade. See
Assembly
additional details about USING THE FENCE
SYSTEM on page 14.
7. Adjust the
Fence Assembly
needed, then tighten the
back side of the
Miter Gauge Body
fence from moving during cutting operations.
Revolution Miter Gauge Owner's Manual
Fence
to the left or right as
on the
Thumbscrews
to secure the
|
9
