RETRACT THE FLIP STOP

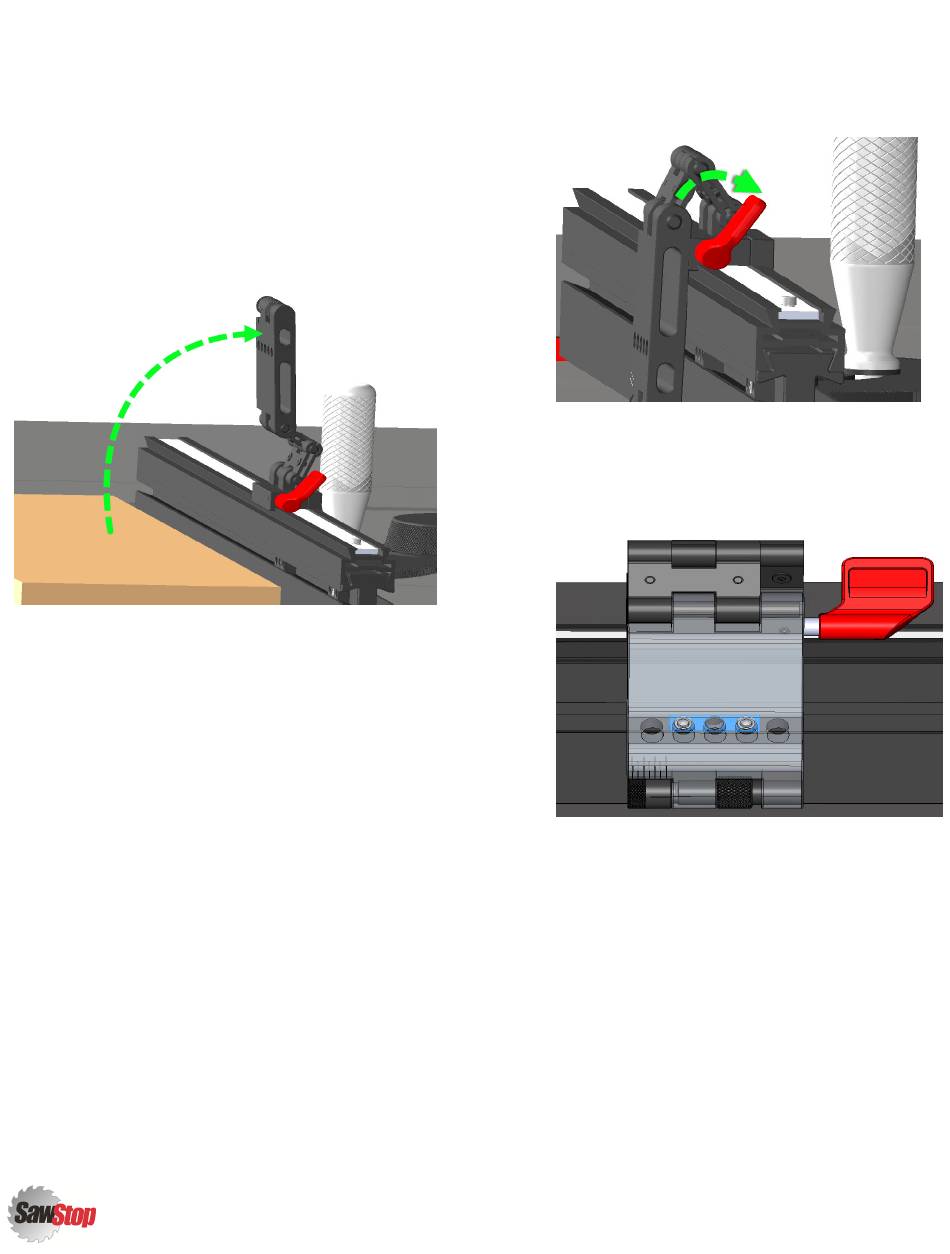

The flip stop is hinged for your convenience so that it can
be easily moved out of the way. In between cuts of a
specific length as set by the flip stop position, you may
have an ad-hoc need for cutting a larger workpiece that
requires the unobstructed, full-length support of the
. In that event, you can retract the flip stop
Fence Assembly
as shown then move it back into position when resuming
fixed-length cuts.

ADVANCED FEATURES

Building on the basic functions you learned in the
previous chapter, this chapter discusses additional,
optional features of the Revolution Miter Gauge.

MAKING FLIP STOP PRESETS

SCENARIO: Your project calls for alternating between
multiple, fixed-length cuts using the flip stop. Your
common required cut lengths are 8", 12", and 18".
PROCEDURE: Use the instructions below to make flip
stop presets at 8", 12", and 18". For this procedure, you'll
need 3 of the spare
Sliding Wedges
(included).
Thumbscrew
|
18 Revolution Miter Gauge Owner's Manual
and the spare
1. Referencing the built-in ruler, set the flip stop at
8". Move the red flip stop release lever to the 2
o'clock position as shown to secure the flip stop
in place.
2. Insert a spare
Sliding Wedge
front of the
Fence Assembly
the flip stop. Align the center hole of the
(highlighted in blue) with the center hole
Wedge
on the front of the flip stop.
into the slot on the
and position it behind
Sliding
