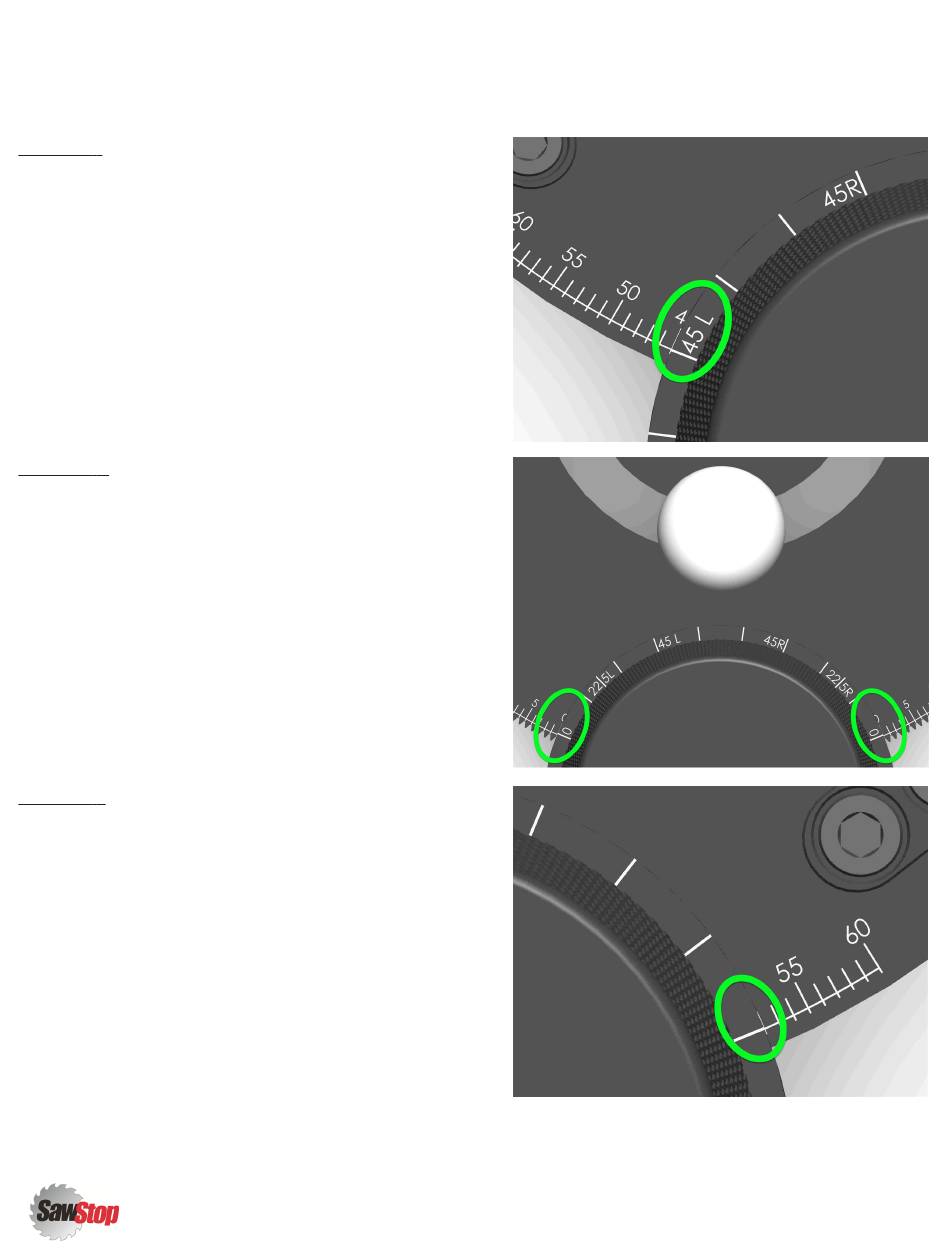

Reading the Miter Angle

Read the miter gauge where the numbers on the body/protractor align with the edge of the
EXAMPLE 1: 45° on the protractor is aligned with the edge of
the
indicating that the miter is set for 45° left
Miter Angle Dial
angle.
For this, and other common miter angles (e.g. 22.5° and 30°),
note that there are also markings around perimeter of the
. (These dial markings should be ignored when
Miter Angle Dial
setting other angles.) In this example, the 45L marking on the
dial is aligned with the arc-shaped line on the protractor.
The dual indication described in this example only applies to
miter angles at full degree increments.
EXAMPLE 2: 0° on the protractor is aligned with the edge of
the
indicating that the miter is set for 0
Miter Angle Dial
degrees.
As in first example, the 0 marking on the edge of the
is also aligned with the arc-shaped line on the
Angle Dial
protractor.
EXAMPLE 3: 52° on the protractor is aligned with the edge of
the
indicating that the miter is set for 52° right
Miter Angle Dial
angle.
|
12
Revolution Miter Gauge Owner's Manual
