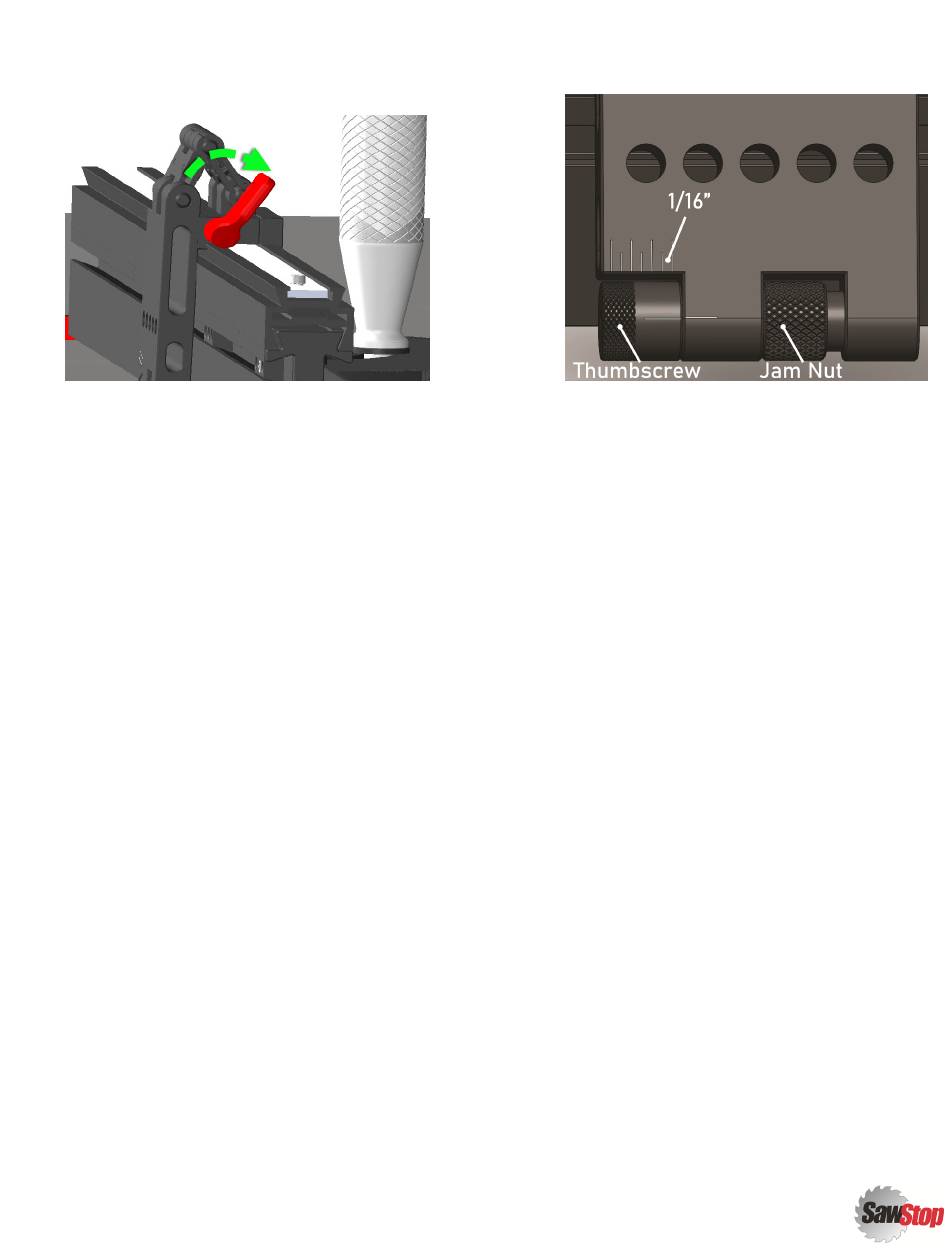

3. Move the red flip stop release lever to the 2
o'clock position as shown to secure the
in place.
Assembly
4. The
Flip Stop Assembly
jointed hinge*. Ensure that the flip stop is folded
down as shown above so that it is flush to the
face of the main fence extrusion.
* The double-jointed hinge design can accommodate an
optional, user-provided, sacrificial fence attached to the
main
extrusion. See USING THE FENCE
Fence Assembly
SYSTEM on page 14 for instructions.
POSITION THE FLIP STOP - FINE
ADJUSTMENTS
The fine adjustment feature for the flip stop of your
Revolution Miter Gauge offers a greater precision not
achievable with the method for positioning the
described above. Use the following steps to
Assembly
take advantage of this precision feature.
1. Set a rough position for the
following the instructions in the Position the Flip
Stop - Gross Adjustments section above.
Flip Stop
employs a unique double-
Flip Stop
Flip Stop Assembly
2. Back off the knurled
adjustment by turning it counter-clockwise.
3. By rotating the black, knurled
tip of the fine adjustment shaft, you can shift the
cut length to be shorter.
There are four horizontal markings
l
around the circumference of the
adjustment barrel at 1/64" intervals.
One full revolution of the fine adjustment
l
barrel = 1/16".
Reference the vertical 1/16" markings on
l
the flip stop just above the
help count how many full revolutions
from the flush position you have turned
the adjustment barrel.
4. When the desired adjustment is set, re-tighten
the jam nut that you loosened in step 2.
Revolution Miter Gauge Owner's Manual
on the precision
Jam Nut
at the
Thumbscrew
Thumbscrew
|
17
