Should you need to use the miter gauge in the right-side
miter slot, use the same installation method described
earlier in this manual, with the exception of the
orientation. Instead, the silver, knurled knob at
Assembly
the end of the fence should be positioned at the right
(furthest from the blade) before guiding the slot in the
fence onto the
Sliding Wedges
Once the
Fence Assembly
above, fold the flip stop over so that it is once again
forward facing.

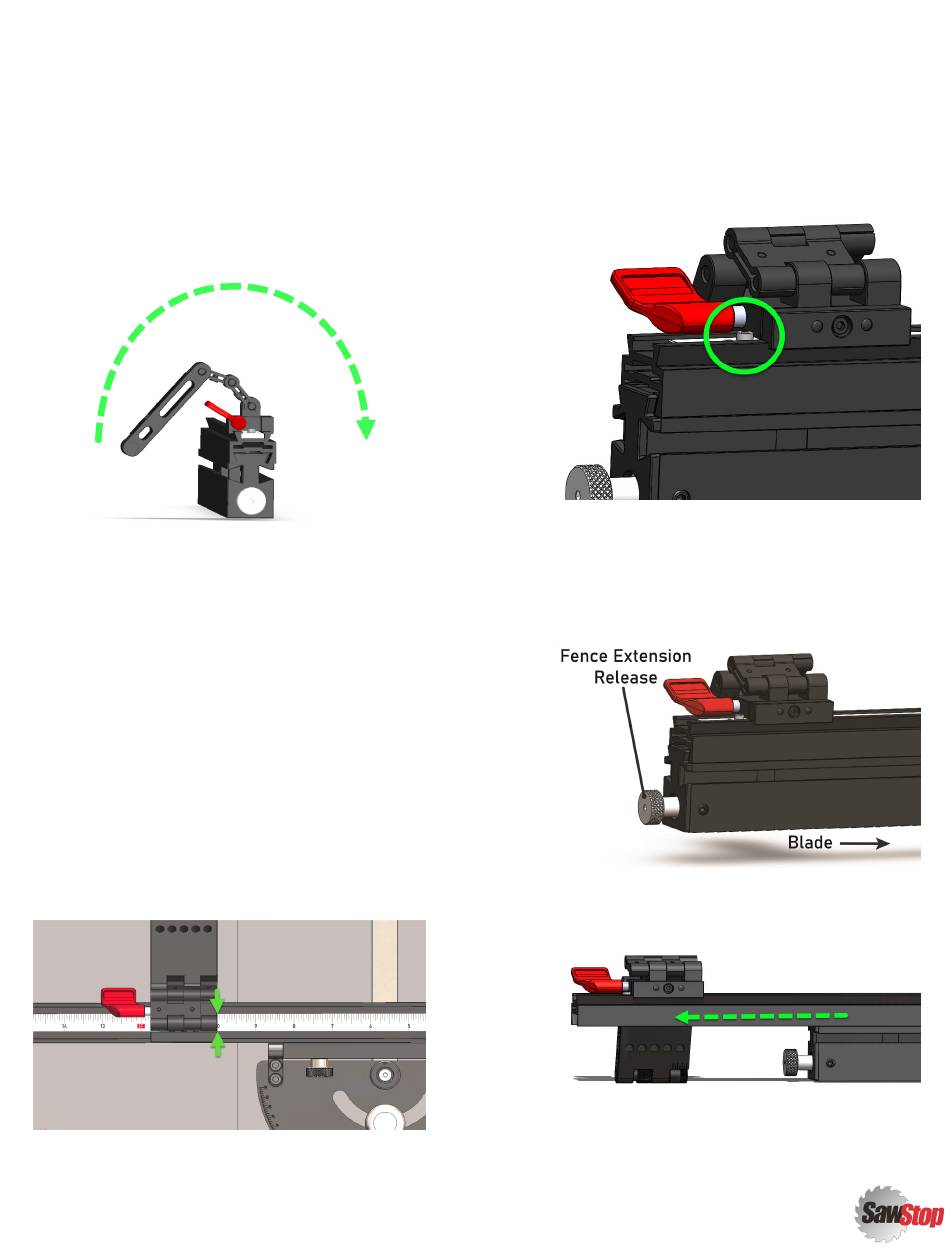

USING THE FENCE EXTENSION

The fence extension works in tandem with the adjustable
flip stop. To ensure you get full advantage of these
features, be sure to read and understand both this
chapter and the chapter for POSITION THE FLIP STOP -
GROSS ADJUSTMENTS on the next page.
The fence extension is used in conjunction with the flip
stop to give you repeatable, fixed-length cuts that are
longer than would be possible without the extension.
When using the flip stop without extending the fence, you
can make fixed-length cuts from 0-19.5". In this range,
the measurement for the flip stop setting is read at the
edge of the adjustable flip stop carrier that is closest to
the blade.
Fence
.
has been reversed as described
The fence extension comes into play when fixed-length
cuts longer than 19.5" are required. Follow the steps
below to set your flip stop and fence for this extended cut
capacity.
1. Move the
Flip Stop Assembly
the
Fence Assembly
cap screw near the end of the fence rail.
2. Move the red flip stop release lever to the 2
o'clock position to secure the
in place.
3. Loosen the silver
rotating it counter-clockwise.
4. Draw the upper portion of the
extrusion to the side to extend the fence.
Revolution Miter Gauge Owner's Manual
across the top rail of
until it is against the small
Flip Stop Assembly
Fence Extension Release
Fence Assembly
|
15
