Steps for Adjustment

1. Place the miter bar into the slot of the machine
you intend to use the Revolution Miter Gauge
with.

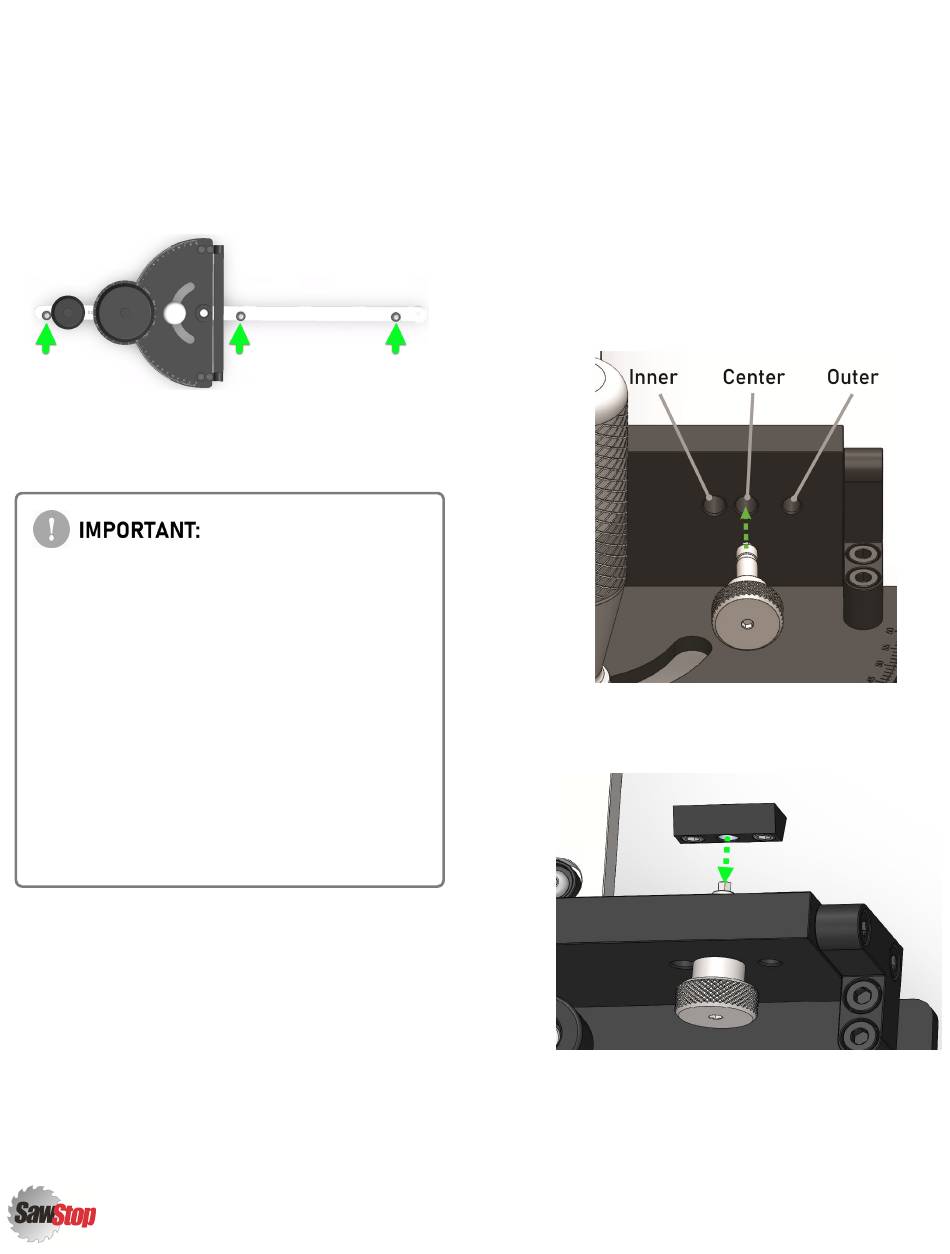

2. Using the provided 2.5mm hex wrench, fully
tighten each of the three discs along the length
of the miter bar.
Begin with the middle adjustment disc, then
adjust the front disc. Adjust the disc at the rear of
the miter bar last.
The optimal fit strikes a balance between
minimizing side-to-side play of the miter bar while
preserving easy travel of the miter gauge along
the length of the miter slot. If the miter gauge
offers too much friction when passing material
across the table of your machine, loosen the
adjustment described above to relieve the
excessive friction.
If you're having trouble optimizing the fit, try using
a piece of paper as a spacer between each
adjustment disc and the side of the miter slot
when performing this procedure.
|
8
Revolution Miter Gauge Owner's Manual

ATTACH AND ADJUST THE FENCE

The setup described here assumes the miter gauge will
be used in the miter slot to the left of the blade. If your
use case requires setting up your miter gauge for use in
the right side miter slot, see the instructions for
Reversing the Fence Orientation on page 14.
Follow the steps below to attach the black, aluminum-
extruded
Fence Assembly
1. From the back of the
silver, knurled
Thumbscrew
hole indicated in the illustration below.
2. At the front of the
thread one of the
the knurled
Thumbscrew
to the body of the miter gauge.
, insert a
Vertical Faceplate
through the "Center"
, loosely
Vertical Faceplate
onto the tip of
Sliding Wedges
.
