ASSEMBLY & INSTALLATION
In this section, you will be instructed on how unpack and prepare your Revolution Miter Gauge (RMG) for use.

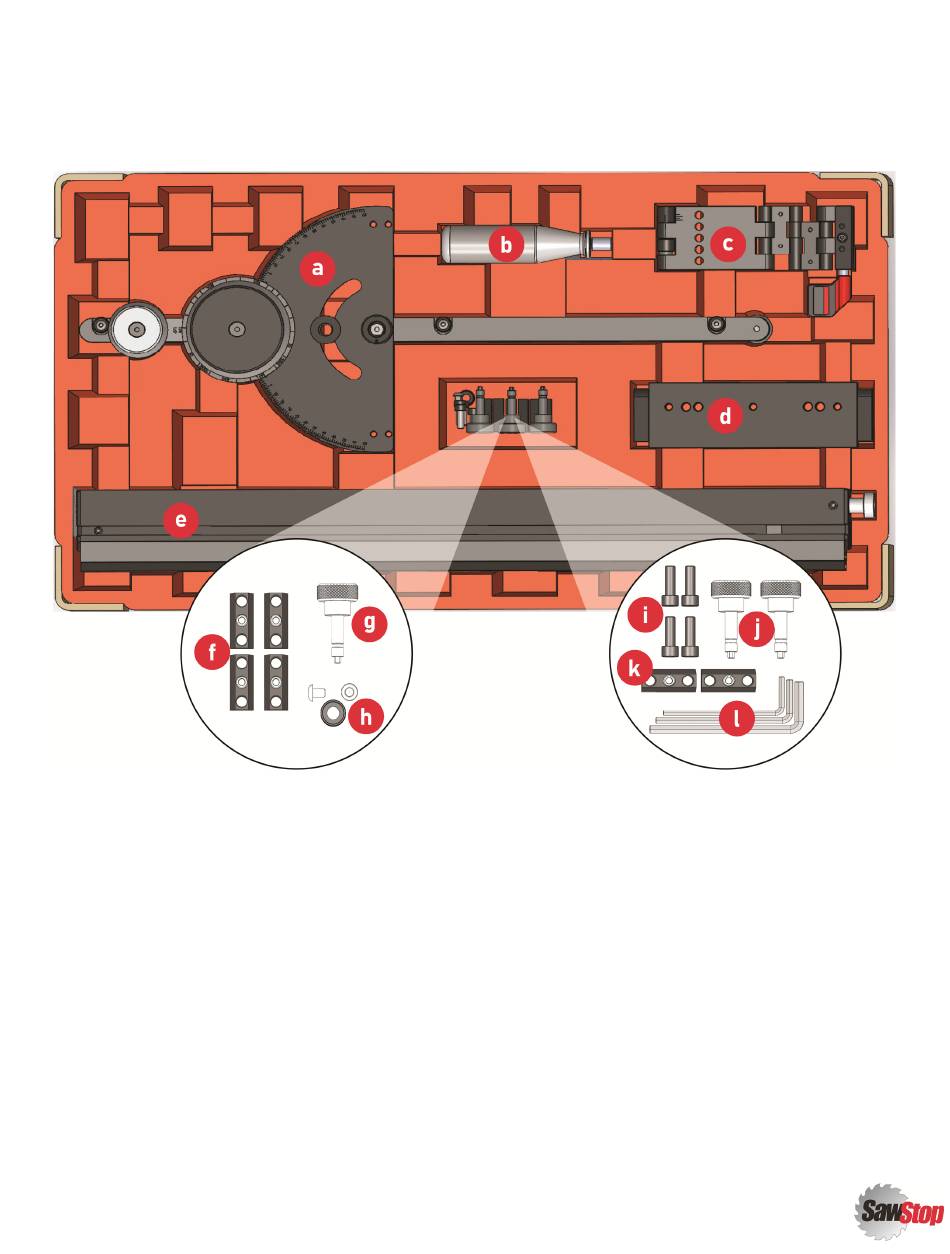

UNPACKING - WHAT'S IN THE BOX
Included with your Revolution Miter Gauge are the following items. Unpack your miter gauge and confirm that everything
is accounted for.
Major Components:
a. Miter Gauge Body (pre-assembled)
b. Grip
c. Flip Stop Assembly
d. Vertical Faceplate
e. Fence Assembly
Spare Parts Bag Containing:
f. Sliding Wedge (4)
g. Thumbscrew (1)
h. Replacement Miter Bar Adjustment Disc Kit
Assembly Parts Bag Containing:
i. Socket-Head Bolt, M5, 14mm (4)
j. Thumbscrew (2)
k. Sliding Wedge (2)
l. Hex Wrenches: 2.5mm, 3mm, and 4mm
Revolution Miter Gauge Owner's Manual
|
5
