REGISTER MAP TAB

See Figure 10 for the Register Map (22) tab.
Register Tree
The register tree (23) control shows the full register map in a
tree control. Each register is shown. Click the expand button next
to each register to show all the bit fields contained within that
register (see Figure 10).
Register
The Register (24) control allows you to change the individual
bit of the register selected in the register tree (23). Click on the
bit in the register tree (23) or program the register value directly
into the number control on the right (see Figure 10).
Bitfields
The Bitfields (25) list shows all the bit fields of the register
selected in the register tree (23). Change the values using the
drop-down menu or by directly entering a value into the Value
number control on the right (see Figure 10).
22
28

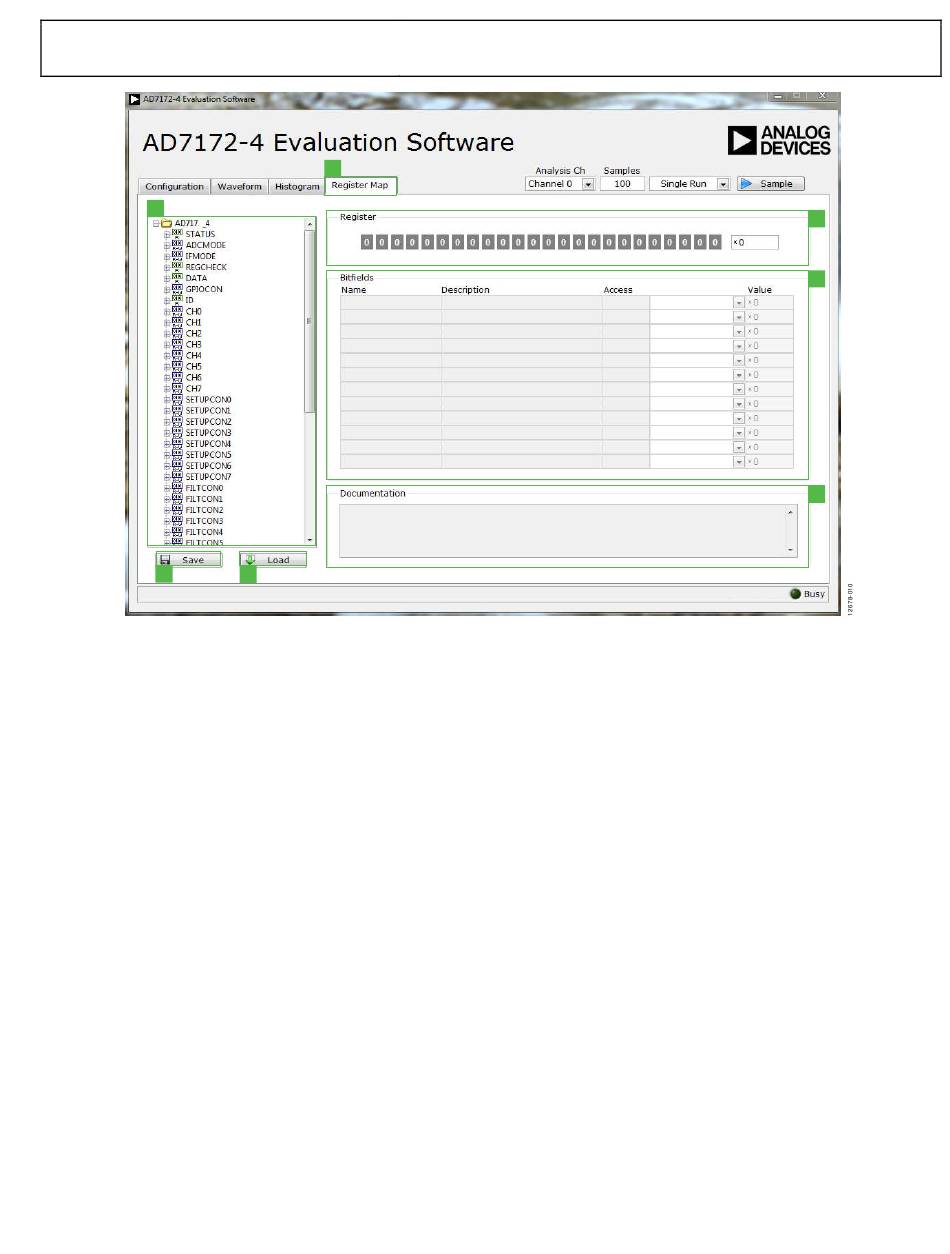

Figure 10. Register Map Tab of the AD7172-4 Evaluation Software
Documentation
The Documentation (26) field contains the documentation for
the register of bit field selected in the register tree (23) (see
Figure 10).
Save and Load
The Save (27) and Load (28) buttons allow you to save the
current register map setting to a file and load the setting from
the same file (see Figure 10).

EXITING THE SOFTWARE

To exit the software, click the close button at the top right
corner of the AD7172-4 Evaluation Software window (see
Figure 7).
