UG-763
20
Noise Analysis
The Noise Analysis (18) section displays the results of the noise
analysis for the selected analysis channel (see Figure 8). This
section includes both noise and resolution measurements.

HISTOGRAM TAB

See Figure 9 for the Histogram (19) tab.
19
18

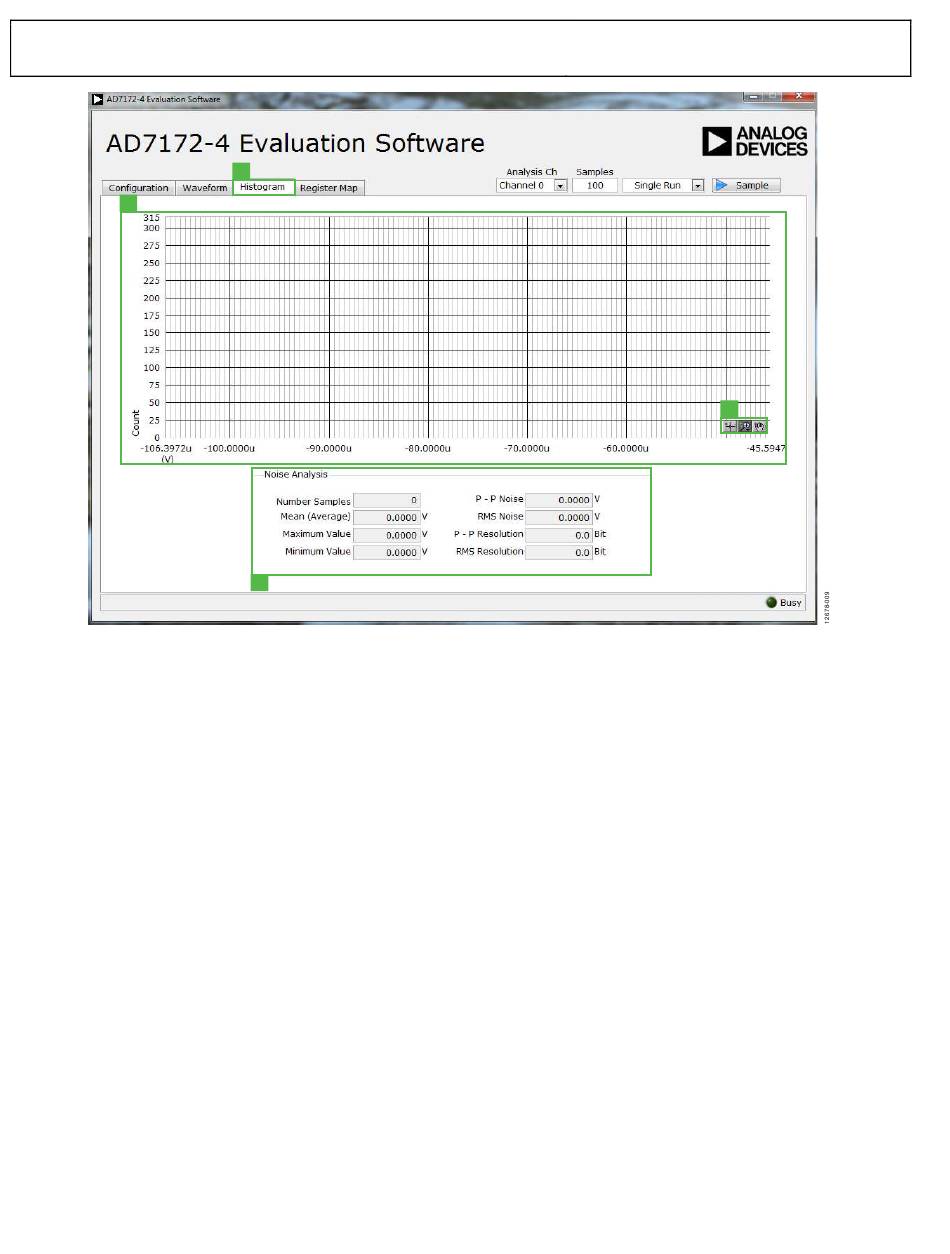

Figure 9. Histogram Tab of the AD7172-4 Evaluation Software
Rev. 0 | Page 10 of 12
EVAL-AD7172-4SDZ User Guide
Histogram Graph and Controls
The data histogram graph (20) shows the number of times each
sample of the ADC output occurs. The control toolbar (21) in
the histogram graph allows you to zoom in on the data (see
Figure 9). Click the x-axis and y-axis to change the scales on the
graph (see Figure 9).
