2.5 How to use the UR Log Viewer

The purpose of the tool is to read, analyze and examine robot data from e-Series and CB3-Series robots.

Any findings based on this tool is the sole responsibility and interpretation of the user. To have a final

saying in case of service needs, please refed to your distributor or Universal Robot's technical supporter

for guidance on service, trainings and warranties.

The following files are supported:

- Support File (implemented on SW 3.13 and 5.8 forward): ex.:

ur_20195099999_2020-07-16_09-24.zip

- Service File (via "urmagic_data_capture_v0_6_X.sh"): ex.:

ur_service_20235XXXXXX_2023-09-08_16-50-24.zip

- Flight Reports: ex.: recording20200520_17_59_14.zip

- Log History: ex.: log_history.txt, log_history.bak

- Real-time recordings: Created by UR Log Viewer: ex.: recording.csv

2.5.2 Loading the data

The available file can be either dragged and drop on the Log Reader tab or opened by selecting the path

where the file is stored in your computer. A third option is by selecting it directly from Windows, using

right-click on the file -> open with -> choose another app -> UR Log Viewer.

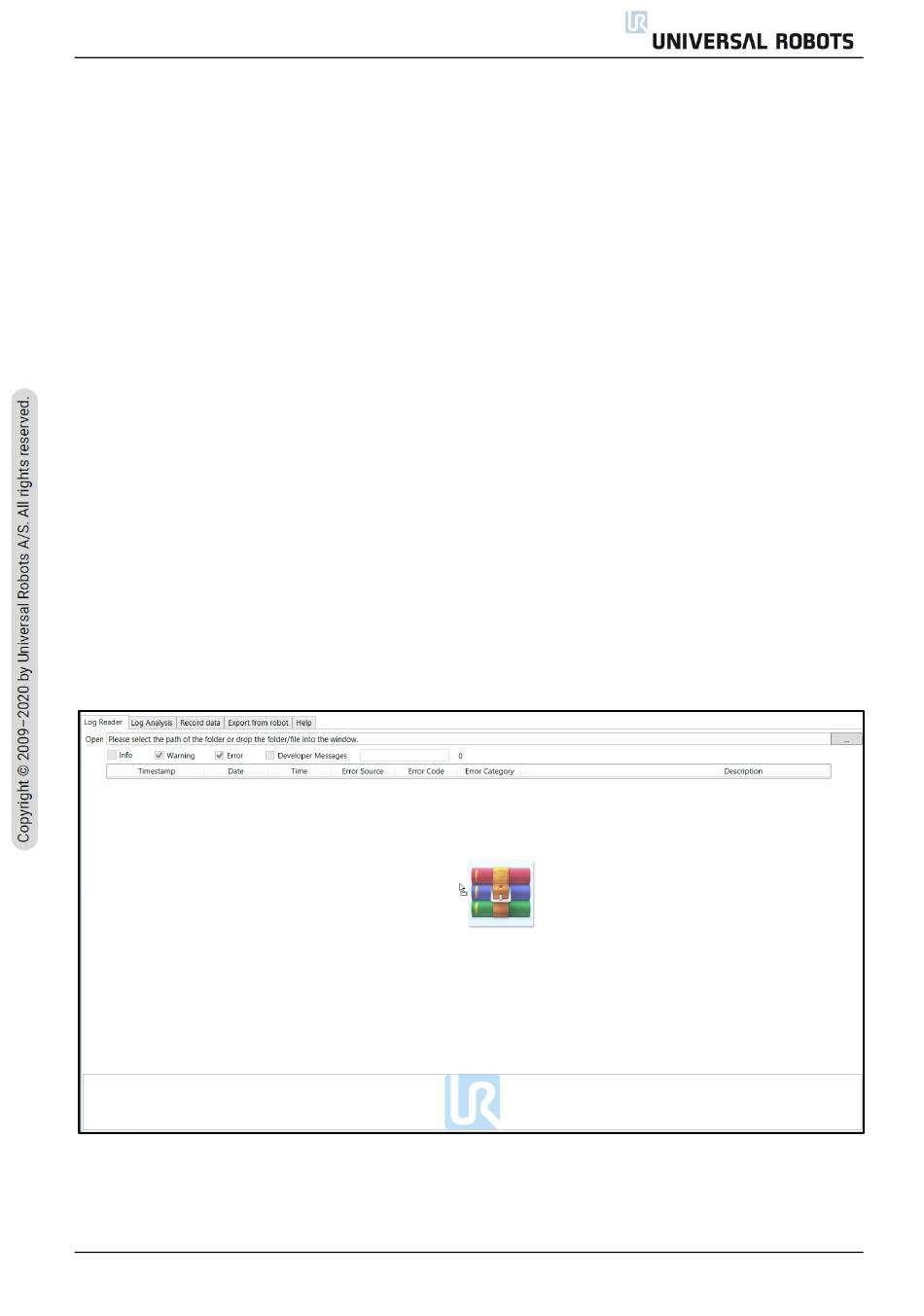

Option of opening support file by drag and drop on the Log Reader tab on UR Log Viewer
