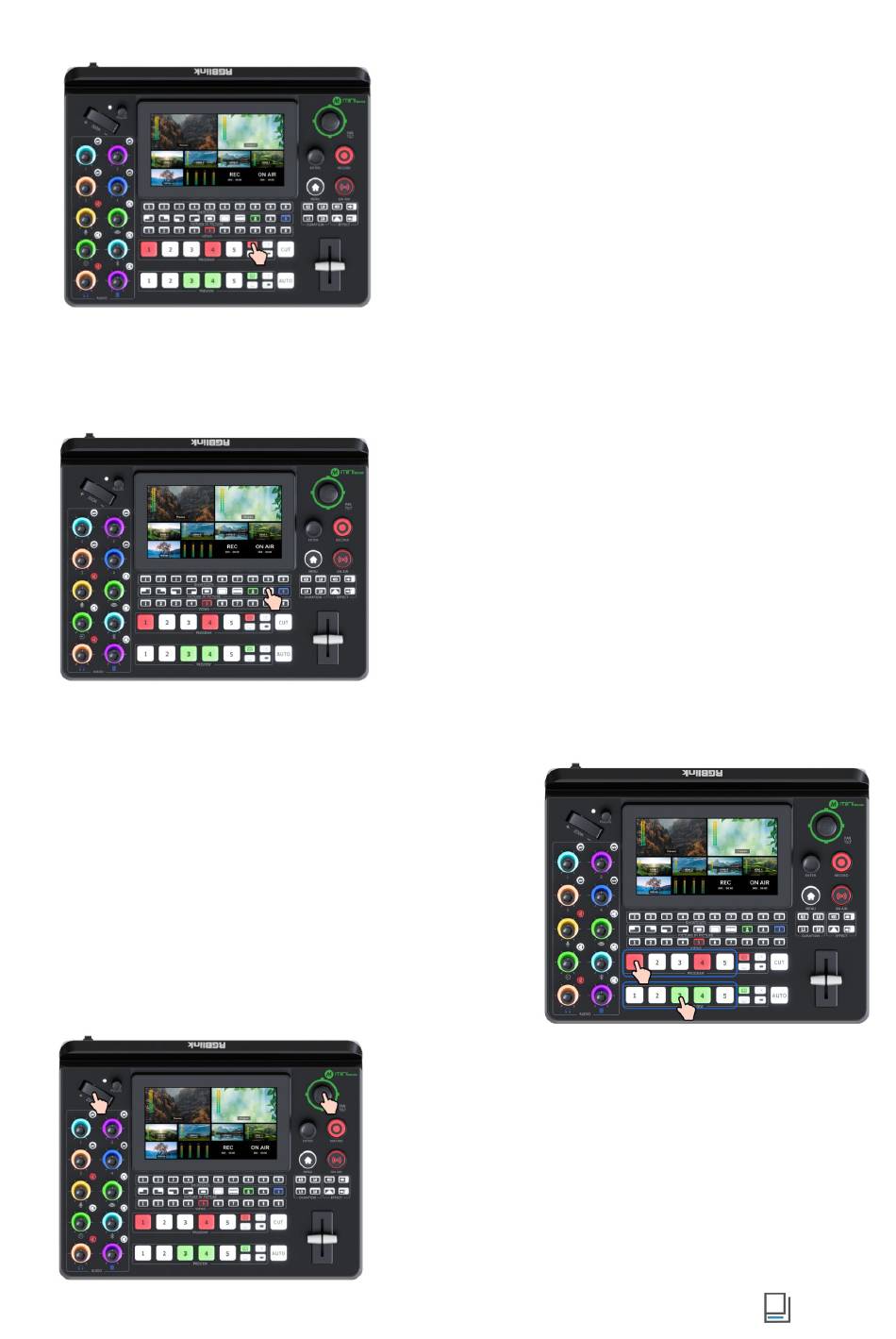

Selecting Input Signal
Preview Source row is for selecting the signal source
for preview. Program Source row is for selecting the
signal source for program.
Press 1~5 number buttons along the Preview Source
row to select an input source for previewing and the
selected PVW button will be illuminated Green.
Press 1~5 number buttons along the Program
Source row to add it to the PGM view and the
selected PGM button will be illuminated Red.
www.rgblink.com
Enabling Background Layer
If the BKG button along the Program Source Row
illuminates white, press the button to place a
background layer on Program screen and the
button will be illuminated red.
Press button illuminated red to remove, and the
button indicator changes to white.

Adding Layer A

Enabling Layer A
Push Layer A button on the front panel to edit the
layer.
This operation also simultaneously enables Layer A.
Adjusting Size and Position
Use the toggle on the control panel for layer
zoom-in and zoom-out and the joystick to set the
position for more detailed adjustment.
