RGBlink mini-edge User Manual

Hide thumbs Also See for mini-edge:
Table of Contents

Advertisement

Quick Links

Download this manual

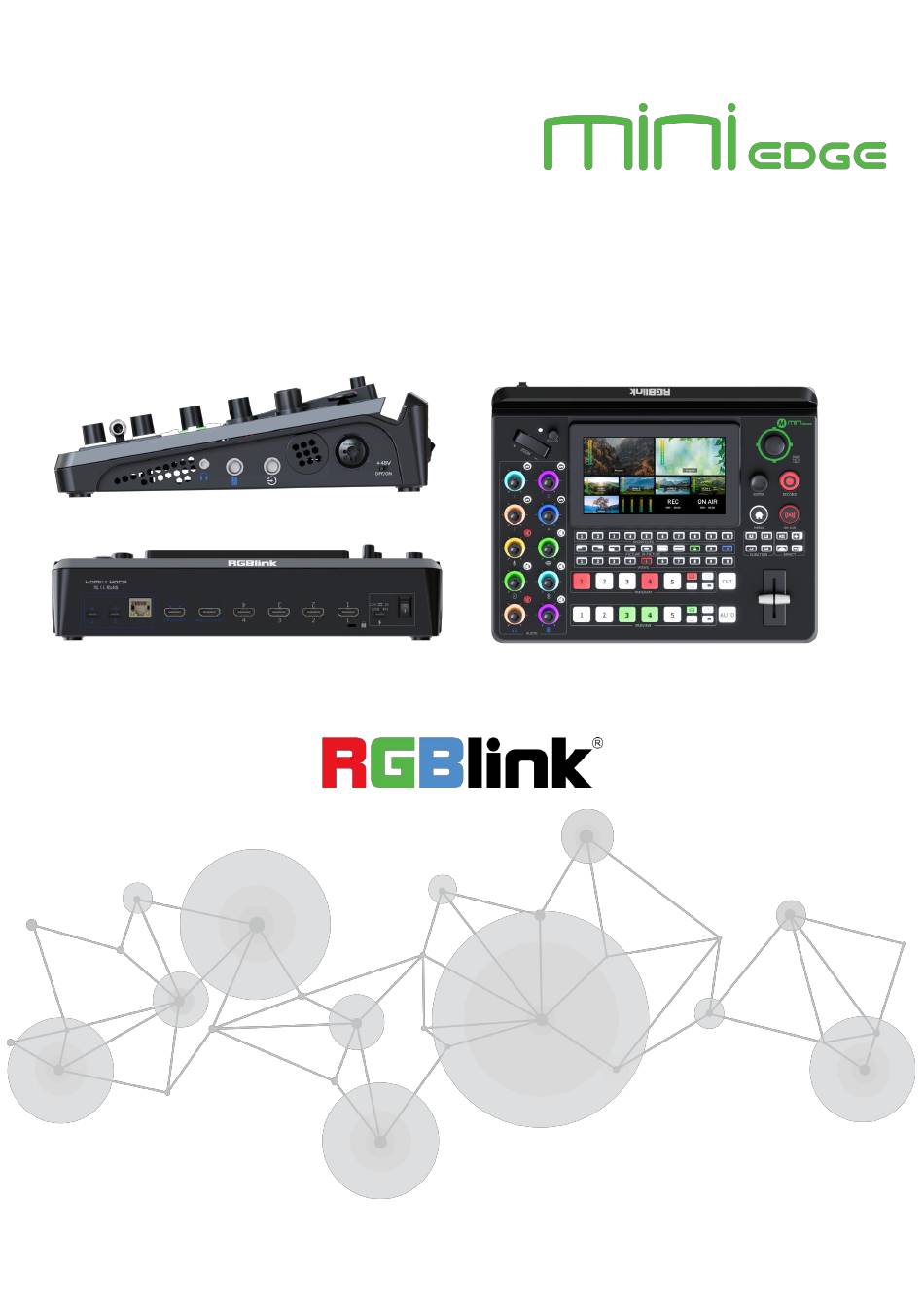

mini-edge
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini-edge and is the answer not in the manual?

Questions and answers

Related Manuals for RGBlink mini-edge

Summary of Contents for RGBlink mini-edge

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    2.3 Connecting Microphone and External Monitoring Devices ....21 2.4 Connecting USB for Streaming and Recording ......... 22 2.5 Connecting Router ..................23 2.6 Plugging in Power ..................24 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 3 2.7 Turning on Your mini-edge ............... 24 Chapter 3 Use Your Product ................25 3.1 Main Interface ....................25 3.2 MENU ......................26 3.3 Standby Interface ..................27 3.4 PIP Layout (Picture-in-Picture) ..............28 3.5 Adding Layers ....................30 3.5.1 Layer Storage Path ....................30 3.5.2 Adding Background ....................31...
  • Page 4 3.14.9 Fan ......................... 83 3.14.10 Display ....................... 83 3.14.11 T-Bar Correction ....................84 3.14.12 Color Management ..................85 Chapter 4 Ordering Codes ................86 4.1 Product Code ....................86 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 5 5.4.5 Fan Speed ......................98 5.4.6 Device Sleep | Power ON .................. 99 5.5 Terms & Definitions .................. 100 5.6 Revision History ..................107 Chapter 6 Support ..................108 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 6: Declarations

    30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 7: Operators Safety Summary

    RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 8: Installation Safety Summary

    Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. Installation Safety Summary Safety Precautions © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 9 The environment in which you install your product should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 10: Chapter 1 Your Product

    Stands Warning： 1. The standard power supply can ONLY be used with the mini-edge, and is cannot be used for powering other devices simultaneously. RGBlink disclaim all responsibility for instability or damage caused by improper use. 2. Portable stands with strong tapes can be attached to the back of mini-edge for support and heat dissipation.

  • Page 11: Product Overview

    1.2 Product Overview mini-edge provides five video input channels and eight audio input channels with multiple output interfaces available. mini-edge features professional and excellent performance, which supports multiple -layer overlay and audio mixing operations, providing more control over audio/video productions at the operator’s fingertips.

  • Page 12: Key Features

    ● Quad HDMI 2.0 inputs (HDCP compliance), resolutions up to 4K@60 ● One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM ● Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio) ●...

  • Page 13: Rear Panel

    [1] ONLY choose one of functions to use; does not support USB HUB. [2] Except condenser microphones that require phantom power, please Turn OFF phantom power switch when connecting other devices. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 14: Front Panel

    ● PROGRAM FTB Button ● PREVIEW Source Row ● Volume Control Knob ● PREVIEW Layer Button ● AFV Button ● PREVIEW Clear Button ● Mute Button © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 15 ○ to accept the selected item or apply changes to a setting. ○ to edit. ○ to enter the next higher level of menu. ○ to enable or disable a function. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 16 ● Knob Labeled Number 1~4: volume control of HDMI embedded audio. ● Other Six Knobs: volume control of Mic, USB Input, Line-in, Bluetooth, Headphone Out and Program Out. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 17 ● Button Color Description ○ Button Blinked Red: transition is being applied. ○ Button Gone Dark: transition completed. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 18 ○ Button Lit Red: 1) signal output as the Program; 2) Button 1 lit red after factory reset. ● Button Operation ○ For Layer A or Layer B on Program: press to switch signal © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 19 ○ For Layer A and Layer B on Preview: select Layer A or Layer B, then press Button 1~5 to perform signal switch on one certain layer. █ PREVIEW Layer Button ● Icon Definition © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 20: Dimension

    Button turns green. ○ Short Press Button with View: to load view to PVW. 1.2.4 Dimension Following is the dimension of mini-edge for your reference: 280mm x 220mm x 67mm. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 21: Chapter 2 Install Your Product

    HDMI 1 automatically. Users can see the input views on the mini-edge screen when there is active signal plug in. Connect mini-edge to a monitor with HDMI output interface to see PVW views and output resolutions.

  • Page 22: Connecting Microphone And External Monitoring Devices

    6.35mm TRS jack, which can be directly connect to the mobile phone, computer and console. mini-edge comes with TWO audio output jacks on the right panel. One adopts 3.5mm mini-jack, which can be directly connect to the headphone for audio monitoring. The other line PGM output ©...

  • Page 23: Connecting Usb For Streaming And Recording

    6.35mm TRS jack, which is for connecting speakers. For laptops or mobile phones with no audio output ports, mini-edge provides a built-in Bluetooth module. Users can connect to devices with Bluetooth function to input high-quality audio signals in real time. (More details please refer to Bluetooth) In addition, the four HDMI input ports all support embedded audio.

  • Page 24: Connecting Router

    Push MENU Button to gain access to MENU. Use ENTER Knob to select SETTING > NETWORK >Turn OFF DHCP > use Number Button to set IP address. When connecting mini-edge and the router, the IP address of mini-edge must be in the same LAN as the router. Connect router and mini-edge with CAT6 cable.

  • Page 25: Plugging In Power

    3. The power supply is rated for a minimum of 36W. 2.7 Turning on Your mini-edge After mini-edge is connected to power supply, push the DIP Switch on the rear panel, the device will show mini-edge logo and then enter to the main interface.

  • Page 26: Chapter 3 Use Your Product

    After the above steps are completed, users can use mini-edge to do the following. 3.1 Main Interface As shown below, once powering on mini-edge, the 5.5 inch display will show mini-edge logo and then come into Main Interface. Operator can refer to the description below.

  • Page 27: Menu

    Push MENU Button in Main Interface and the LCD screen will quickly enter MENU. As shown in the figure above, the UI style on thescreen is similar to current smart phone © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 28: Standby Interface

    Rotate ENTER knob to move the cursor to icon, push the knob once again to enter Standby Interface. ❶ ❷ ❻ ❸ ❹ ❺ © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 29: Pip Layout (Picture-In-Picture)

    Management Interface. 3.4 PIP Layout (Picture-in-Picture) mini-edge defaults to single-screen switching. If you need to use PIP, push MENU Button to enter MENU, use ENTER knob to move the cursor to LAYOUT icon, then press ENTER knob once again to gain access to the PIP layout setting interface.
  • Page 30 In Layer Cropping interface, Width, Height, Horizontal Position and Vertical Position can be set. Reset at the bottom is for restoring settings to the default values. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 31: Adding Layers

    1. Insert a U disk into USB interface labeled number 1, reboot mini-edge or enter BACKGROUND/LOGO/OVERLAY interface. 2. Wait for mini-edge to recognize available files. Figure below shows no files available in U disk. 3. If there are no available files, the USB flash drive will automatically create a folder named mini-edge, with audio and image folders included.

  • Page 32: Adding Background

    4. Store materials in corresponding folder. Create Folders Manually： 1. Create a folder name mini-edge by yourself; 2. Create audio and image folders respectively in mini-edge folder; 3. Create three sub-folders in image: background, logo and overlay. 4. Store materials in corresponding folder.
  • Page 33 1) “+”indicates window with no source saved. If the user wants to add backgroud image to Window 7, rotate ENTER knob to move the cursor to Window 7, press ENTER knob once again. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 34 Program screen and the button will be illuminated red. Press button illuminated red to remove, and the button indicator changes to white. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 35 1) To replace background source saved in Window 7, rotate ENTER knob to move the cursor to Window 7, then long press ENTER knob. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 36: Adding Layer A

    U disk, and then press the knob once again to replace. 3.5.3 Adding Layer A 1. Push Layer A Button on the front panel to edit Layer A. This operation simultaneously enables Layer A. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 37 3. In the Main Interface, the user can use the toggle for layer zoom-in and zoom-out on PVW window and the joystick to set the position for more detailed adjustment. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 38 Select required layout for Layer A and place it on the background. 5. mini-edge supports layer scaling and cropping. Rotate the ENTER knob to the SCALE or CROP and press the knob once again to enter the parameter setting interface.

  • Page 39: Adding Layer B

    Press 1~5 number buttons along the Program Source row to add it to the PGM view and the selected PGM button will be illuminated Red. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 40: Adding Logo

    Use ENTER knob to move the cursor to LOGO icon in Sour Selection Area, press ENTER knob once again to enter. Or long press LOGO Button along the PREVIEW Outputs Row. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 41 2) Then the cursor will automatically jump to USB files on the left side. Rotate the ENTER knob to select the saved LOGO images in the U disk, and then press the knob once again to add the image to Window 7. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 42 Press button illuminated red to remove, and the button indicator changes to white. 5) The user can set layout, use the toggle for layer zoom-in and zoom-out and the joystick to set the position. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 43 1) To replace LOGO source saved in Window 7, rotate ENTER knob to move the cursor to Window 7, then long press ENTER knob. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 44: Adding Overlay

    U disk, and then press the knob once again to replace. 3.5.6 Adding Overlay Insert a U disk into the USB port labeled number 1 to import overlay sources. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 45 1) “+”indicates window with no source saved. If the user wants to add overlay image to Window 7, rotate ENTER knob to move the cursor to Window 7, press ENTER knob once again. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 46 Program screen and the button will be illuminated red. Press button illuminated red to remove, and the button indicator changes to white. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 47 7, then long press ENTER knob. 2) Rotate ENTER knob to move the cursor to Delete, press the knob and then choose Confirm for deletion. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 48 3) Then the cursor will automatically jump to USB files on the left side. Rotate the ENTER knob to select one overlay source in the U disk, and then press the knob once again to replace. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 49: Chroma Key

    3.6 Chroma Key mini-edge supports matting, that is, removing the pure color background and overlaying it on another signal to realize the application of virtual reality. Push MENU Button to enter Main Menu, rotate ENTER knob to move the cursor to【CHROMA KEY】, press knob once again to enter the setting interface.

  • Page 50: Controlling Ptz Camera

    IP VISCA protocol and save the position and zoom information for quick calling. The PTZ preset of mini-edge not only saves the parameters of the PTZ, but also includes calling the camera, that is, when the preset of PTZ is loaded, the input is switched to the camera signal source at the same time.
  • Page 51 FAQ. 2) Enter PTZ configuration interface below to set the camera's IP address, then choose "Enter" to save. (Make sure IP address has not been occupies, and IP address of mini-edge and camera are in the same LAN.) ©...
  • Page 52 3) Connect camera and computer to the switch. 4) Connect mini-edge and camera to the switch via Ethernet cables (It is recommended to use RGBlink CAT6 cable with order code as 940-0001-00-11-0). Then use mini-edge for PTZ control. Warning: 1. The computer IP, mini-edge IP and the tested IP must be in the same LAN.
  • Page 53 2. If devices are connected to same LAN, rotate ENTER knob to move the cursor to icon, press the knob once again, and mini-edge can capture current IP address and IP address set before of all cameras in the LAN. Select the IP address of the camera to be controlled in Search IP Interface.
  • Page 54 Rotate ENTER knob to move the cursor to , press the knob once again, then choose “Confirm”to capture a picture and add it to View. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 55: Saving And Loading Scenes

    3.8 Saving and Loading Scenes mini-edge save presets to Scene in real time. If users want to quickly load current preset next time, just save it to corresponding scene. The Scene will save all the currently set parameters including Chroma Key, PTZ Presets and more.
  • Page 56 The preset saving interface is shown as below. mini-edge allows user to save 10 presets in total to the corresponding View 1~10. If the selected window does not contain a preset, press ENTER knob to choose whether to form a static picture of the Preview scene and save it.

  • Page 57: Video Output

    Choose Multi-view to set parameters. Default to be Multi-view preview, which can be switched to Program，Test Pattern or 1~4 HDMI inputs for various applications. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 58: Program

    DVI is generally used to adapt LED control cards (sending cards) and displays with DVI input interfaces, while HDMI is generally used to adapt displays with HDMI input interfaces. Turn on DVI/HDMI, mini-edge can adapt to different types of display devices. 3.9.2 Program Choose Program to set parameters.

  • Page 59: Usb2 Mode

    3.10 Streaming Push MENU Button to enter MENU. Rotate ENTER knob to move the cursor to【OUTPUT】, press knob once again to enter the setting interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 60 Rotate ENTER knob to move the cursor to【Stream】, press knob once again to enter streaming configuration interface. mini-edge suppors RTMP protocol with bitrate and output mode can be set. Rotate ENTER knob to move the cursor to streaming address, long press the knob for about 3 seconds for QR code.

  • Page 61: Direct Connection

    You can provide network for mini-edge through Direct Connection or Smartphone Tethering. 3.10.1 Direct Connection mini-edge switcher ’ s Ethernet connector lets you stream directly. Connect mini-edge to the internet by plugging a network cable from the Ethernet port to an internet router or a network switch.
  • Page 62 Mobile to stream by using the hotspot of mobile phone. 4) As shown in figures below, if the status changes from "Not Discoverable" to "Connection", it means that the mini-edge and your mobile phone have achieved network sharing. 2. For Android system, please do as follows: 1) Open ‘Settings’>...
  • Page 63 Use ENTER knob to select Network and then Mobile to stream by using the hotspot of mobile phone. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 64: Youtube Live

    3. If failed to use network sharing, please operate Step 2 as follows: Connect USB-C interface of OTG cable to mini-edge, then use standard data cable to connect your phone to USB-A interface of OTG cable. 4. The user interface may vary according to mobile phone types, please refer to the actual use.
  • Page 65 6. Paste the Stream URL and Stream Key in notepad and save file title as rtmp.ini (the format must be : rtmp://YOUR STREAM URL/YOUR STREAM KEY). Then copy the file to USB disk. 7. Connect the USB disk to mini-edge’s USB port. © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 66: Controlling Ptz Camera During Live

    To control PTZ camera while performing live streaming, please make sure PTZ, mini-edge and network are in the same LAN, then turn on DHCP of mini-edge in Network Interface at the same time. ( Turning off DHCP will not affect live streaming if the IP address does not conflict) In Menu, rotate ENTER knob to move the cursor to【SETTING】, then press knob once again.

  • Page 67: Recording

    Subnet mask: Set the subnet mask. The default setting is 255.255.255.0. Gateway: Set the Gateway according to the IP address and subnet mask. For example, if the IP address of mini-edge is 192.168.5.98 and the subnet mask is 255.255.255.0, please set the gateway to 192.168.5.1.
  • Page 68 Insert a U disk to USB port labeled number 1. Before recording, format the U-disk first. You can directly format U-disk on your mini-edge. The steps are as below: Push MENU Button to enter MENU, rotate ENTER knob to move the cursor to【OUTPUT】, press knob once again to enter the setting interface.

  • Page 69: Switch Effect Setting

    128kb > Disk formatting > Confirm to format disk. Warning: If the U disk cannot be recognized when inserting into mini-edge, use a dual USB cable to power U disk. In Recording Interface, the disk information can be captured automatically by mini-edge.
  • Page 70 Fade Box Inwards Iris Box Cross Inwards © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 71 Box Inwards: Box Inwards refers to replacing Picture 1 by Picture 2 and is achieved by using a box pattern closing in from the edge towards center. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 72 ● Wipe to Left：The Picture 1 is unchanged, and the Picture 2 is gradually wiped in to replace Picture 1 from the leftward direction. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 73 Picture 1 from the diagonal direction. ● Center Split Vertical：The Picture 1 is unchanged, and the Picture 2 grows from the center and extends vertically. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 74 Left-slanting or Right-slanting and adjust Feathering Width. The larger the width value is set, the softer the edge, and the better the blending effect. Use T-BAR to adjust the location of two images. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 75: Audio

    Following is the illustration of Blend. 3.13 Audio mini-edge supports mixed output of multiple channels, and also allows user to check volume meter. Push MENU Button to enter MENU. Rotate ENTER knob to move the cursor to【AUDIO】, press knob once again to enter audio management interface. The user can aslo gain access to AUDIO by pressing AFV buttons or Mute buttons on the front panel.
  • Page 76 ● Use ENTER knob to choose Page Down icon to enter Media for audio management; Use ENTER knob to choose Page Up or Page Down icon to back to Audio. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 77 "+" and " - " icons are used for increasing or decreasing the audio level for the respective source. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 78: Setting

    Rotate ENTER knob to move the cursor to【About】, press knob once again to check information about mini-edge. As shown in the figure below, users can check Device Name and SN serial number. Select Model Version to gain access to upgrade interface.

  • Page 79: Date And Time

    Rotate ENTER knob to move the cursor to 【 Date & Time 】 , press knob once again to check operating time and set time displayed in mini-edge. If the device is connected to network, turn on automatic setting switch to synchronize the time.

  • Page 80: Language

    Set system language as English or Chinese. 3.14.4 Bluetooth Rotate ENTER knob to move the cursor to 【 Bluetooth 】 , press knob once again to enter the following interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 81: Views Auto Loop

    Bluetooth defaults to ON. Turn on Bluetooth on mini-edge and mobile phone to establish a Bluetooth connection. You can check device name in this interface and then select the mini-edge model that needs to be paired in the Bluetooth Setting Interface of the phone.

  • Page 82: Switch Mode

    Rotate ENTER knob to move the cursor to【Switch Mode】, press knob once again to enter the following interface. mini-edge provides T-Bar PVW mode (default) and CUT mode. Select the mode you want and customize switch time as needed. For some important occasions, users might need to preview and preset the next scene to ensure ©...

  • Page 83: Reset

    T-Bar PVW mode to allow switch after editing and confirmation. When PVW Mode is enabled, all operation could be checked on PVW window. Slide T-Bar to switch between PVW and PGM.

  • Page 84: Fan

    Rotate ENTER knob to move the cursor to【Display】, press knob once again to enter the interface below. Use ENTER knob to control brightness of touch screen and buttons. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 85: T-Bar Correction

    1）Push the T-bar to the most top; 2）Enable switch on Step 2； 3）Push the T-bar to the most bottom； 4）Enable switch on Step 4； © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 86: Color Management

    Rotate ENTER knob to move the cursor to【Color Management】, press knob once again to enter the interface below. Use ENTER knob to enable switch to set brightness, saturation, contrast, red, green and blue values for four HDMI inputs. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 87: Chapter 4 Ordering Codes

    Chapter 4 Ordering Codes 4.1 Product Code 230-0006-01-0 mini-edge © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 88: Chapter 5 Appendix

    Linear PCM, 16 bits/48 kHz, 2 ch Record Formats MP4 | WAV Record/Storage Disk Formats FAT32(≤32 GB) | exFAT(64GB~2T) HDMI Supported Standards H.265 ITU-T H.265/ ISO/IEC 23008-2 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 89: Faq

    5.2 FAQ 1. Fail to power on mini-edge? A: The Power Supply included with mini-edge is the recommended power supply to use. If you use other power supply, make sure the power supports 12V 3A. Then check whether the power supply is connected first, and use it correctly according to the power supply standard of your country/region.
  • Page 90 For example, the IP address of PTZ is 192.168.5.163. Please also set the IP address of mini-edge to 192.168.5.X ( (2~254) except163 Outside), confirm on mini XPOSE whether the Visca port number in the PTZ settings is the corresponding port number, for example, the Visca port number of the PTZ of RGBlink is 1259.
  • Page 91 8. mini-edge HDMI input what kind of YUV. A：mini-edge supports 4:4:4，not supports 4:2:0. 9. When mini-edge input is i format signal will be half-screened or cut with the P format signal, the height of the P format will be cut.
  • Page 92 "Destination host unreachable," it means that the IP has not been occupied. 12.4) Then enter "ping 192.168.5.66" in the "Run" dialog box again. Press "Enter" on the keyboard to access this IP address. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 93: Upgrade

    13. How to use stands? A: 13.1) Tear off the white protective film on the back; 13.2) Attach the adhesive area to mini-edge to provide support and reduce device temperature. 14. Video playing via fifth input? A：The fifth input supports video playing only in .mp4 format and 1080p resolution.
  • Page 94 1. mini-mx only supports some models of hard disks. It is recommended to upgrade mini-mx with U disk in FAT32 format. U disk supports USB 2.0 and USB 3.0. Partitioned USB disk not supported. 2. Do not power off during the upgrade process, otherwise mini-edge may be unable to enter the system after booting.
  • Page 95 5. Use ENTER knob to choose Ugrade file and then Upgrade. 6. The upgrade interface is shown in the figure below. Please DO NOT power off the device during upgrade. mini-edge will reboot after upgrade is completed. © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 96: Customized Button Function

    2. X in PTZ CX refers to signal channel. Drag certain function to the button area for function assignment. The user can also assign the function to multiple buttons. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 97: Sigsec

    ● SIGSEC HDMI 1~ HDMI 4: PGM output SIGSEC HDMI 1/2/3/4 in full screen in any state. ● SIGSEC UVC | Video: Output UVC signal，video. ● Black Screen: One-click black screen for Program. ● Colorbar: Static colorbar picture. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 98: Ptz Signal

    ● BG Background: Select background preset as signal for chroma key. The user can also switch the background image saved in mini-edge by clicking the button several times, that is, click the button will transition the current background image to the next image.

  • Page 99: Input Signal Selection

    Drag Fan Speed+/Fan Speed- into any button from 0~9 to display the menu. Users can adjust the fan speed for heat dissipation. ● Fan Speed+：range from 1~5 (defaults to auto) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

  • Page 100: Device Sleep | Power On

    If Sleep | Power ON is assigned to Button 1, press the Button 1 along the SHOUTCUTS row on the front panel, the interface is shown as below: Rotate ENTER knob to move the cursor to “Yes”, press the knob to confirm. mini-edge will enter standby mode in 3 seconds.

  • Page 101: Terms & Definitions

    Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30. ●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 102 60 Hz or 4K UHD (3840 × 2160) at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 103 ●USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 104 ● SDVoE: Software Defined Video over Ethernet (SDVoE) is a method for transmission, distribution and management AV signals using a TCP/IP Ethernet infrastructure for transport with low latency. SDVoE is commonly used in integration applications. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 105 ●MIDI: MIDI is the abbreviation of Musical Instrument Digital Interface. As the name indicates the protocol was developed for communication between electronical musical instruments and latterly computers. MIDI instructions © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 106 Chroma signal. Colour burst is 3.58 MHz for NTSC and 4.43 MHz for PAL. ●Colour Bars: A standard test pattern of several basic colours (white, yellow, cyan, green, magenta, red, blue, and © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 107 The source device will then output the provided EDID data, ensuring proper video image quality. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...

  • Page 108: Revision History

    3. Add Color Management Setting for HDMI inputs 4. Add Sleep | Power ON customized button function All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd.

  • Page 109: Chapter 6 Support

    Chapter 6 Support © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...

This manual is also suitable for:
