RGBlink Mini-Edge-2S User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
mini-edge
User Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini-Edge-2S and is the answer not in the manual?

Questions and answers

Related Manuals for RGBlink Mini-Edge-2S

Summary of Contents for RGBlink Mini-Edge-2S

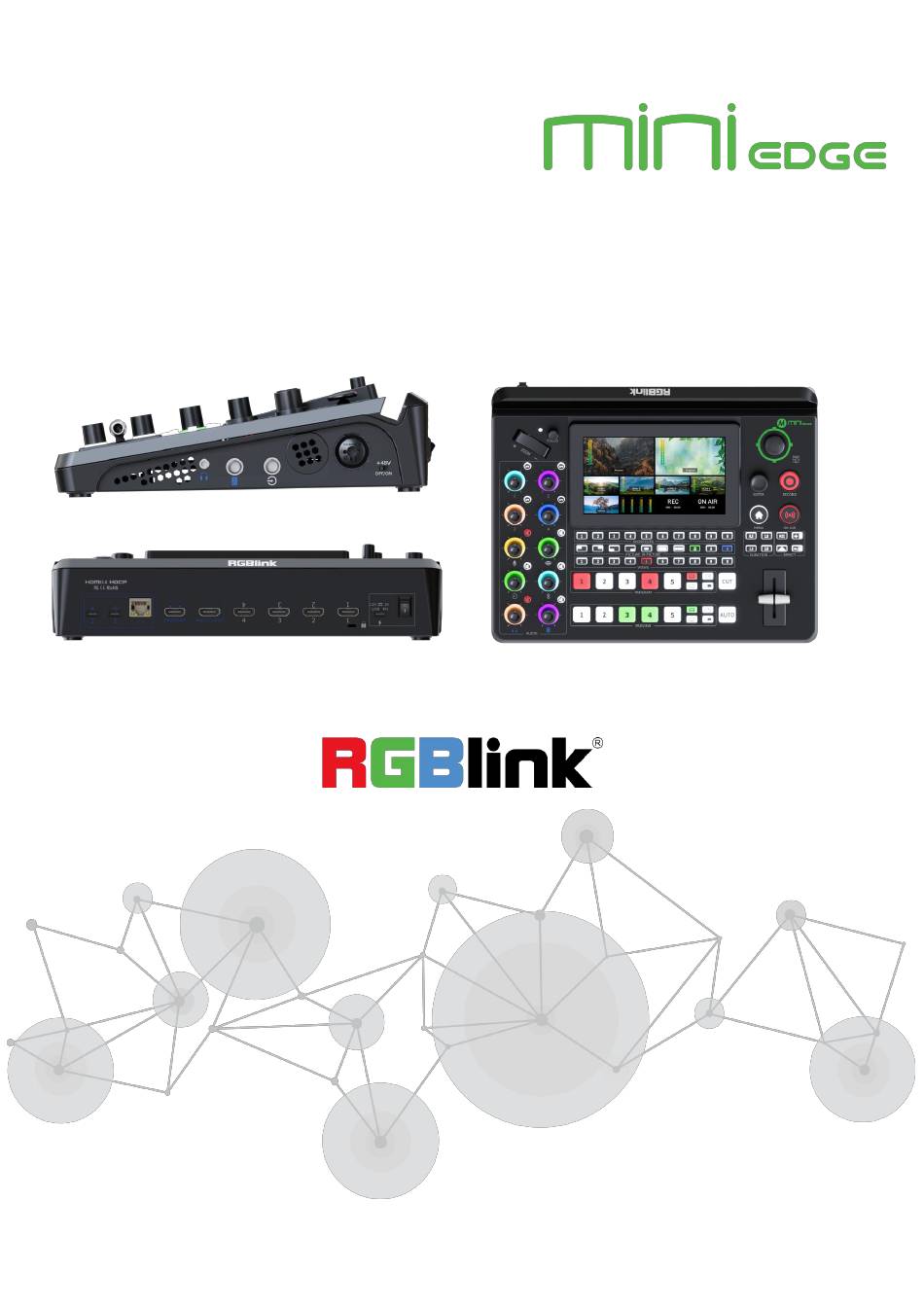

  • Page 1 mini-edge User Manual...
  • Page 2 2.3 Connecting Microphone and External Monitoring Devices ....21 2.4 Connecting USB for Streaming and Recording ......... 22 2.5 Connecting Router ..................23 2.6 Plugging in Power ..................24 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 3 3.9 Video Output ....................56 3.9.1 Multi-view ......................56 3.9.2 Program ........................57 3.9.3 Resolution ......................57 3.9.4 USB2 Mode ......................58 3.9.5 TAO Cloud Device Access ................. 58 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 4 3.14.8 Auto Return ......................84 3.14.9 Fan ......................... 85 3.14.10 Display ....................... 85 3.14.11 T-Bar Correction ....................86 3.14.12 Color Management ..................87 Chapter 4 Ordering Codes ................88 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 5 5.4.5 Fan Speed ......................103 5.4.6 Device Sleep | Power ON ................104 5.5 Terms & Definitions .................. 105 5.6 Revision History ..................112 Chapter 6 Support ..................113 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 6 30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own © Xiamen RGBlink Science & Technology Co., Ltd.
  • Page 7 RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 8 Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. Installation Safety Summary Safety Precautions © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 9 The environment in which you install your product should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 10 1. The standard power supply can ONLY be used with the mini-edge, and is cannot be used for powering other devices simultaneously. RGBlink disclaim all responsibility for instability or damage caused by improper use. 2. Portable stands with strong tapes can be attached to the back of mini-edge for support and heat dissipation.
  • Page 11 2. For upstream bitrate lower than 100Mbps, it is recommended to use 1 platform. 3. To stream to multiple platform, it is recommended to use TAO Cloud Studio. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 12 ● Quad HDMI 2.0 inputs (HDCP compliance), resolutions up to 4K@60 ● One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM ● Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio) ●...
  • Page 13 [1] ONLY choose one of functions to use; does not support USB HUB. [2] Except condenser microphones that require phantom power, please Turn OFF phantom power switch when connecting other devices. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 14 ● PROGRAM FTB Button ● PREVIEW Source Row ● Volume Control Knob ● PREVIEW Layer Button ● AFV Button ● PREVIEW Clear Button ● Mute Button © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 15 ○ to accept the selected item or apply changes to a setting. ○ to edit. ○ to enter the next higher level of menu. ○ to enable or disable a function. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 16 ● Knob Labeled Number 1~4: volume control of HDMI embedded audio. ● Other Six Knobs: volume control of Mic, USB Input, Line-in, Bluetooth, Headphone Out and Program Out. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 17 ● Button Color Description ○ Button Blinked Red: transition is being applied. ○ Button Gone Dark: transition completed. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 18 ○ Button Lit Red: 1) signal output as the Program; 2) Button 1 lit red after factory reset. ● Button Operation ○ For Layer A or Layer B on Program: press to switch signal © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 19 ○ For Layer A and Layer B on Preview: select Layer A or Layer B, then press Button 1~5 to perform signal switch on one certain layer. █ PREVIEW Layer Button ● Icon Definition © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 20 ○ Short Press Button with View: to load view to PVW. 1.2.4 Dimension Following is the dimension of mini-edge for your reference: 280mm x 220mm x 67mm. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 21 Users can use HDMI cables to connect MULTI-VIEW and PROGRAM output interfaces to a monitor with an HDMI input interface so as to check PVW and PGM views in real time. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 22 TWO audio output jacks on the right panel. One adopts 3.5mm mini-jack, which can be directly connect to the headphone for audio monitoring. The other line PGM output © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 23 USB storage device, such as U disk or SSD. The SSD storage can reach up to 2T, and the USB storage can support up to 64G. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 24 DHCP enabled, it automatically obtains an IP address within the network segment set by the router to ensure communication with other devices. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 25 2.6 Plugging in Power RGBlink mini-edge is packaged with a PD power adapter (power cable included) , check the power supply standard used in your country or region before power connection. Connect mini-edge to power plug by the link cable Warning: The Power Supply included with mini-edge is the recommended power supply to use with the device.
  • Page 26 As shown below, once powering on mini-edge, the 5.5 inch display will show mini-edge logo and then come into Main Interface. Operator can refer to the description below. ❶ ❷ ❸ ❼ ❹ ❺ ❻ © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 27 Push MENU Button in Main Interface and the LCD screen will quickly enter MENU. As shown in the figure above, the UI style on thescreen is similar to current smart phone © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 28 Rotate ENTER knob to move the cursor to icon, push the knob once again to enter Standby Interface. ❶ ❷ ❻ ❸ ❹ ❺ © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 29 PIP layout allows multiple windows to be displayed simultaneously on a single screen, offering users a perfect platform to check multiple video contents at the same time. The PGM Program is © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 30 In Layer Cropping interface, Width, Height, Horizontal Position and Vertical Position can be set. Reset at the bottom is for restoring settings to the default values. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 31 3. If there are no available files, the USB flash drive will automatically create a folder named mini-edge, with audio and image folders included. The image folder includes three sub-folders: background, logo and overlay. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 32 3. Create three sub-folders in image: background, logo and overlay. 4. Store materials in corresponding folder. Tips： Go to RGBlink website （ https://rgblink-web.azurewebsites.net/productsinfo.aspx?id=252) > mini-edge > download mini-edge _material pack. 3.5.2 Adding Background 1. Insert a U disk into the USB port labeled number 1 to import background sources.
  • Page 33 1) “+”indicates window with no source saved. If the user wants to add backgroud image to Window 7, rotate ENTER knob to move the cursor to Window 7, press ENTER knob once again. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 34 Program screen and the button will be illuminated red. Press button illuminated red to remove, and the button indicator changes to white. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 35 1) To replace background source saved in Window 7, rotate ENTER knob to move the cursor to Window 7, then long press ENTER knob. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 36 U disk, and then press the knob once again to replace. 3.5.3 Adding Layer A 1. Push Layer A Button on the front panel to edit Layer A. This operation simultaneously enables Layer A. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 37 3. In the Main Interface, the user can use the toggle for layer zoom-in and zoom-out on PVW window and the joystick to set the position for more detailed adjustment. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 38 5. mini-edge supports layer scaling and cropping. Rotate the ENTER knob to the SCALE or CROP and press the knob once again to enter the parameter setting interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 39 Press 1~5 number buttons along the Program Source row to add it to the PGM view and the selected PGM button will be illuminated Red. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 40 Use ENTER knob to move the cursor to LOGO icon in Sour Selection Area, press ENTER knob once again to enter. Or long press LOGO Button along the PREVIEW Outputs Row. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 41 2) Then the cursor will automatically jump to USB files on the left side. Rotate the ENTER knob to select the saved LOGO images in the U disk, and then press the knob once again to add the image to Window 7. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 42 Press button illuminated red to remove, and the button indicator changes to white. 5) The user can set layout, use the toggle for layer zoom-in and zoom-out and the joystick to set the position. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 43 1) To replace LOGO source saved in Window 7, rotate ENTER knob to move the cursor to Window 7, then long press ENTER knob. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 44 U disk, and then press the knob once again to replace. 3.5.6 Adding Overlay Insert a U disk into the USB port labeled number 1 to import overlay sources. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 45 1) “+”indicates window with no source saved. If the user wants to add overlay image to Window 7, rotate ENTER knob to move the cursor to Window 7, press ENTER knob once again. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 46 Program screen and the button will be illuminated red. Press button illuminated red to remove, and the button indicator changes to white. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 47 7, then long press ENTER knob. 2) Rotate ENTER knob to move the cursor to Delete, press the knob and then choose Confirm for deletion. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 48 3) Then the cursor will automatically jump to USB files on the left side. Rotate the ENTER knob to select one overlay source in the U disk, and then press the knob once again to replace. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 49 Layer B by default. Select the background color which is default in green to be removed and make adjustments according to application. Check the background color required and then use ENTER knob to shift options between Max, © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 50 Please check if the port number of the controlled camera is 1259 (It’s recommended to use RGBlink vue series PTZ camera). If the port number is not 1259, please enter the port number in © Xiamen RGBlink Science & Technology Co., Ltd.
  • Page 51 2) Enter PTZ configuration interface below to set the camera's IP address, then choose "Enter" to save. (Make sure IP address has not been occupies, and IP address of mini-edge and camera are in the same LAN.) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 52 3) Connect camera and computer to the switch. 4) Connect mini-edge and camera to the switch via Ethernet cables (It is recommended to use RGBlink CAT6 cable with order code as 940-0001-00-11-0). Then use mini-edge for PTZ control. Warning: 1. The computer IP, mini-edge IP and the tested IP must be in the same LAN.
  • Page 53 Use Toggle on the front panel to adjust focus. Automatic focus adjustment can be achieved by choosing AUTO. Use 5-direction Joystick to adjust position of camera. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 54 Rotate ENTER knob to move the cursor to , press the knob once again, then choose “Confirm”to capture a picture and add it to View. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 55 After setting the effect, push MENU Button to enter MENU, rotate ENTER knob to move the cursor to【SCENE】, press knob once again to enter the interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 56 Preview scene and save it. If the window has stored a preset, press ENTER knob to choose whether to load, replace or delete. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 57 Choose Multi-view to set parameters. Default to be Multi-view preview, which can be switched to Program，Test Pattern or 1~4 HDMI inputs for various applications. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 58 Choose Program to set parameters. Default to be Program, which can be changed to multi-view Preview or Test Pattern. 3.9.3 Resolution Choose Format to choose output resolution. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 59 2. To ensure a successful mode switch, please disconnect USB2 interface first. 3.9.5 TAO Cloud Device Access With TAO Cloud integrated directly into RGBlink device, such as mini-edge, you can do more content production. You can follow steps below to bind mini-edge to TAO Cloud.
  • Page 60 Enter TAO Cloud homepage. Click “ All Appliances” >“Binding Devices” to enter interface as shown. Enter device name (customizable) and verification code, then click“Bind”to confirm. You can check binding status in All Appliances interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 61 Push MENU Button to enter MENU. Rotate ENTER knob to move the cursor to【OUTPUT】, press knob once again to enter the setting interface. Rotate ENTER knob to move the cursor to【Stream】, press knob once again to enter streaming © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 62 You can provide network for mini-edge through Direct Connection or Smartphone Tethering. 3.10.1 Direct Connection mini-edge switcher ’ s Ethernet connector lets you stream directly. Connect mini-edge to the © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 63 Ethernet port to an internet router or a network switch. It is recommended to use RGBlink CAT6 cable with order code as 940-0001-00-11-0. 3.10.2 Smartphone Tethering 1. For iOS system, please do as follows: 1) Simply connect a standard power cord from your smartphone to the USB-C port labeled number 1 on your mini-edge.
  • Page 64 2. For Android system, please do as follows: 1) Open ‘Settings’> ‘Additional settings’> ‘Developer options”> Turn on ‘USB © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 65 Use ENTER knob to select Network and then Mobile to stream by using the hotspot of mobile phone. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 66 1. Log into your YouTube account on your computer; 2. Click the camera icon in the top right corner to create a video. 3. Select“go live”. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 67 : rtmp://YOUR STREAM URL/YOUR STREAM KEY). Then copy the file to USB disk. 7. Connect the USB disk to mini-edge’s USB port. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 68 Dynamic (IP configured by router) : Connecting mini-edge with a router with DHCP features. Turn on DHCP of mini-edge and the router, then mini-edge will capture an IP address automatically. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 69 Controlling PTZ Camera for PTZ operations. 3.11 Recording The mini-edge supports recording streaming media content to an external USB storage through the USB 3.0 interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 70 Rotate ENTER knob to move the cursor to【Record】, press knob once again to enter recording configuration interface. If no USB disk is inserted, the interface displays as follows: © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 71 The user can simply push the Effect Button on the control panel to set transition effect. Or push MENU Button to enter MENU, then rotate ENTER knob to move the cursor to【EFFECTS】, press knob once again for more options. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 72 Fade Box Inwards Iris Box Cross Inwards © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 73 Box Inwards: Box Inwards refers to replacing Picture 1 by Picture 2 and is achieved by using a box pattern closing in from the edge towards center. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 74 ● Wipe to Left：The Picture 1 is unchanged, and the Picture 2 is gradually wiped in to replace Picture 1 from the leftward direction. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 75 Picture 1 from the diagonal direction. ● Center Split Vertical：The Picture 1 is unchanged, and the Picture 2 grows from the center and extends vertically. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 76 Left-slanting or Right-slanting and adjust Feathering Width. The larger the width value is set, the softer the edge, and the better the blending effect. Use T-BAR to adjust the location of two images. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 77 AFV buttons or Mute buttons on the front panel. As shown in the figure below, the Audio Management Interface is divided into seven parts. Please refer to the following table for operation. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 78 ● Use ENTER knob to choose Page Down icon to enter Media for audio management; Use ENTER knob to choose Page Up or Page Down icon to back to Audio. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 79 "+" and " - " icons are used for increasing or decreasing the audio level for the respective source. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 80 As shown in the figure below, users can check Device Name and SN serial number. Select Model Version to gain access to upgrade interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 81 If the device is connected to network, turn on automatic setting switch to synchronize the time. If the device is not connected to the network, users can set the time manually. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 82 Set system language as English or Chinese. 3.14.4 Bluetooth Rotate ENTER knob to move the cursor to 【 Bluetooth 】 , press knob once again to enter the following interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 83 2. If there is no sound when playing music, please use the Channel Fader on the front panel to adjust the BLUETOOTH and PREVIEW volume to an appropriate level. 3.14.5 Views Auto Loop Choose Views Auto Loop to enter the following interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 84 T-Bar PVW mode (default) and CUT mode. Select the mode you want and customize switch time as needed. For some important occasions, users might need to preview and preset the next scene to ensure © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 85 As shown in the figure below, the interval is set to 15s. Time’s up, and the Standby Interface will automatically return to the Main Interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 86 Rotate ENTER knob to move the cursor to【Display】, press knob once again to enter the interface below. Use ENTER knob to control brightness of touch screen and buttons. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 87 1）Push the T-bar to the most top; 2）Enable switch on Step 2； 3）Push the T-bar to the most bottom； 4）Enable switch on Step 4； © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 88 Rotate ENTER knob to move the cursor to【Color Management】, press knob once again to enter the interface below. Use ENTER knob to enable switch to set brightness, saturation, contrast, red, green and blue values for four HDMI inputs. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 89 Chapter 4 Ordering Codes 4.1 Product Code 230-0006-01-0 mini-edge © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 90 Linear PCM, 16 bits/48 kHz, 2 ch Record Formats MP4 | WAV Record/Storage Disk Formats FAT32(≤32 GB) | exFAT(64GB~2T) HDMI Supported Standards H.265 ITU-T H.265/ ISO/IEC 23008-2 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 91 OTG cable or contact us.. 4. mini-edge cannot control PTZ. A：Please make sure that the IP address of mini-edge and PTZ are in the same network segment. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 92 Others: do not run multiple video capture or editing software simultaneously MAC： CPU：i5 and above Connector: USB 3.0 or type c Operating System: macOS 11.0 Big Sur or later macOS 10.15 Catalina © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 93 11. Insert USB disk for recording into mini-edge, mini-edge turns into black screen? A：It means that the USB disk is in a read-only state, please use computer to unlock the USB disk. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 94 "Destination host unreachable," it means that the IP has not been occupied. 12.4) Then enter "ping 192.168.5.66" in the "Run" dialog box again. Press "Enter" on the keyboard to access this IP address. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 95 13.2) Attach the adhesive area to mini-edge to provide support and reduce device temperature. 14. Video playing via fifth input? A：The fifth input supports video playing only in .mp4 format and 1080p resolution. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 96 1.Copy upgrade package to root directory of USB disk. 2. Power on the device and connect USB disk to USB-C port labeled number 1 by an OTG cable. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 97 5. Use ENTER knob to choose the file and then Upgrade. 6. The upgrade interface is shown as below. Please DO NOT power off during upgrade. mini-edge will reboot after upgrade is completed. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 98 3. Use ENTER knob to choose【SETTING】>【About】>【Model Version】, then press the knob. 4. For no new version available, rotate knob to move the cursor to 【Check for updates】 , then press © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 99 Choose【Download and update】to download the firmware. 7. It takes about 10 minutes to download the file (depending on the network). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 100 9. DO NOT power off during upgrade process. mini-edge will reboot after upgrade is completed. 10. Check the new version in the following interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 101 Drag certain function to the button area for function assignment. The user can also assign the function to multiple buttons. ● Red color: Contain assigned function ● Blue color: Function being edited currently © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 102 ● Black Screen: One-click black screen for Program. ● Colorbar: Static colorbar picture. 5.4.2 PTZ Signal Drag PTZ CX into any button from 0~9 to display the menu, shown as below. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 103 ● Preset Input: HDMI 1~4 input as the preset video signal. Default to input signal of DSK background. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 104 Drag Fan Speed+/Fan Speed- into any button from 0~9 to display the menu. Users can adjust the fan speed for heat dissipation. ● Fan Speed+：range from 1~5 (defaults to auto) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 105 3 seconds. In standby mode, light of Button 1 changes to a faint blue glow, and other buttons go dark with © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 106 Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30. ●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 107 60 Hz or 4K UHD (3840 × 2160) at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 108 ●USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 109 ● SDVoE: Software Defined Video over Ethernet (SDVoE) is a method for transmission, distribution and management AV signals using a TCP/IP Ethernet infrastructure for transport with low latency. SDVoE is commonly used in integration applications. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
  • Page 110 ●MIDI: MIDI is the abbreviation of Musical Instrument Digital Interface. As the name indicates the protocol was developed for communication between electronical musical instruments and latterly computers. MIDI instructions © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 111 Chroma signal. Colour burst is 3.58 MHz for NTSC and 4.43 MHz for PAL. ●Colour Bars: A standard test pattern of several basic colours (white, yellow, cyan, green, magenta, red, blue, and © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 112 The source device will then output the provided EDID data, ensuring proper video image quality. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
  • Page 113 Revise Upgrade steps. Aster All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
  • Page 114 Chapter 6 Support © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
