(1) VGA connector
(3) HDM dedicated management interface
(5) HDM serial port
(7) NCSI connector
Serial & DSD module
The serial & DSD module is installed in the slot on the server rear panel. The module provides two
SD slots and forms RAID 1 by default.
To avoid the waste of SD card storage space, install two SD cards that have the same storage
capacity.

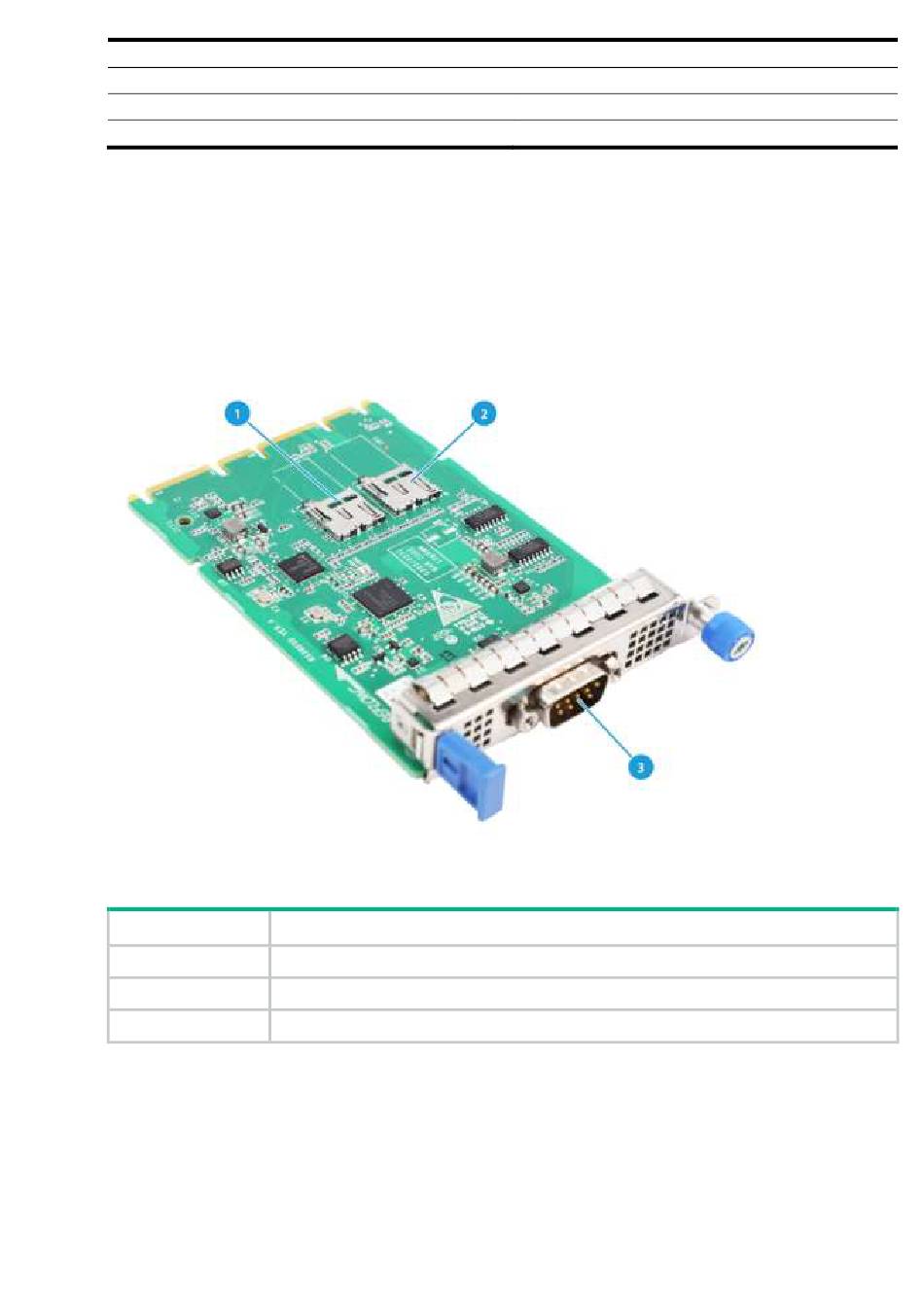

Figure 41 Serial & DSD module
Table 22 Component description
Item
1
2
3

Riser cards and PCIe modules

Typically, the PCIe modules are available in the following standard form factors:

LP—Low profile.

FHHL—Full height and half length.

FHFL—Full height and full length.
Description
SD card slot 1
SD card slot 2
Serial port
34
(2) Two USB 3.0 connectors
(4) UID LED
(6) iFIST module (optional)
