Front 8SFF SAS/SATA drive backplane

The PCA-BP-8SFF-2U-G6 8SFF SAS/SATA drive backplane can be installed at the server front to
support eight 2.5-inch SAS/SATA drives.

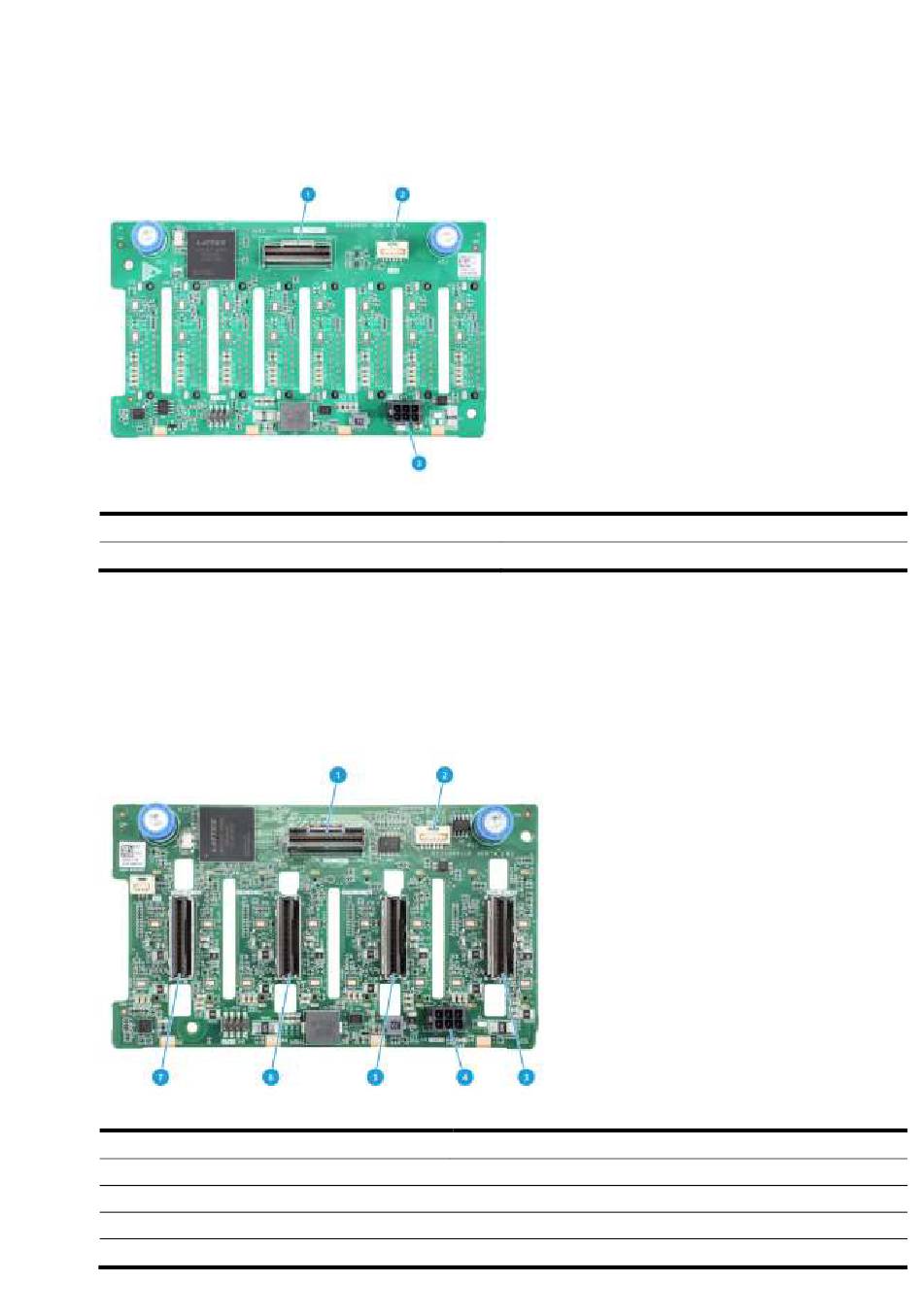

Figure 16 8SFF SAS/SATA drive backplane
(1) x8 SlimSAS connector (SAS PORT 1)
(3) Power connector (PWR)

Front 8SFF UniBay drive backplane

The PCA-BP-8UniBay-2U-G6 8SFF UniBay drive backplane can be installed at the server front to
support eight 2.5-inch SAS/SATA/NVMe drives.
Figure 17 8SFF UniBay drive backplane
(1) x8 SlimSAS connector (SAS PORT)
(3) MCIO connector B3/B4 (PCIe5.0 x8)(NVMe B3/B4)
(4) Power connector (POWER)
(5) MCIO connector B1/B2 (PCIe5.0 x8)(NVMe B1/B2)
(6) MCIO connector A3/A4 (PCIe5.0 x8)(NVMe A3/A4)
(2) AUX connector (AUX)
(2) AUX ( AUX)
