RC-1FHHL/1FHFL-R3-4U-G6

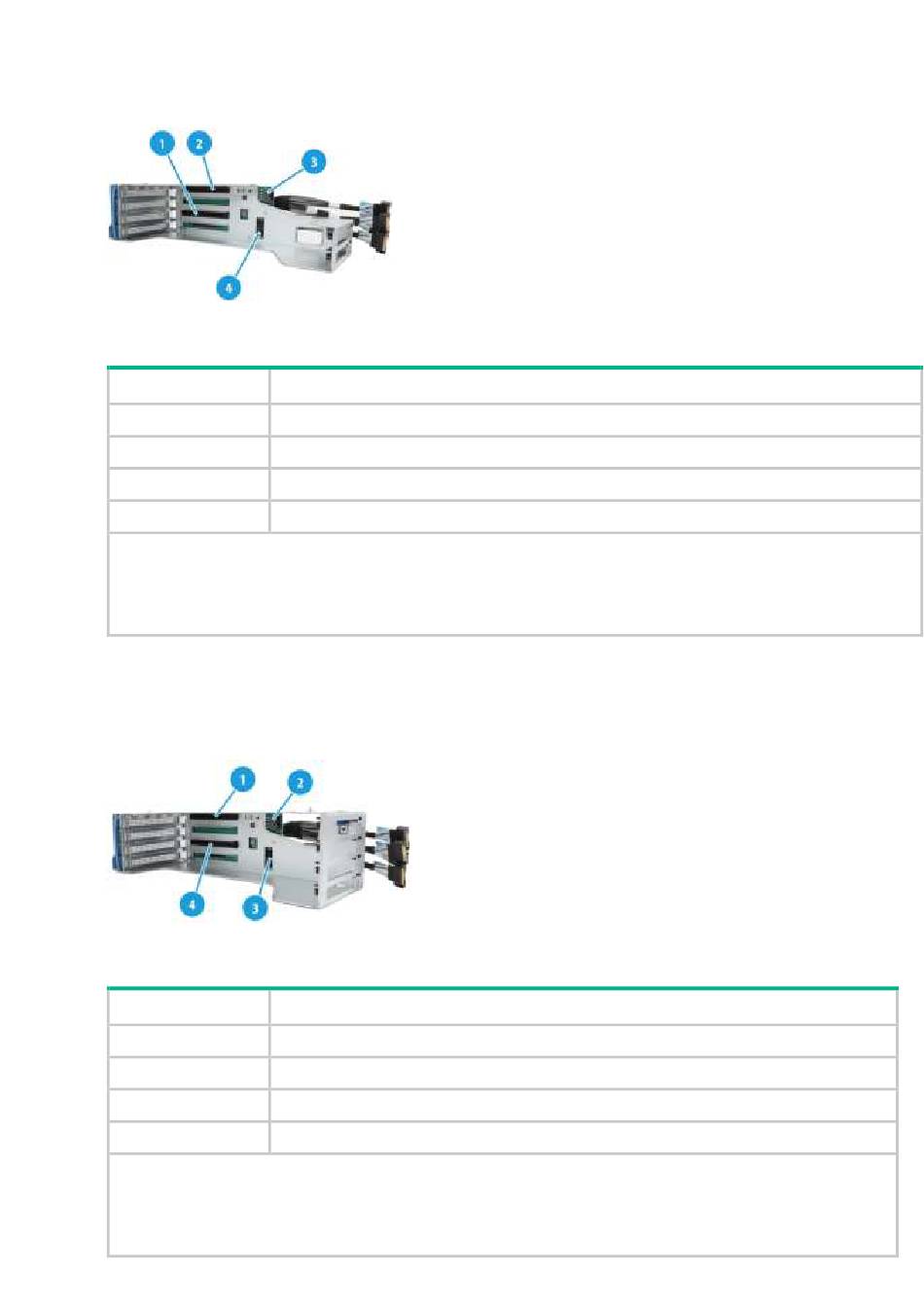

Figure 28 RC-1FHHL/1FHFL-R3-4U-G6 riser card
Table 17 RC-1FHHL/1FHFL-R3-4U-G6 riser card description
No.
1
2
3
4
PCIe5.0 x16 (8,4) description:

PCIe5.0: Fifth-generation signal speed.

x16: Connector bandwidth.

(8,4): Compatible bus bandwidth, including x8 and x4.

RC-2FHFL-R3-4U-G6

Figure 29 RC-2FHFL-R3-4U-G6 riser card
Table 18 RC-2FHFL-R3-4U-G6 riser card description
No.
1
2
3
4
PCIe5.0 x16 (8,4) description:

PCIe5.0: Fifth-generation signal speed.

x16: Connector bandwidth.

(8,4): Compatible bus bandwidth, including x8 and x4.
Description
PCIe5.0 x16 (16, 8,4) slot 18
GPU power connectors 1 and 2
AUX connector
PCIe5.0 x16 (8,4) slot 16
Description
PCIe5.0 x16 (16,8,4) slot 18
GPU power connectors 1 and 2
AUX connector
PCIe5.0 x16 (16,8,4) slot 16
