RC-4HHHL-R4-4U-G6

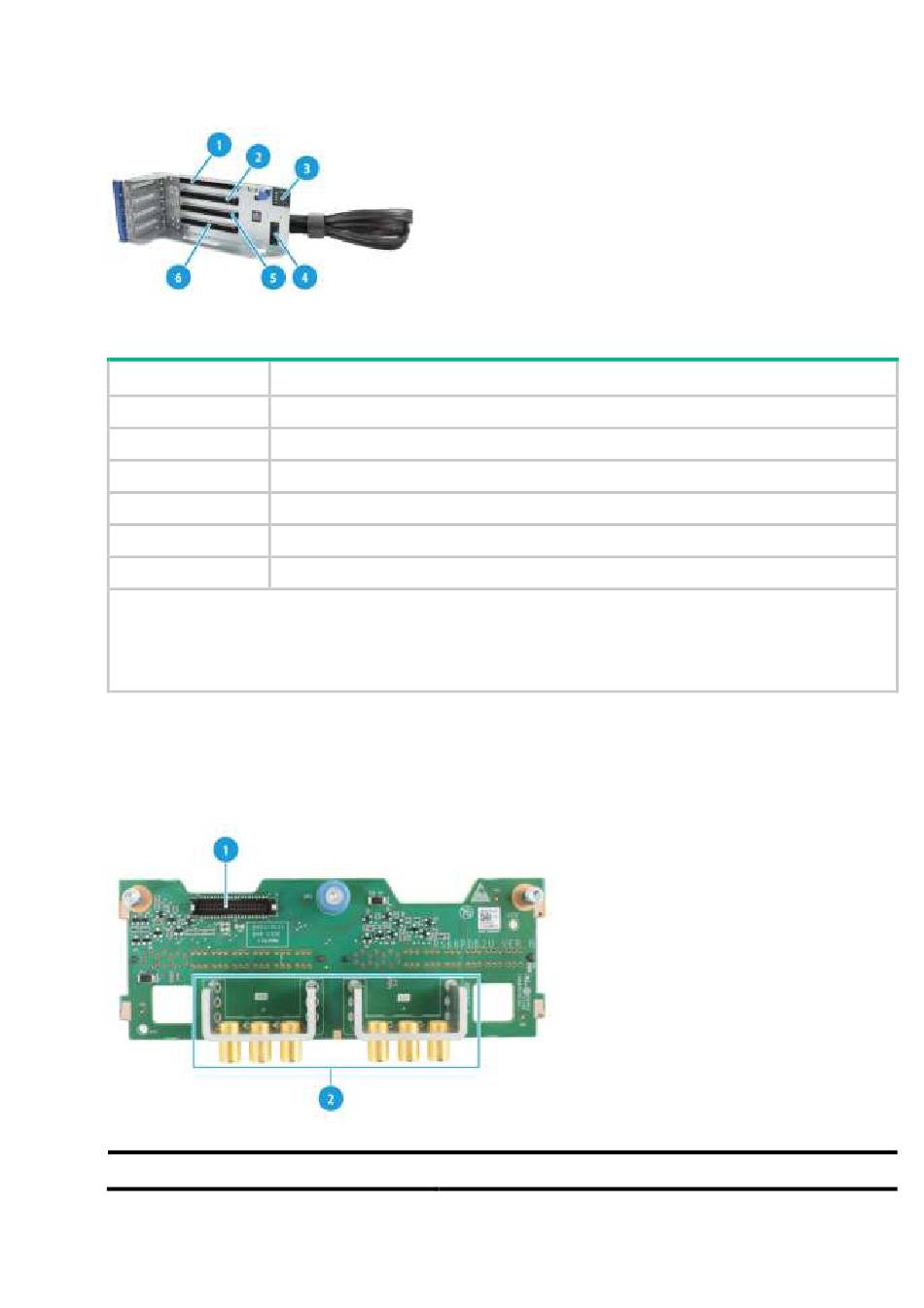

Figure 30 RC-4HHHL-R4-4U-G6 riser card
Table 19 RC-4HHHL-R4-4U-G6 riser card description
No.
1
2
3
4
5
6
PCIe5.0 x16 (8,4) description:

PCIe5.0: Fifth-generation signal speed.

x16: Connector bandwidth.

(8,4): Compatible bus bandwidth, including x8 and x4.

Power expander module

Figure 31 Power expander module
(1) Signal connector
Description
PCIe5.0 x16 (8,4) slot 22
PCIe5.0 x16 (8,4) slot 21
GPU power connector
AUX connector
PCIe5.0 x16 (8,4) slot 20
PCIe5.0 x16 (8,4) slot 19
(2) Power expander module connector
