PCIe slot

The server supports installing riser cards and rear 8E1.S drives at the server rear. The PCIe slot
numbers vary by configuration.

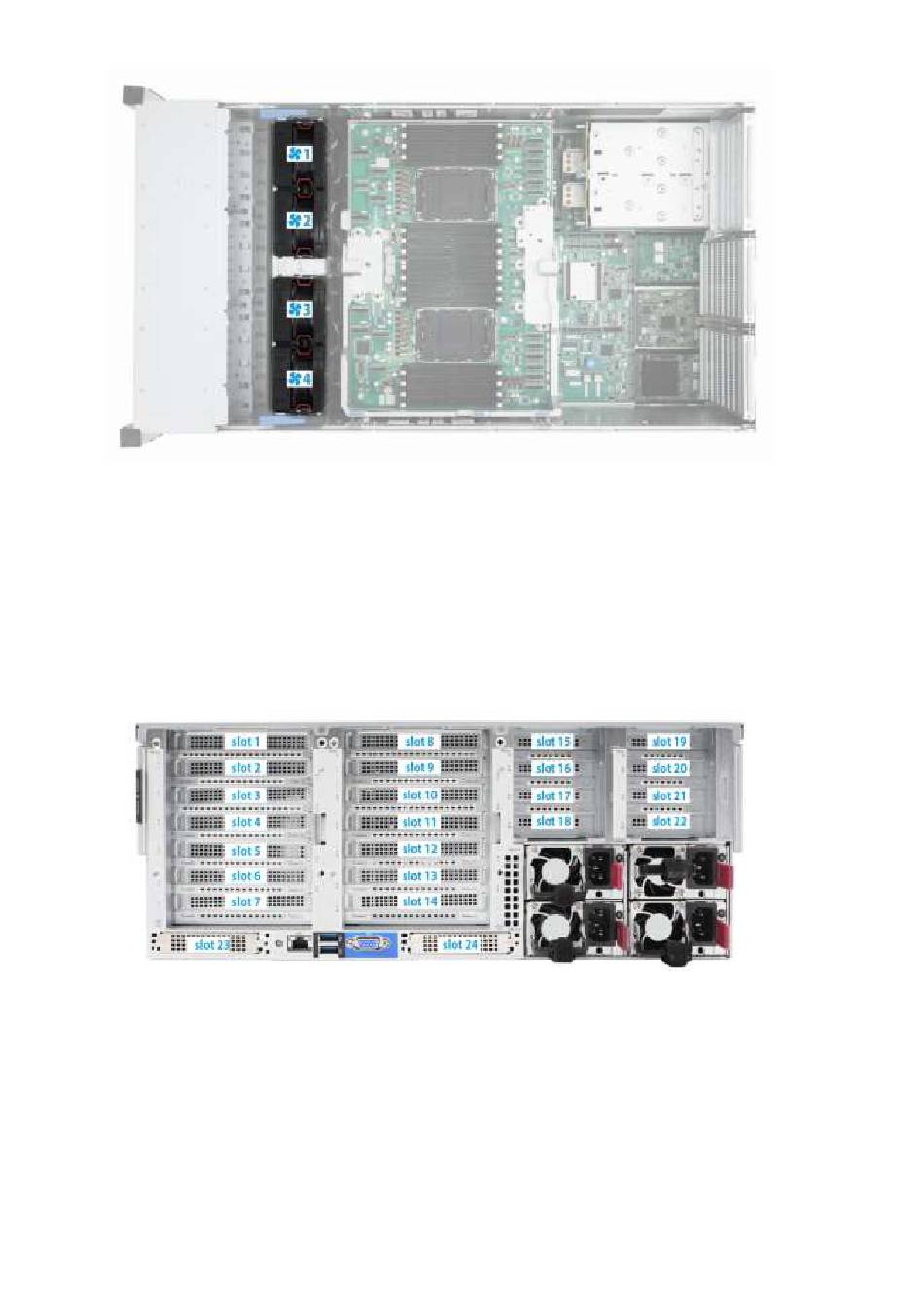

Figure 36 PCIe slot numbering when riser cards are installed at the server rear

B/D/F information

You can obtain B/D/F information by using one of the following methods:

BIOS log—Search the dumpiio keyword in the BIOS log.

UEFI shell—Execute the pci command. For information about how to execute the command,
execute the help pci command.
Figure 35 Fan module layout
