What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
•

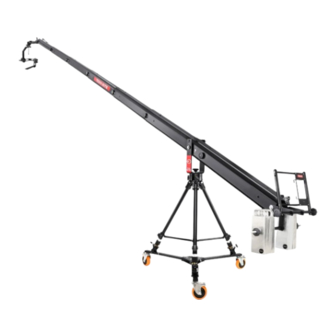

Kite-22 Telescopic Jib Arm Crane with Accessories
•
Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
•
D-33 Pro Camera Dolly
•
Gravity Robust Tripod Stand (TP-GVTY-ULT)
•
Lanc Zoom Controller (P-ZC-3DV)
•
Tools and Tool Pouch/Wrap-
•
Customized Storage cases
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Kite-22 Ultimate Package
A s s e m b l y M a n u a l
Complimentary
All rights reserved.
statutes or in writing by the Publisher.
(KITE-22-ULTIMATE)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kite-22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM Kite-22

Summary of Contents for PROAIM Kite-22

  • Page 1 What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. • Kite-22 Telescopic Jib Arm Crane with Accessories • Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3) •...
  • Page 2 First Packing Includes • Jib Sections Second Packing Includes • Jib Sections Third Packing Includes • Accessories of Jib Crane Fourth Packing Includes • Gravity Jib Stand Fifth Packing Includes • Dolly Pack Sixth Packing Includes • Spin-3 Pan-tilt Head NOTE: We send the Jib sections in two boxes.
  • Page 3 Packaging Material of Box 3: Accessories of Jib Crane Head Platform with Bolt, Shaft Collars, Washers and Nut Hub Section Joystick Controller Bracket Levelling Cable 6x Shanks for Joining Arms 2 x pins Shank Hub Mounting Turn buckle knob 6 x Pins for Joining jibs Black Velcro Complimentary Tools Pouch...
  • Page 4 Packaging Material of Box 4: Gravity Stand Ultimate Gravity Stand Bowl 13 no. Spanner 19 no. Spanner (P-RB-SP) Spreader Stopper Gravity Stand Packaging Material of Carton Box 5: Camera Dolly D-33 Pro Camera Dolly 3 x Tripod holder 1 x 3/16 L-Type Allen Key 17 no.
  • Page 5 Packaging Material of Box 6: Spin-3 (3-Axis) Motorized Pan Tilt Head (PT-SPIN-3) 15mtr Control 3mtr Adapter Cable Cable Spin-3 Joystick Controller with Cap Camera Plate Spin-3 Pan-tilt Head Pan-Tilt Mounting Plate Universal and knob Adapter 12V AC Adapter Joystick Controller Plate 1/4”...
  • Page 6 Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR! • The crane may not be assembled or operated under the influence of alcohol, drugs or any other intoxicating substances. Lack of attention while connecting the components can cause substantial damage to the equipment/operator.

  • Page 7: Table Of Contents

    INDEX Sr. No Particulars Page No. D-33 Dolly Assembly Tripod Holder Assembly LW-150 Jib Stand Assembly 9-11 Hub Mounting Assembly 11-12 Jib Section Assembly 12-14 Section 7 & Section 6 Assembly 14-15 Head Platform Mounting 15-16 Turn Buckle Mounting Levelling Cable Assembling 16-17 Joystick Controller Bracket Assembly Weight Rod Assembly...

  • Page 8: D-33 Dolly Assembly

    Kite-22 Crane Ultimate Setup Kite-22 Crane Ultimate mounting on Dolly D-33 Dolly Assembly • Loosen the side bolt of the D-33 Pro Camera Dolly using the 17mm spanner. NOTE: This dolly has various holes for flexible Tripod mounting. • Remove the bolt nut, washer and bolt.

  • Page 9: Tripod Holder Assembly

    • Tighten the Bolt nut using the 17mm spanner. • Repeat the same step to re-insert the second side Bolt. Tripod Holders Assembly • Remove the Allen bolt from the Tripod holder using a 3/16” T-Type Allen key and mount the holder on the Dolly.
  • Page 10 • Loosen the knob and extend the Tripod leg. • Now, lock it using the locking pin once it is at the desired length. • Tighten the knob. • Repeat the same step for extending the remaining Tripod legs. • Loosen the knob of the tripod holder and mount the Tripod Stand on the Dolly.

  • Page 11: Hub Mounting Assembly

    • Remove the bolt on the base of the Tripod using the 21mm spanner. • Repeat the same step to remove the second bolt. Hub Mounting Assembly • Mount the Hub Mounting on the Tripod. NOTE: The Hub Assembly has several mounting holes for attaching additional accessories like a LCD Monitor or a Joystick box.

  • Page 12: Jib Section Assembly

    • Loosen the nut bolt using the 21mm spanner and remove the Hub mounting shank. Jib Section Assembly • Insert the 2nd section into the 1st section and mount them on the Hub mounting by aligning the threads. • Insert Shank into the Hub mounting ensuring the holes of the both sections are aligned with the holes of the Hub mounting.
  • Page 13 • Now, insert the Shank into second hole of the 1st Jib section, as shown in the image. • Re-insert the plastic washer and knob from the other side. • Tighten the knob using the 4mm T-Type Allen key. • Insert 3rd section into the 2nd section by ensuring the holes are aligned.

  • Page 14: Section 7 & Section 6 Assembly

    • Tighten the shank knob using the 4mm T-Type Allen key. • Insert the locking pin into the 1st section from the top and lock it securely. • Similarly, insert the locking pin into the 2nd section from the top and lock it securely. •...

  • Page 15: Head Platform Mounting

    • Insert plastic washer and knob from the other side and tighten the knob securely. • 7th section is securely attached. • Insert locking pin into the 6th section from the top and lock it securely. Head Platform Mounting • Loosen the bolt of the Head platform and remove it.

  • Page 16: Turn Buckle Mounting

    • Insert two Shaft collars inside the jib and insert plastic washer in the center of the Jib and Head platform. • Insert plastic washer and steel washer to the other side of the long bolt. • After inserting washer, insert nut and tighten it using a 21mm spanner.

  • Page 17: Joystick Controller Bracket Assembly

    • Insert the other end of the Leveling cable into the Turn Buckle and lock the cable. • Stretch levelling cable your requirement. Joystick Controller Bracket Assembly • Attach the Joystick Controller Bracket to the Jib and insert the Shank. •...

  • Page 18: Weight Rod Assembly

    Weight Rod Assembly • Insert the Weight rod into Joystick Controller Bracket. • Now, insert the black tube to the center. • Using the same step insert the black tubes to the weight rod on both sides, as shown in the image.

  • Page 19: Spin-3 Axis Pan-Tilt Head Mounting

    • The Jib is securely mounted on the Jib stand. Kite-22 Crane Starter mounting on Dolly Spin-3 Axis Pan-tilt Head Mounting • Attach Spin-3 Pan-Tilt head to the mounting plate and insert the knob.

  • Page 20: Camera Mounting

    • Spin-3 Pan-Tilt Head is securely attached to the mounting plate. • Loosen the Spin-3 Pan-Tilt head bolt with the 4mm Allen key and detach the motor gear. • Then rotate the Pan-Tilt adjustable arm and balance it. NOTE: Ensure to detach the motor gear before rotating the Pan-Tilt head adjustable arm.

  • Page 21: Spin-3 Axis Joystick Controller Mounting

    Spin-3 Axis Joystick Controller Mounting • Loosen and remove all the bolts of the Joystick Controller plate using a screwdriver. • Now, remove the Joystick Controller plate. • Attach the Spin-3 joystick plate ensuring the holes alignment. • Now, insert the bolt and re-tighten them using the screwdriver •...

  • Page 22: Cable & Xlr Cable Assembly

    Cable & XLR Cable Assembly • Connect the female end of the Pan-tilt cable to the male end of the XLR cable. • Attach the cable's female end to the Joystick controller. • Attach the AC Adapter's female end to the Joystick controller.
  • Page 23 • Speed Controller - The Speed Controller adjusts the speed of pan tilt & Dutch roll based on the requirement of the shot. • Dead Spot - The dead spot prevents the head from stopping suddenly with a jerk. • Damping Control - Damping control prevents the Head from stopping with a jerk enabling you to achieve...

  • Page 24: Screen Mounting

    Screen Mounting • Remove the Base-100 and mount the Screen (Not Included). • After mounting the screen use a screwdriver (Not Included) to tighten its bolt. • Loosen or tighten the bolt using a 4mm Allen key to adjust the positioning of the screen. Shorting the Length of Jib •...
  • Page 25 • Now, remove the shank. • Remove the nut bolt of the Hub section's shank using the 21mm spanner and remove the shank, as shown in the image. • Slide 2nd Section into 1st Section and insert the shank. • Now, align the second hole of section 2 with the first hole of section 1 and insert the shank.
  • Page 26 NOTE: To shorten the length of the jib, insert 2nd section into 1st section , 3rd section into section, 4th section into 3rd section, 5th Section into 4th section, 6th section into 5th section, and 7th section into 6th section. Different Shooting lengths 24.5 ft 22.3 ft...

  • Page 27: Balancing

    Balancing Tips Follow these steps to balance the head:- • Mark this point on the side of the camera with chalk or tape. • Turn the unit on and move the tilt control until the camera plate is vertical. • Loosen the two screws holding the tilt motor. (DO NOT REMOVE) •...

  • Page 28: Functioning Of Spin-3 Axis Joystick Controller

    Functioning of spin-3 Axis Joystick Controller The Joystick is a 3-axis Variable Speed Servo Controller. The further you move in one direction, the faster the output to that motor. This will be a little tricky at first, but little practice will improve your success.
  • Page 29 TILT DIRECTION SWITCH When the head shifts from a Jib to a tripod or vice versa, it needs to be a reversal of direction as the head's location will be inverted. We can immediately reverse the direction by switching "on" the tilt direction switch.
  • Page 30 All joysticks are linear, meaning each degree of stick's movement correlates to the output on the 12-volt PROAIM SR. PAN-TILT HEAD half deflection of the joystick indicates approximately 6 volts sent to the mo- tors. But with the advent of digital technology, we can now control the taper of the joystick, making it log- arithmic.

  • Page 31: Balancing Tips

    Balancing Tips The sections collapse into each other 1. 24.5’ Jib Weights required for balancing only Jib (without camera & Pan Tilt) is: 55Kg (121.5 lbs) If the camera weight is 1kg, the jib is balanced with 55+5kg=60kg If the camera weight is 2kg the jib is balanced with 55+10kg=65kg 2.
  • Page 32 YOUR PROAIM KITE-22 CAMERA CRANE ULTIMATE PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period, we will repair it without charge for labor or parts. The warranty doesn’t cover transportation costs, nor does it cover a product subjected to misuse or accidental damage.
