What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
•

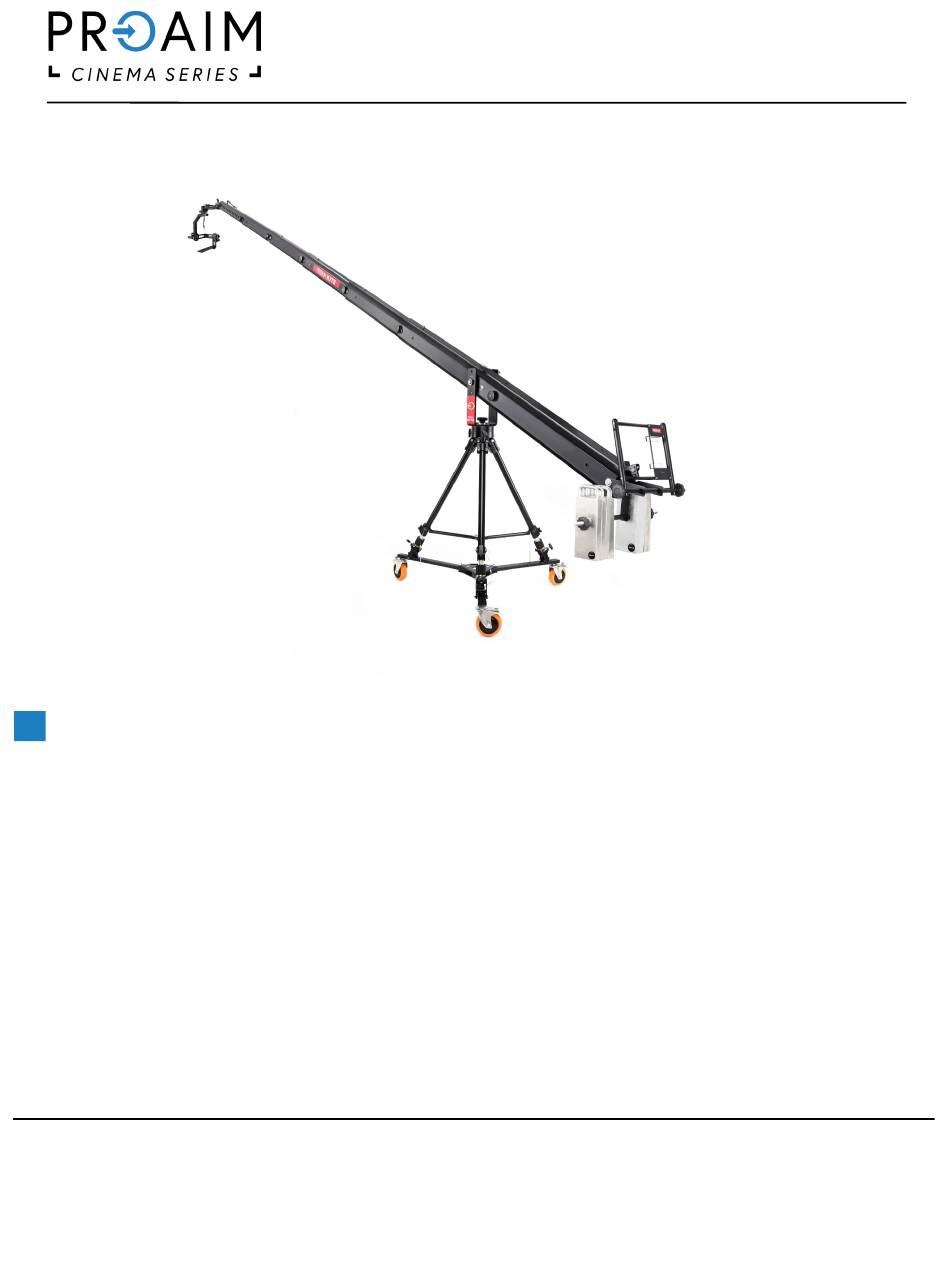

Kite-22 Telescopic Jib Arm Crane with Accessories
•
Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
•
D-33 Pro Camera Dolly
•
Gravity Robust Tripod Stand (TP-GVTY-ULT)
•
Lanc Zoom Controller (P-ZC-3DV)
•
Tools and Tool Pouch/Wrap-
•
Customized Storage cases
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Kite-22 Ultimate Package
A s s e m b l y M a n u a l
Complimentary
All rights reserved.
statutes or in writing by the Publisher.
(KITE-22-ULTIMATE)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CINEMA Kite-22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM CINEMA Kite-22

Summary of Contents for PROAIM CINEMA Kite-22

  • Page 1 Kite-22 Ultimate Package (KITE-22-ULTIMATE) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. •...
  • Page 2 First Packing • Jib Sections Second Packing • Jib Sections Third Packing • Accessories of Jib Crane Fourth Packing • Gravity Jib Stand Fifth Packing • Dolly Pack Sixth Packing • Sr Pan-tilt Head NOTE: We send the Jib sections in two boxes. One box has the sections with pipe packing, and the other cardboard box has the rest.
  • Page 3 Packaging Material of Box 3: Accessories of Jib Crane Head Platform with Bolt, Shaft Collars, Washers and Nut Joystick Controller Bracket Hub Section Levelling Cable 6 x Shanks for Joining Arms 2 x pins Shank Hub Mounting Turn buckle knob 6 x Pins for Joining jibs 7 x Black Velcro Complimentary...
  • Page 4 Packaging Material of Box 4: Gravity Robust Tripod Stand (TP-GVTY-ULT) Ultimate Gravity Stand Bowl Gravity Robust Tripod Stand Packaging Material of Carton Box 5: Camera Dolly D-33 Pro Camera Dolly 3 x Tripod holder 1 x 3/16” L-Type Allen Key 17mm Spanner...
  • Page 5 Packaging Material of Box 6: Spin-3 (3-Axis) Motorized Pan Tilt Head (PT-SPIN-3) 15mtr Control 3mtr Adapter Cable Cable Spin-3 Joystick Controller with Cap Camera Plate Spin-3 Pan-tilt Head Pan-Tilt Mounting Plate Universal and knob Adapter 12V AC Adapter Joystick Controller Plate 1/4”...

  • Page 6: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THE FOLLOWING CAUTIONARY POINTS BEFORE USING THE JIB TO PREVENT DAMAGE TO THE EQUIPMENT AND THE OPERATOR! • The crane may not be assembled or operated under the influence of alcohol, drugs, or any other intoxicating substances.

  • Page 7: Table Of Contents

    INBOX Sr. No Particulars Page No. D-33 Dolly Assembly Tripod Holder Assembly Gravity Robust Tripod Stand 9-10 Assembly Gravity Robust Tripod Stand Mounting on Dolly Hub Mounting Assembly 11-12 Jib Section Assembly 12-14 Section 7 & Section 6 Assembly 14-15 Head Platform Mounting 15-16 Turn Buckle Mounting...

  • Page 8: D-33 Dolly Assembly

    Kite-22 Crane Ultimate Setup Kite-22 Crane Ultimate Mounting on Dolly D-33 Dolly Assembly • Loosen the side bolt of the D-33 Pro Camera Dolly using the 17mm spanner. NOTE: This dolly has various holes for flexible Tripod mounting. • Remove the Bolt nut, washer and Bolt. •...

  • Page 9: Tripod Holder Assembly

    • Tighten the Bolt nut using the 17mm spanner. • Repeat the same step to re-insert the second side Bolt. NOTE: The centre bolt will not be removed to open the D-33 Dolly. Tripod Holders Assembly • Remove the Allen bolt from the Tripod holder using a 3/16”...

  • Page 10: Gravity Robust Tripod Stand Mounting On Dolly

    • Now, remove all the rubber feet from the Stand. • Loosen and remove the Allen bolt using the screw driver. • Remove the plastic stopper as well. • Repeat the same process to remove the plastic stoppers from the other two Stand legs.

  • Page 11: Hub Mounting Assembly

    Hub Mounting Assembly • Firstly, place Ultimate Gravity Stand Bowl top of the Stand. Then tighten the provided knob. • Mount the Hub Mounting on the Tripod. NOTE: The Hub Assembly has several mounting holes for attaching additional accessories like a LCD Monitor or a Joystick box.

  • Page 12: Jib Section Assembly

    • Loosen the nut bolt using the 21mm spanner and remove the Hub mounting shank. Jib Section Assembly • Insert the 2nd section into the 1st section and mount them on the Hub mounting by aligning the threads. • Insert Shank into the Hub mounting ensuring the holes of the both sections are aligned with the holes of the Hub mounting.
  • Page 13 • Now, insert the Shank into second hole of the 1st Jib section, as shown in the image. • Re-insert the plastic washer and knob from the other side. • Tighten the knob using the 4mm T-Type Allen key. • Insert 3rd section into the 2nd section by ensuring the holes are aligned.

  • Page 14: Section 7 & Section 6 Assembly

    • Tighten the shank knob using the 4mm T-Type Allen key. • Insert the locking pin into the 1st section from the top and lock it securely. • Similarly, insert the locking pin into the 2nd section from the top and lock it securely. •...

  • Page 15: Head Platform Mounting

    • Insert plastic washer and knob from the other side and tighten the knob securely. • 7th section is securely attached. • Insert locking pin into the 6th section from the top and lock it securely. • Attach 6th section with 5th, 5th section with 4th, 4th section with 3rd, 3rd section with 2nd and 2nd section with the 1st.

  • Page 16: Turn Buckle Mounting

    • Insert two Shaft collars inside the jib and insert plastic washer in the center of Jib and Head platform. • Insert plastic washer and steel washer to the other side of the long bolt. • After inserting washer, insert nut and tighten it using a 21mm spanner.
  • Page 17 • Insert the other end of the Leveling cable into the Turn Buckle and lock the cable. • Stretch levelling cable your requirement. Joystick Controller Bracket Assembly • Attach the Joystick Controller Bracket to the Jib and insert the Shank. •...

  • Page 18: Joystick Controller Bracket Assembly

    Weight Rod Assembly • Insert the Weight rod into Joystick Controller Bracket. • Now, insert the black tube to the center. • Using the same step insert the black tubes to the weight rod on both sides, as shown in the image.

  • Page 19: Spin-3 Axis Pan-Tilt Head Mounting

    • The Jib is securely mounted on the stand. Kite-22 Crane Ultimate Mounting on Dolly Spin-3 Axis Pan-tilt Head Mounting • Attach Spin-3 Pan-Tilt head to the mounting plate and insert the knob.

  • Page 20: Camera Mounting

    • Spin-3 Pan-Tilt Head is securely attached to the mounting plate. • Loosen the Spin-3 Pan-Tilt head bolt with the 4mm Allen key and detach the motor gear. • Then rotate the Pan-Tilt adjustable arm and balance it. NOTE: Ensure to detach the motor gear before rotating the Pan-Tilt head adjustable arm.

  • Page 21: Spin-3 Axis Joystick Controller Mounting

    Spin-3 Axis Joystick Controller Mounting • Loosen and remove all the bolts of the Joystick Controller plate using a screwdriver. • Now, remove the Joystick Controller plate. • Attach the Spin-3 joystick plate ensuring the holes alignment. • Now, insert the bolt and re-tighten them using the screwdriver.

  • Page 22: Cable & Xlr Cable Assembly

    Cable & XLR Cable Assembly • Connect the female end of the Pan-tilt cable to the male end of the XLR cable. • Attach the cable's female end to the Joystick controller. • Attach the AC Adapter's female end to the Joystick controller.
  • Page 23 • Speed Controller - The Speed Controller adjusts the speed of pan tilt & Dutch roll based on the requirement of the shot. • Dead Spot - The dead spot prevents the head from stopping suddenly with a jerk. • Damping Control - Damping control prevents the Head from stopping with a jerk enabling you to achieve...

  • Page 24: Screen Mounting

    Screen Mounting • Remove the Base-100 and mount the Screen (Not Included). • After mounting the screen use a screwdriver (Not Included) to tighten its bolt. • Loosen or tighten the bolt using a 4mm Allen key to adjust the positioning of the screen. Shorting the Length of Jib •...
  • Page 25 • Now, remove the shank. • Remove the nut bolt of the Hub section's shank using the 21mm spanner and remove the shank, as shown in the image. • Slide 2nd Section into 1st Section and insert the shank. • Now, align the second hole of section 2 with the first hole of section 1 and insert the shank.
  • Page 26 NOTE: To shorten the length of the jib, insert 2nd section into 1st section , 3rd section into section, 4th section into 3rd section, 5th Section into 4th section, 6th section into 5th section, and 7th section into 6th section. Different Shooting lengths 24.5 ft 22.3 ft...

  • Page 27: Balancing

    Balancing When you're balancing a camera on a motorized 3-axis pan-tilt head with a camera, it's often necessary to disengage the motors to ensure a precise balance without any motor resistance. Follow these steps to balance the setup: 1. Disengage Motors: Turn off or disengage the motors of the pan-tilt head system.
  • Page 28 8. Recheck Balance in All Axes Once the camera is adjusted on the tilt, pan, and roll axes, recheck each axis by manually moving the camera: Tilt the camera up and down: The camera should stay in place without falling forward or backward. Roll the camera left and right: The camera should stay level and not tilt to either side.

  • Page 29: Balancing Tips

    Balancing Tips The sections collapse into each other 1. 24.5’ Jib Weights required for balancing only Jib (without camera & Pan Tilt) is: 55Kg (121.5 lbs) If the camera weight is 1kg, the jib is balanced with 55+5kg=60kg If the camera weight is 2kg the jib is balanced with 55+10kg=65kg 2.
  • Page 30 YOUR PROAIM KITE-22 CAMERA CRANE ULTIMATE PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
